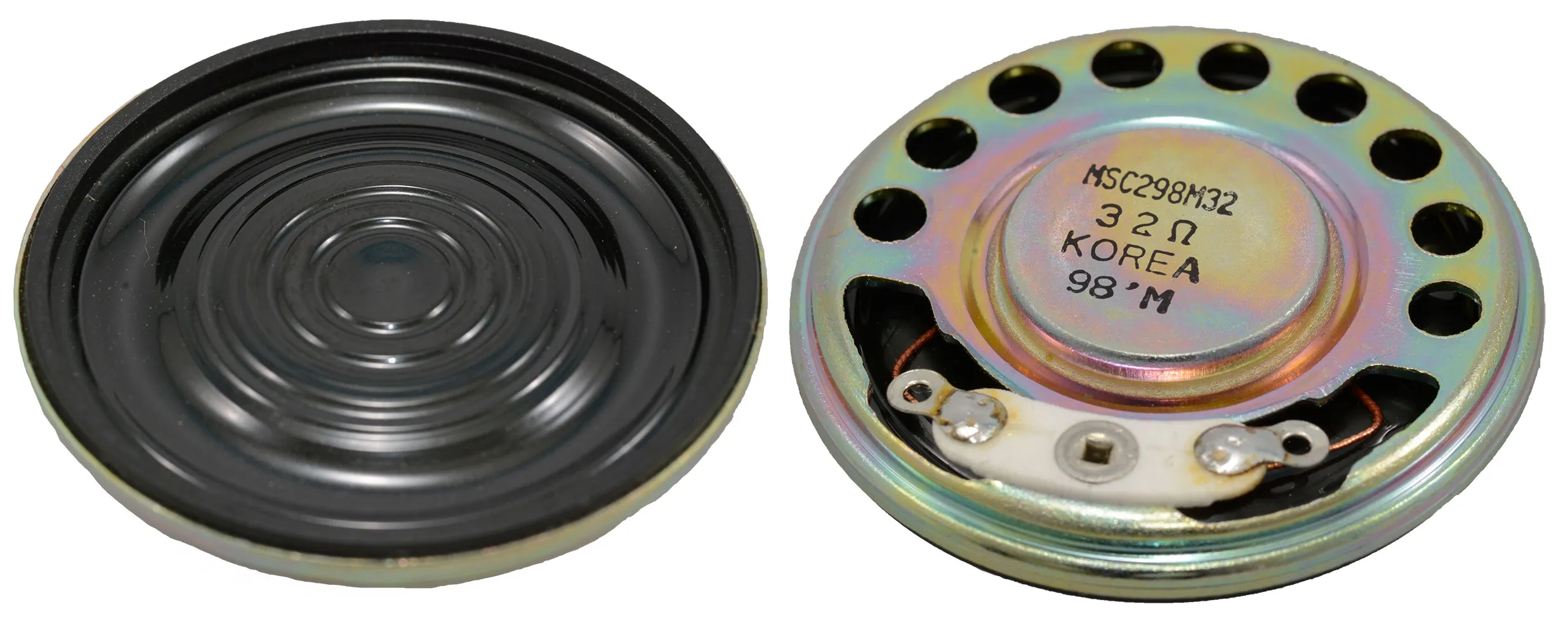

32 Ohm Round Ferrite Speaker with Mylar Cone

Specifications:

  • Shape: round
  • Diameter: 1.6" x 0.26"H
  • Impedance: 32Ω
  • Power: 0.1 W (nom.); 0.2 W (max.)
  • Frequency range: 480 - 6000 Hz
  • Sound output: 97 dB
  • Mylar diaphragm
  • Magnet size: 0.69" diameter x 0.10"
  • Connection: Solder lugs

Dimensions & Appearance

Depth:0.26 in.
Diameter:1.6 in.
Width:N/A
Length:N/A

Input

Nominal Input Power (W):0.1
Input Power (max) (W):0.2

Output

Output:97 dB

Features

Magnet Size (Diameter x H) (inches):0.69 x 0.10
Impedance:32 Ohm
Termination Method:Solderable Lug
Frequency Range:480 Hz to 6000 Hz
,
