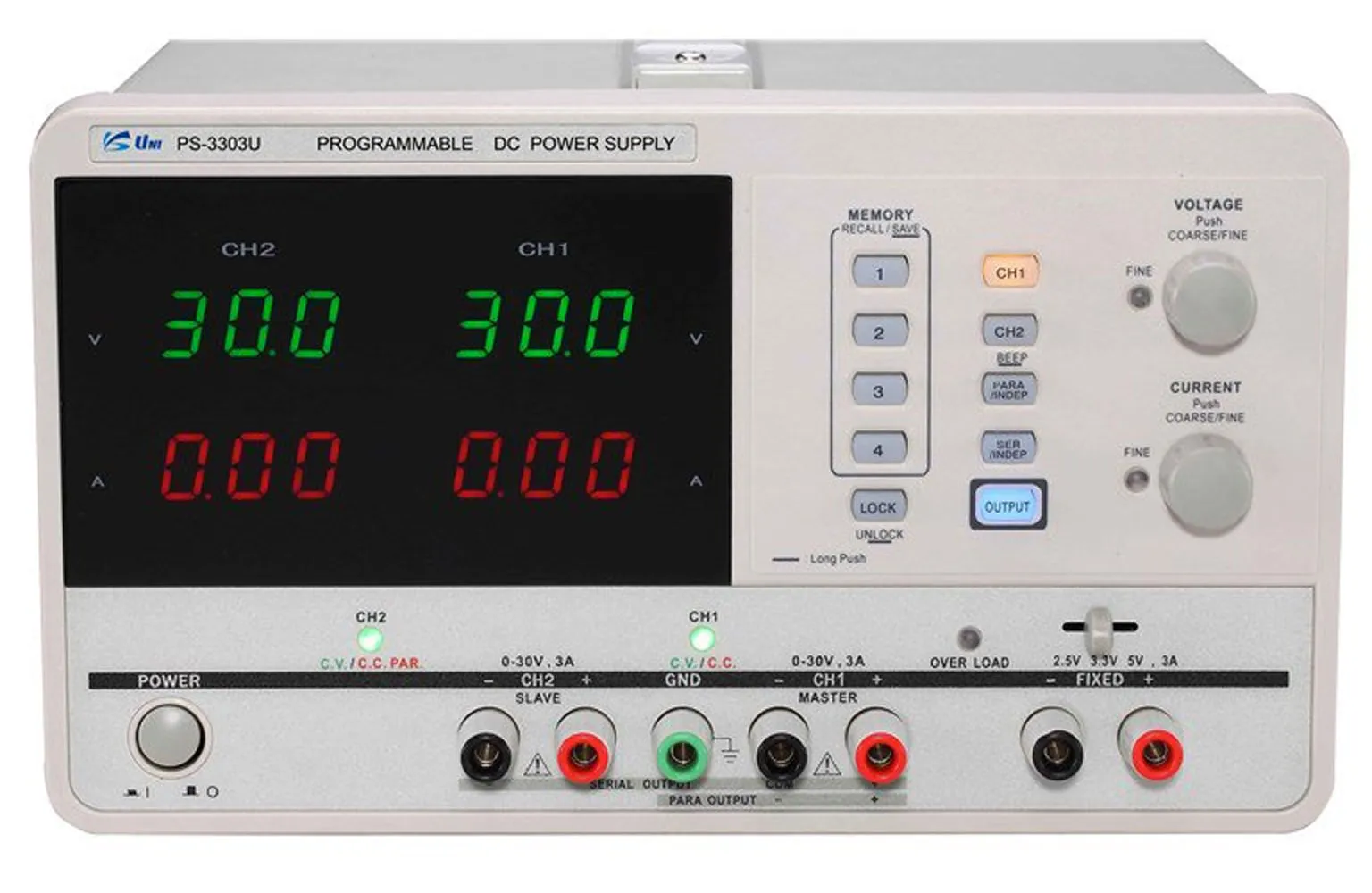

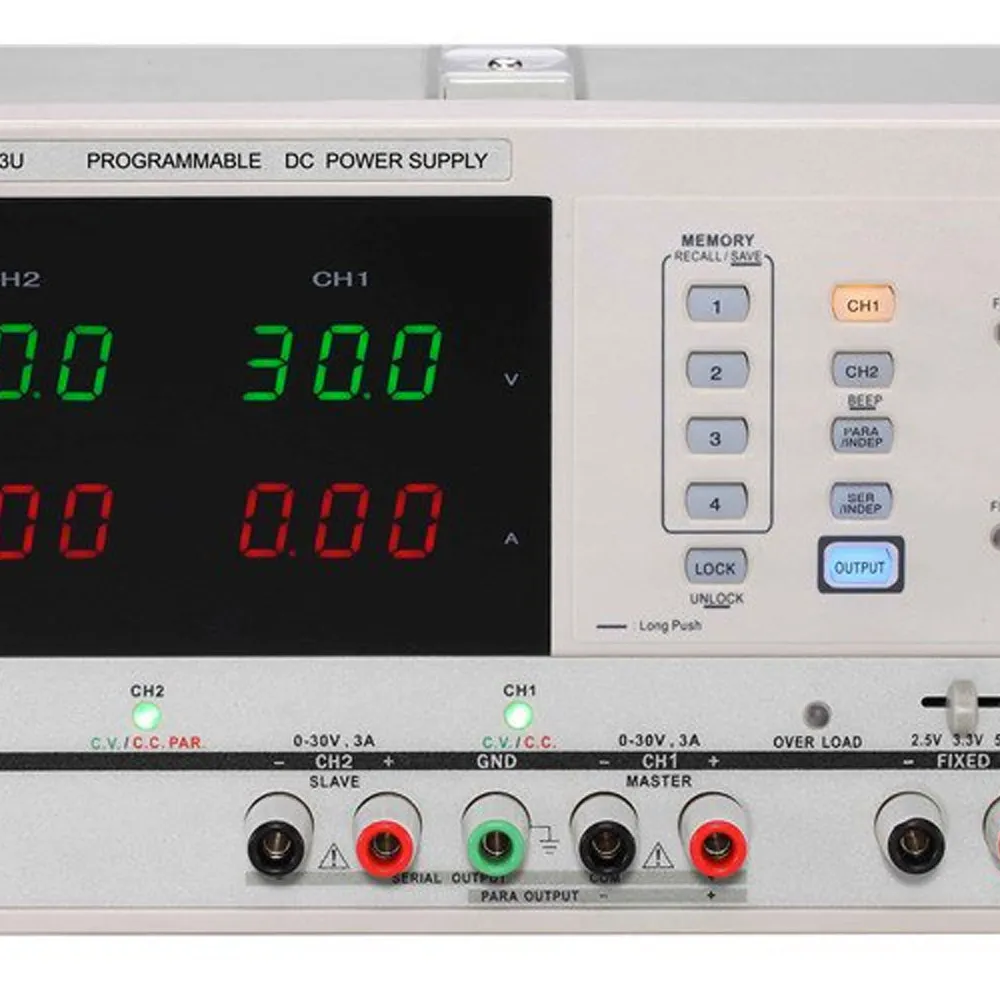

315W Triple Output AC/DC Switching Benchtop Power Supply


Channel 1: 0-30 Volts @ 5 Amps
Channel 2: 0-30 Volts @ 5 Amps
Channel 3: 2.5/3.3/5 Volts selectable @ 3 Amps

Features:
  • Two independent adjustable outputs; One fixed output
  • USB interface
  • Minimum resolution: 100mV/10mA
  • 4 sets of panel settings save & recall
  • Panel lock function, output standby function
  • Preset voltage, current and password
  • Constant voltage, constant current, low ripple and noise, low temperature drift
  • Tracking parallel and tracking serial to be set inside the instrument
  • Protection: Over-voltage, over-current, overload, over-temperature, short-circuit, current limiting, reverse-polarity
  • Size: 11.8"W x 8.66"D x 5.83"H (300mm(W) x 220mm(D) x 148mm (H))
  • Weight: 22 lbs. (10kg)

    • Product Identification

    Product Type:Benchtop Power Supply

    Compliance

    RoHS Status:Undefined

    Dimensions & Appearance

    Weight:17 lbs.
    Depth:8.7 in.
    Width:11.8 in.
    Height:5.8 in.

    Output

    Number of Outputs:3
    Output Connector Type:Banana Jacks

    Features

    Type of Displays:Digital LED
    Power Rating:315 W
    ,
