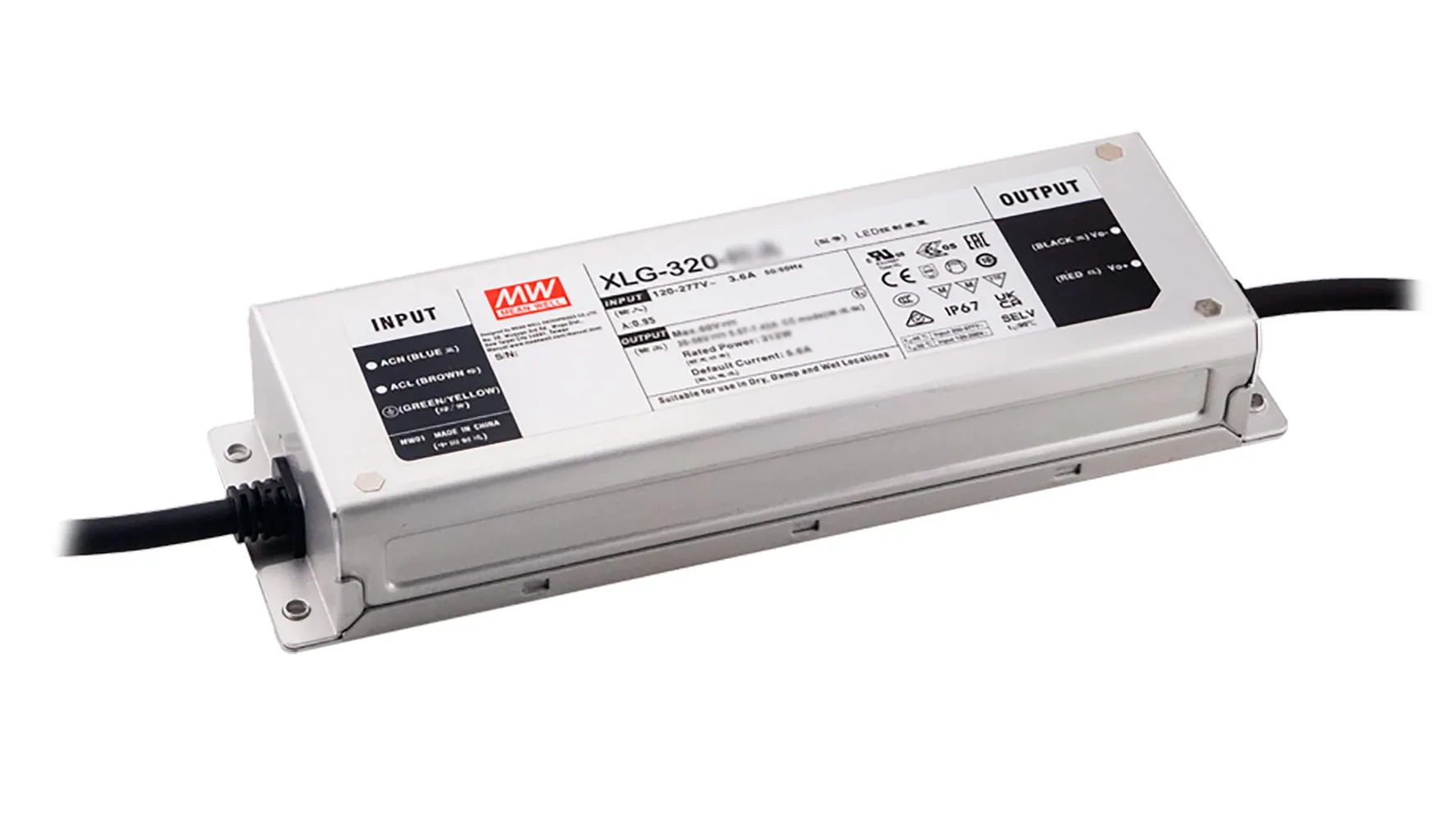

315W Constant Power Mode LED Driver 1400mA 150V to 300V IP67 Output Adjustable
Find out more about MEAN WELL power solutions for outdoor lighting.Features
- Model A: Output constant power adjustable via built-in Io potentiometer
- Wide input range 100-305 VAC (Class I)
- Full power output at 75-100% constant power mode operation
- Built-in active PFC function
- Surge protection with 6KV/4KV
- Protection Functions: OLP, SCP, OVP, OTP
- Metal case with IP67 rating, suitable for outdoor installations
- Typical lifetime >50,000 hours and 5-year warranty
Specifications
- Default Output Current: 1400 mA
- Constant Current Region: 150 to 300 VDC
- Rated Power: 315 W
- Full Power Current Range: 1050 to 1400 mA
- Current Adjustment Range: 500 to 1400 mA
- Input Voltage Range: 100 to 305 VAC @ 47 to 63 Hz; 3A (120VAC)
- Efficiency: 94.5%
- Agency Approvals: UL, CUL, CB, CE, EN, EAC, ENEC, CCC, UKCA, C-Tick, SELV
- Size: 9.69"L x 3.03"W x 1.56"H
Applications
- Street lighting
- Bay lighting
- Stage lighting
- Floodlights
- Fishing lighting
- Horticulture lighting
- Stadium lighting
- DMX power supply
- Type "HL" for use in Class I, Division 2 locations
Product Identification
Product Type:Auto Switching SMPS
Manufacturer Series:XLG-320
Compliance
Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, ENEC, SELV, UKCA, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.56 in.
Width:3.03 in.
Length:9.69 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:3 A
Output
Number of Outputs:1
Output Current (Channel 1):1.40 A
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):150 VDC to 300 VDC
Output Voltage:See Output Range
Output Current:1.40 A
Output Range:150 VDC to 300 VDC
Features
PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:94.5%
Power Rating:315 W
