312W Constant Power Mode LED Driver with DALI-2 Dimming 5600mA 30-56VDC
Features
- Wide input range 100-305 VAC (Class I)
- Full power output at 70-100% Constant power mode operation
- Metal housing design with functional ground
- Built-in active PFC function
- Class 2 power unit
- IP67 rating for indoor or outdoor installations
- Surge protection with 6KV/4KV
- DALI-2 dimming with minimum level 8%
- Typical lifetime > 50,000 hours
- Protections: Short circuit, over temperature
- 5-year warranty
Overview

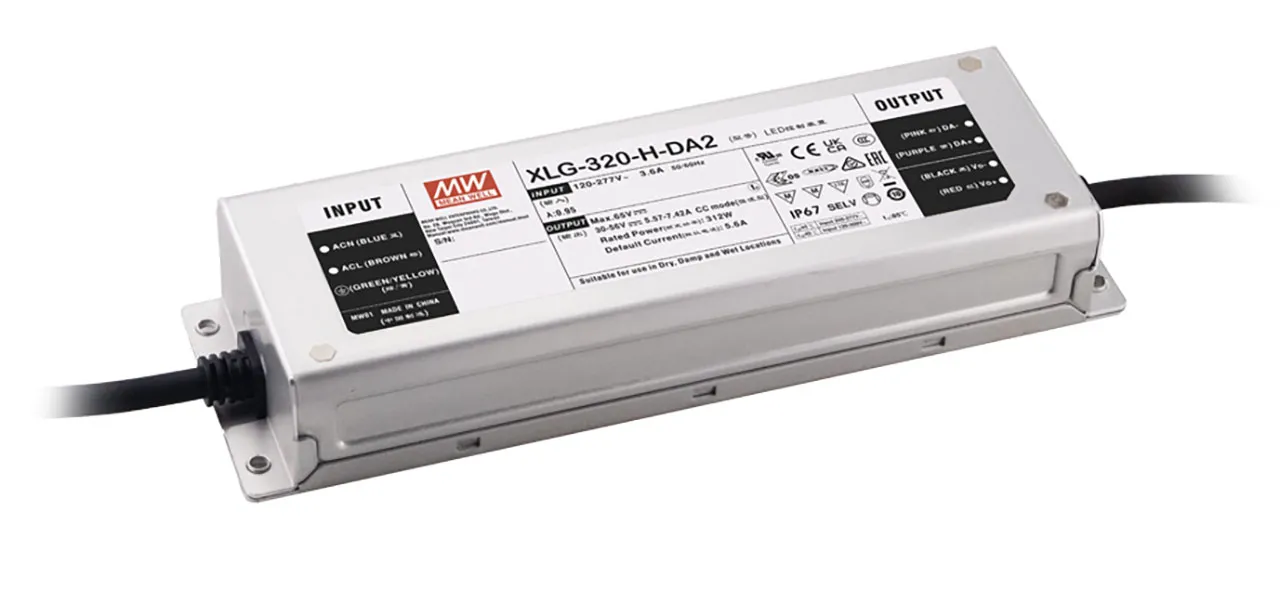

The XLG-320-DA2 series is a 312-watt AC/DC LED driver featuring the constant power mode output with DALI-2 dimming. It operates from 100 to 305 VAC. Thanks to the high efficiency with the fanless design, the entire series can operate between -40C and 85C wide case temperature range with air convection. The metal housing design and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.
The XLG-320-DA2 has an innovative environment-adaptive capability allowing this series to reliably light on the LEDs for all kinds of application environments in almost any place that might install LED luminaires in the world. This series also complies with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Technical Specifications
- Rated Output Current: 5600 mA
- Rated Output Power: 312 W
- Constant Current Region: 30 VDC to 56 VDC
- Full Power Current Range: 5570 mA to 7420 mA
- Open Circuit Voltage: 65 VDC
- Current Adjustment Range (via built-in pot): 2800 mA to 7420 mA
Applications
- Street lighting
- Stage lighting
- Horticulture lighting
- Fishing lighting
- Floodlight lighting
- Bay lighting
- Type "HL" for use in Class I, Division 2 hazardous (classified) location
