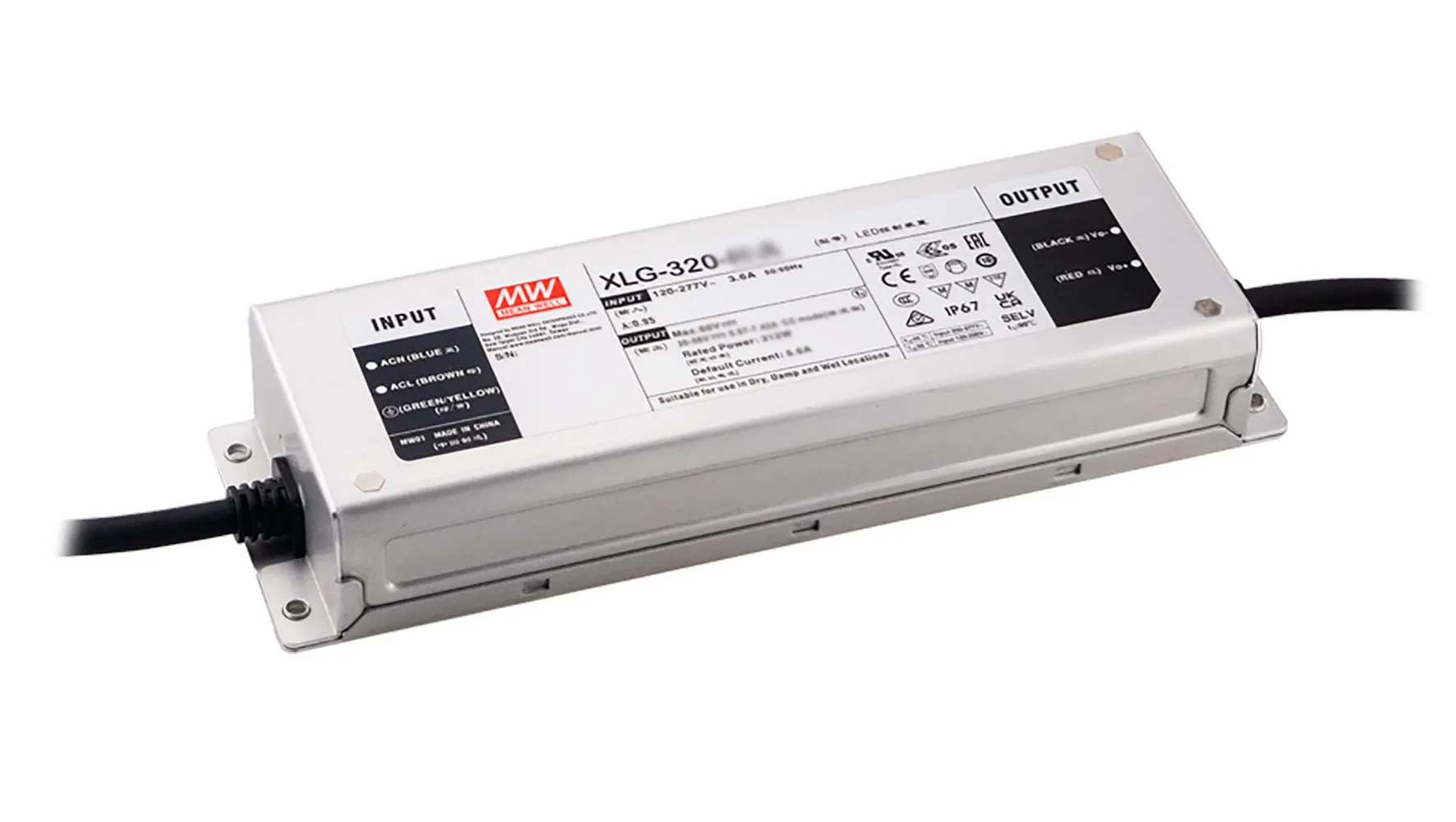

310W Constant Power Mode LED Driver 2800mA 74V to 148V IP67 Output Adjustable and 3-in-1 Dimming

Find out more about MEAN WELL power solutions for outdoor lighting.

Features

  • Model AB: Output constant power adjustable via built-in Io potentiometer + 3-in-1 dimming function (0-10 VDC, 10 V PWM signal and resistance)
  • 3 in 1 dimming function (Dim-to-off and Isolation design)
  • Wide input range 100-305 VAC (Class I)
  • Full power output at 75-100% constant power mode operation
  • Built-in active PFC function
  • Surge protection with 6KV/4KV
  • Protection Functions: OLP, SCP, OVP, OTP
  • Metal case with IP67 rating, suitable for outdoor installations
  • Typical lifetime >50,000 hours and 5-year warranty

Specifications

  • Default Output Current: 2800 mA
  • Constant Current Region: 74 to 148 VDC
  • Rated Power: 310.8 W
  • Full Power Current Range: 2100 to 2800 mA
  • Current Adjustment Range: 1050 to 2800 mA
  • Input Voltage Range: 100 to 305 VAC @ 47 to 63 Hz; 3A (120VAC)
  • Efficiency: 93.5%
  • Agency Approvals: UL, CUL, CB, CE, EN, EAC, ENEC, CCC, UKCA, C-Tick, SELV
  • Size: 9.69"L x 3.03"W x 1.56"H

Applications

  • Street lighting
  • Bay lighting
  • Stage lighting
  • Floodlights
  • Fishing lighting
  • Horticulture lighting
  • Stadium lighting
  • DMX power supply
  • Type "HL" for use in Class I, Division 2 locations

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:XLG-320

Compliance

Agency Approvals: CB, CCC, CE, C-TICK, CUL, EAC, EN, ENEC, SELV, UKCA, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.56 in.
Width:3.03 in.
Length:9.69 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:3 A

Output

Number of Outputs:1
Output Voltage (Channel 1):75 VDC to 148 VDC
Output Connector Type:Stripped and Tinned
Output Current (Channel 1):2.80 A
Output Voltage:See Output Range
Output Range:75 VDC to 148 VDC
Output Current:2.80 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:93.5%
Power Rating:310.8 W
,
