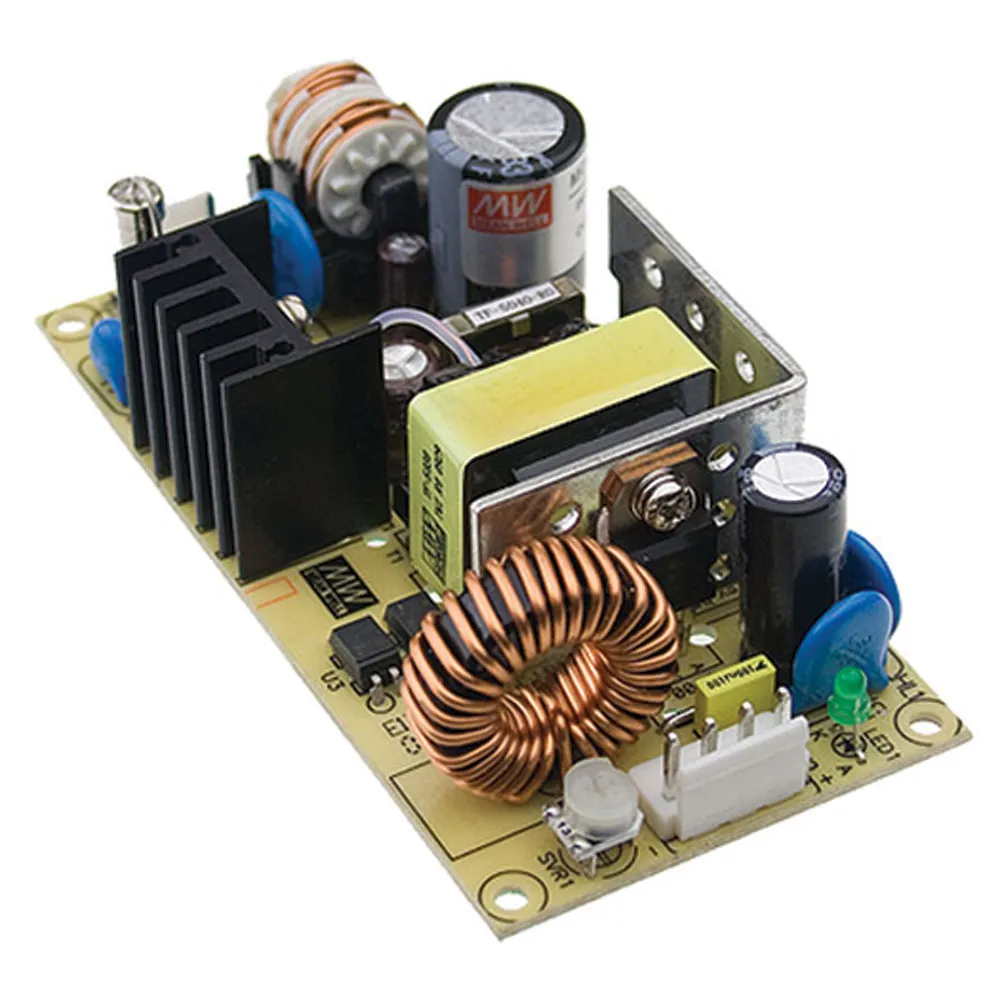

30W Single Output Open-Frame DC-DC Converter


Output: 24 Volts @ 1.25 Amps

Features:

  • Input voltage range: 36-72VDC
  • 2:1 wide input range
  • Efficiency: 83%
  • Protections: Short circuit / Overload / Over voltage / Reverse polarity
  • Cooling by free air convection
  • 1500VAC I/O isolation
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • Size: 4.0"L x 2.0"W x 1.2"H
  • Weight: 0.33 lbs.

    • Product Identification

    Product Type:DC-DC Single Output Switching Power Supply SMPS
    Manufacturer Series:PSD-30

    Compliance

    Agency Approvals: CE, EAC, EN, CB, CB, CE, EN, EAC

    Dimensions & Appearance

    Color:a, n, N/A
    Height:1.2 in.
    Width:2 in.
    Length:4 in.
    Mounting:Chassis

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Voltage:48 VDC
    Input Voltage Range:36 VDC to 72 VDC
    Maximum Input Current:1.1 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B4P-VH-B or equiv.
    Output Connector Diameters:N/A
    Output Voltage:24 VDC
    Output Current:1.25 A

    Features

    Pins:7
    Efficiency:83%
    Power Rating:30 W
    ,
