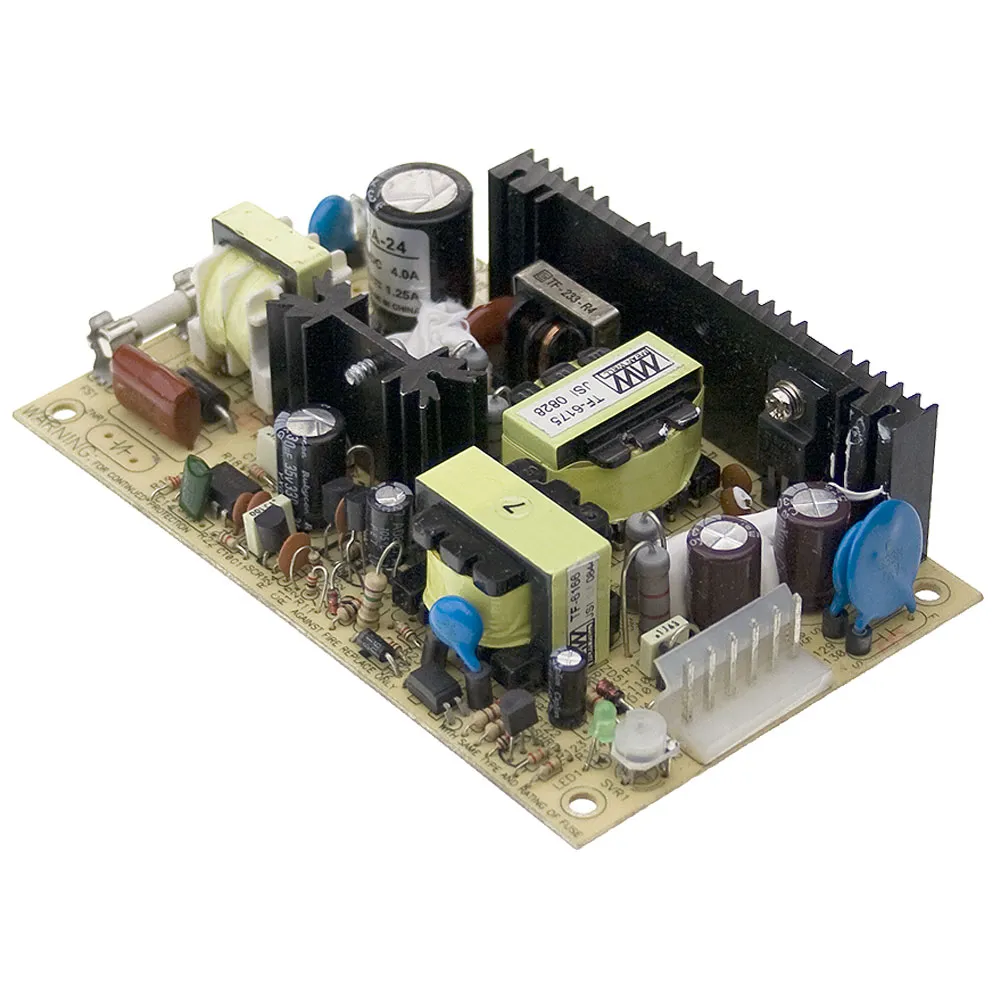

30W Single Output DC-DC Converter


Output: 24 Volts @ 1.25 Amps

Features:
  • Input voltage range: 9.2-18VDC
  • Built-in EMI filter
  • Protection: Short-circuit, overload, over-voltage, reverse-polarity
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at 96kHz
  • Efficiency: 80%
  • Compact size: 5.0"L x 3.0"W x 1.2"H
  • Weight: 6.7 oz. (190 grams)
  • 2-year warranty

    • Product Identification

    Type:Step Up
    Product Type:DC-DC Single Output Switching Power Supply SMPS
    Manufacturer Series:PSD-45

    Compliance

    Agency Approvals: CB, CE, EAC, EN, TUV, TUV, CB, CE, EN, EAC

    Dimensions & Appearance

    Color:a, n, N/A
    Height:1.2 in.
    Width:3 in.
    Length:5 in.
    Mounting:Chassis

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Voltage Range:9.2 VDC to 18 VDC
    Input Voltage:12 VDC
    Maximum Input Current:3.5 A

    Output

    Number of Outputs:1
    Output Connector Diameters:N/A
    Output Connector Type:Molex 5273-06
    Output Voltage:24 VDC
    Output Current:1.25 A

    Features

    Pins:8
    Efficiency:79%
    Power Rating:30 W
    ,
