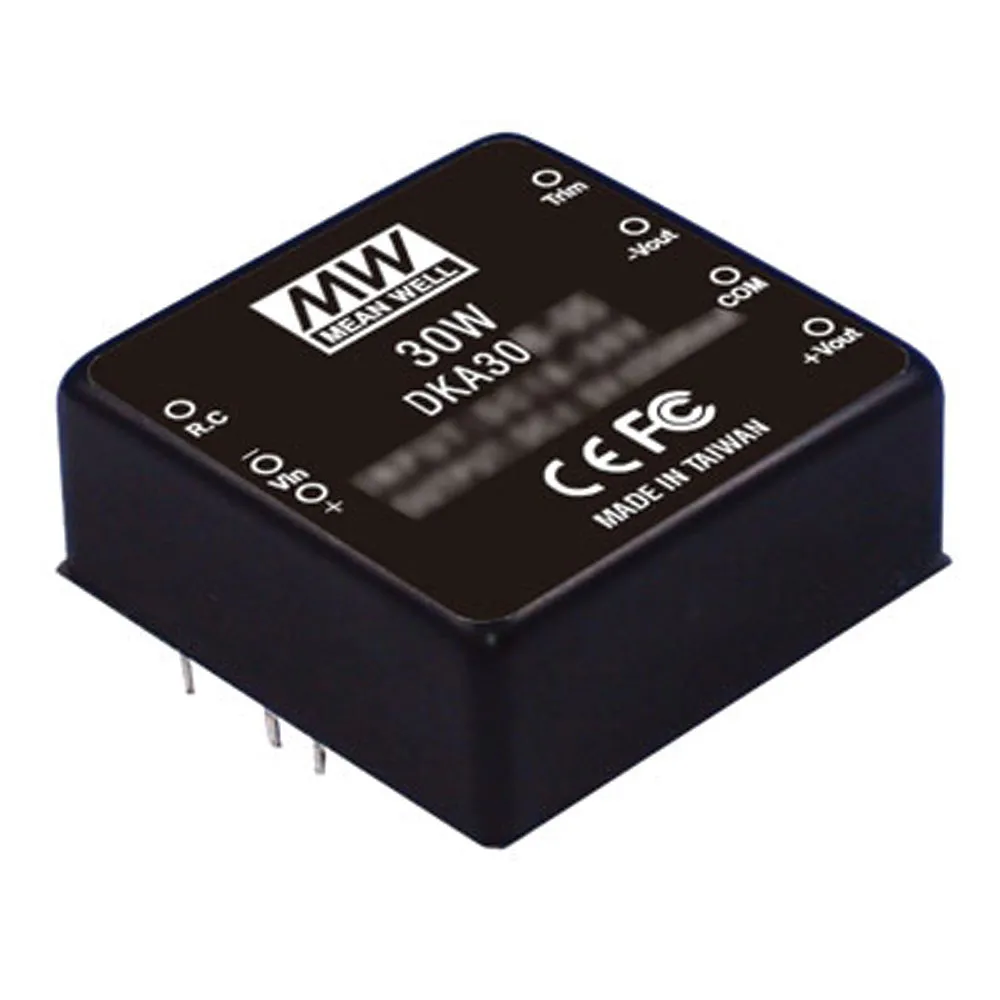

30W Dual Output DC-DC Converter


Output: ±12 Volts @ ±1.25 Amps

Features:
  • Input voltage range: 9-18VDC
  • Built-in EMI filter
  • Remote on-off control
  • Cooling by free air convection
  • 100% burn-in test
  • 1000VDC I/O isolation
  • Six-sided shielded metal case
  • Epoxy encapsulated
  • Protections: Short-circuit, overload
  • Efficiency: 80%
  • Compact size: 2.0"L x 2.0"W x 0.82"H
  • Weight: 3.88 oz. (110 grams)
  • 2-year warranty

    • Product Identification

    Type:Non-Inverting, Step Up, Step Down
    Product Type:DC-DC Dual Output Converter SMPS
    Manufacturer Series:DKA30

    Compliance

    Agency Approvals: EAC, EN, FCC, UKCA, CE, CE, FCC, EN, EAC, UKCA

    Dimensions & Appearance

    Color:Black
    Height:0.82 in.
    Width:2 in.
    Length:2 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:85°C

    Input

    Input Voltage Range:9 VDC to 18 VDC
    Input Voltage:12 VDC

    Output

    Number of Outputs:2
    Additional Output Voltages (VDC):-12 VDC
    Output Voltage:12 VDC
    Output Current:1.25 A

    Features

    Pins:7
    Power Rating:30 W
    ,
