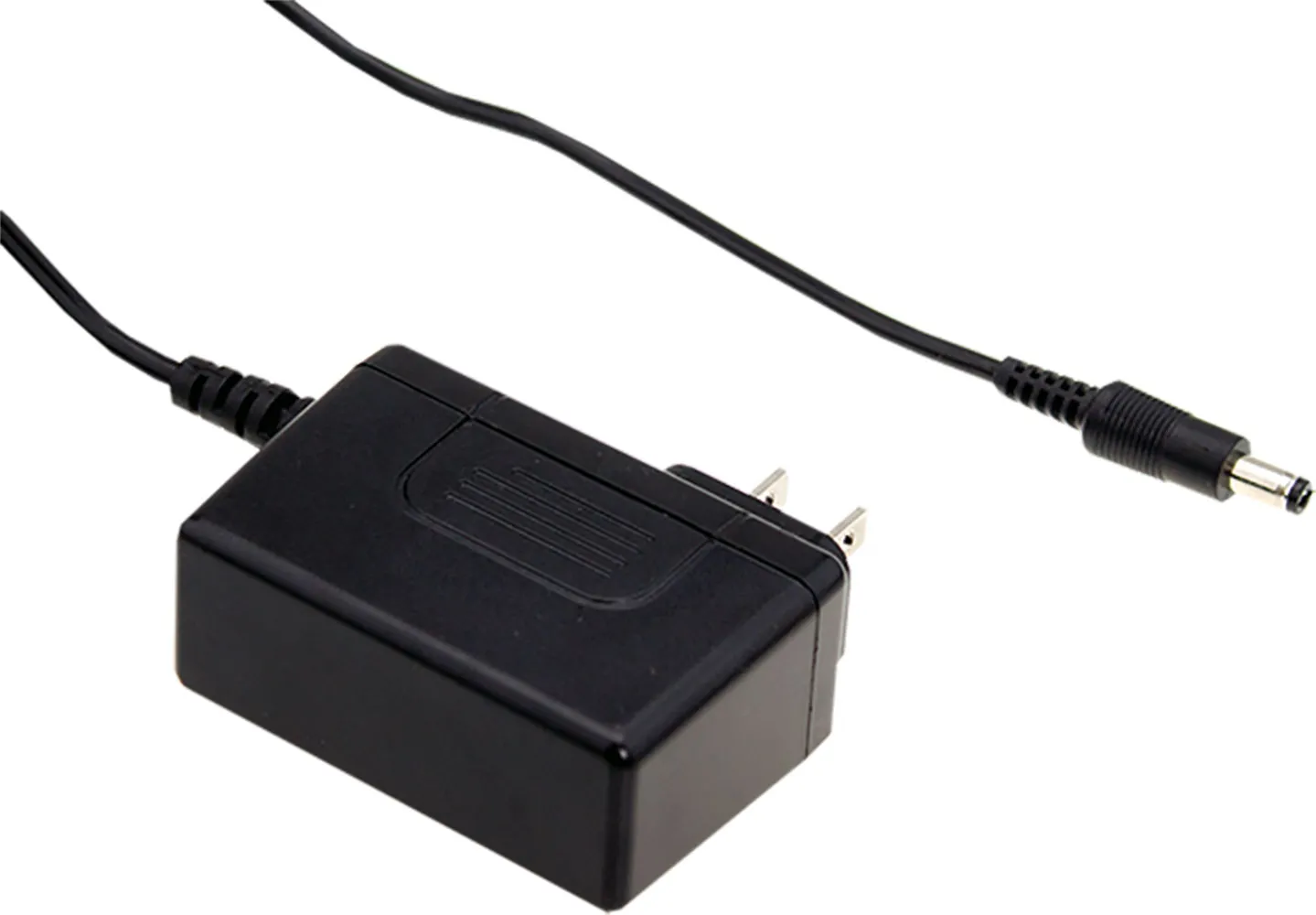

30W 5V 6A AC-DC High Reliability Green Slim Wall-mounted Medical Adaptor 2.1mm Plug

5 Volts DC @ 6 Amps

Features

  • Output Connector: 2.1mm x 5.5mm, center positive cylindrical female plug
  • Medical safety approved (2 MOPP) according to ANSI/AAMI ES60601-1-1-11
  • Ultra slim, compact size
  • Extremely Low leakage current
  • No load power consumption< 0.075W
  • Energy efficiency Level VI
  • Class II power
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • 3 year warranty

Applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhaler
  • Portable medical device
  • Sleep apnea devices

Product Identification

Manufacturer Series:GSM60U
Product Type:Switching SMPS

Compliance

Agency Approvals:UL, CB, FCC

Dimensions & Appearance

Color:Black
Style:Slimline Wall Mount
Width:1.26 in.
Height:1.87 in.
Length:2.97 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:NEMA 1-15P
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Cord Length:3 ft.
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:5 VDC
Output Connector Type:Cylindrical Female
Output Current:6 A

Features

Polarity:Center Positive
Product Note:Level V
AC Power Cord:N/A
Efficiency:80%
Power Rating:30 W
,
