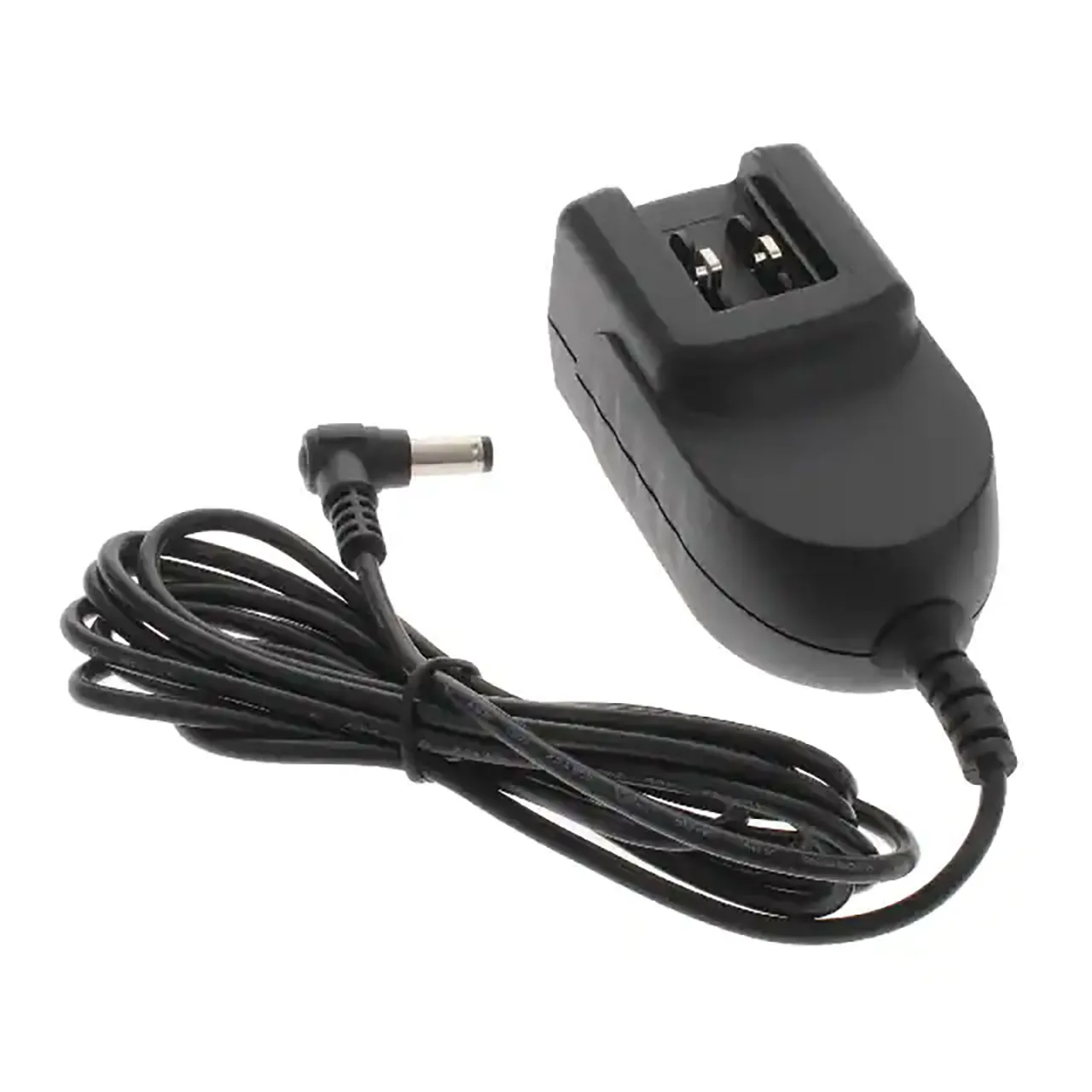

30W 12V 2.5A AC-DC Medical Interchangeable Plug Wall Adapter 2.1mm R/A Plug

Features

  • AC Plug Sold Separately, see AC Plug Kit (P/N: 2339791)
  • Interchangeable AC Plugs
  • Universal Input Range 80 to 264Vac
  • High Efficiency up to 88%
  • Leakage Current < 50uA
  • Class II
  • No Load Power Consumption < 75mW
  • Approval IEC/EN/UL 60601-1 2 MOPP
  • Approval EN60601-1-11 for Home Healthcare Applications
  • Approval EN55011, FCC 47 CFR Part 18 Class B
  • Approval IP22
  • Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • Over Voltage Protection
  • Continuous Short Circuit Protection
  • Meets CoC Tier 2 & DoE Level VI
  • Output Cable Length approx. 6'

Product Identification

Product Type:Switching SMPS
Manufacturer Series:TR30RDM

Compliance

Agency Approvals:UL, CUL, TUV, CE, FCC, EN, PSE

Dimensions & Appearance

Color:Black
Style:Slimline Wall Mount
Height:1.70 in.
Width:2.28 in.
Length:3.81 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:AC Plug Clips sold separately
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:0.8 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Cord Length:6 ft.
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female, R/A
Output Current:2.50 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Efficiency:88%
Power Rating:30 W
,
