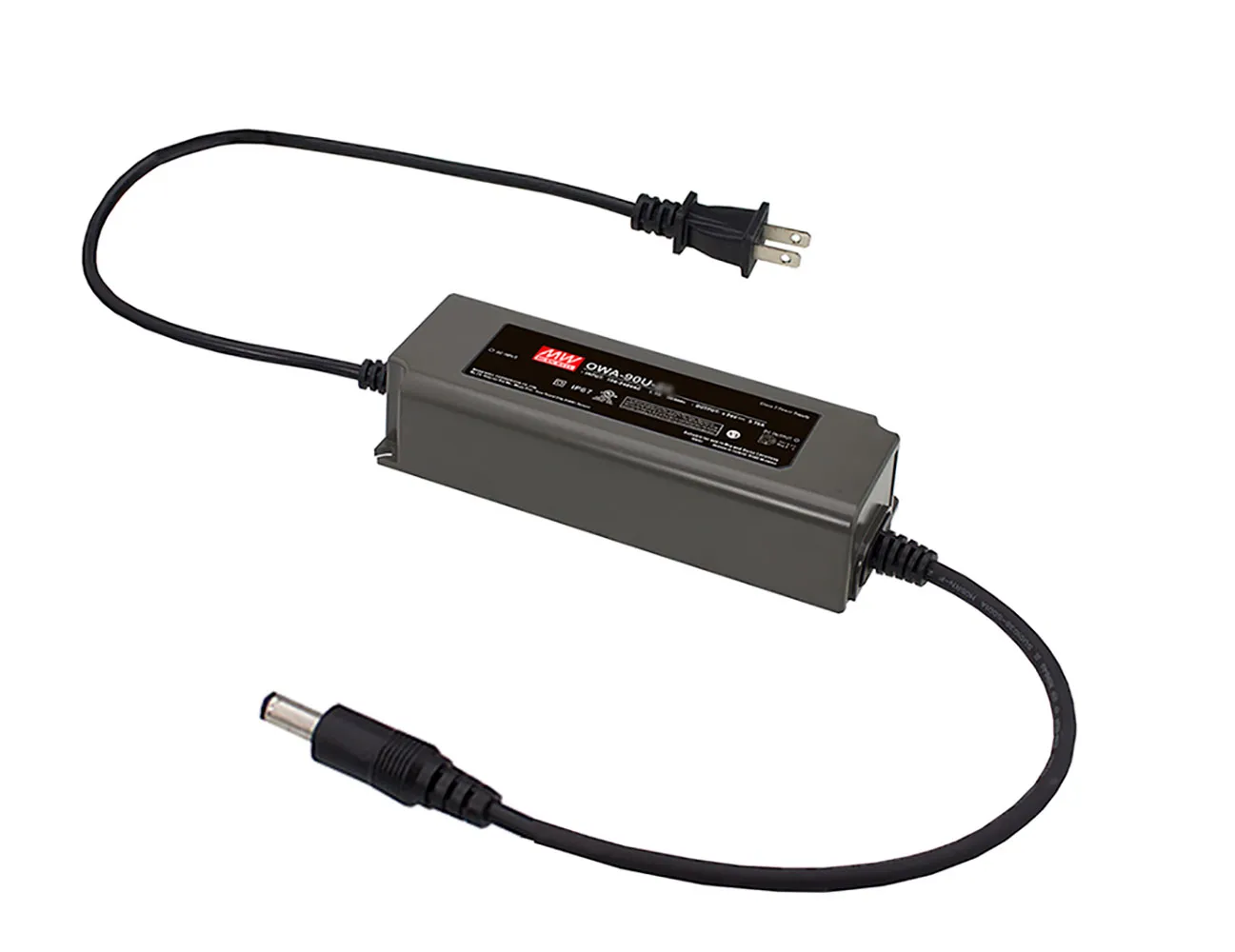

30V 3A 90W Single Output Moisture-proof LED Power Supply with 2.5mm Plug

30 Volts DC @ 3 Amps

Features

  • Universal AC input / full range (90 to 264 VAC @ 47 to 63 Hz)
  • Built-in active PFC function
  • Class 2 power unit, no FG
  • High efficiency up to 89%
  • Protections: short circuit, over current, over voltage, over temperature
  • No load power consumption <0.15W
  • Energy efficiency Level VI
  • Complies with EISA 2007 DoE and NRCan
  • UL listed, suitable for dry and damp locations
  • 5 year warranty

Applications

  • LED lighting fixture
  • LED decorative lighting
  • LED office lighting
  • General electronic products in dry or damp environments

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:OWA-90U

Compliance

Agency Approvals: FCC, CUL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.48 in.
Width:2.48 in.
Length:6.73 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.95 A

Output

Number of Outputs:1
Output Connector Diameters:2.5mm x 5.5mm
Output Voltage (Channel 1):30 VDC
Output Connector Type:Cylindrical Female
Output Current (Channel 1):3 A
Output Voltage:30 VDC
Additional Output Voltages (VDC):N/A
Output Current:3 A

Features

Polarity:Center Positive
Minimum Isolation Voltage:3750V
Product Note:Level VI
AC Power Cord:Included
IP Rating:IP67
Efficiency:89%
Power Rating:90 W
,
