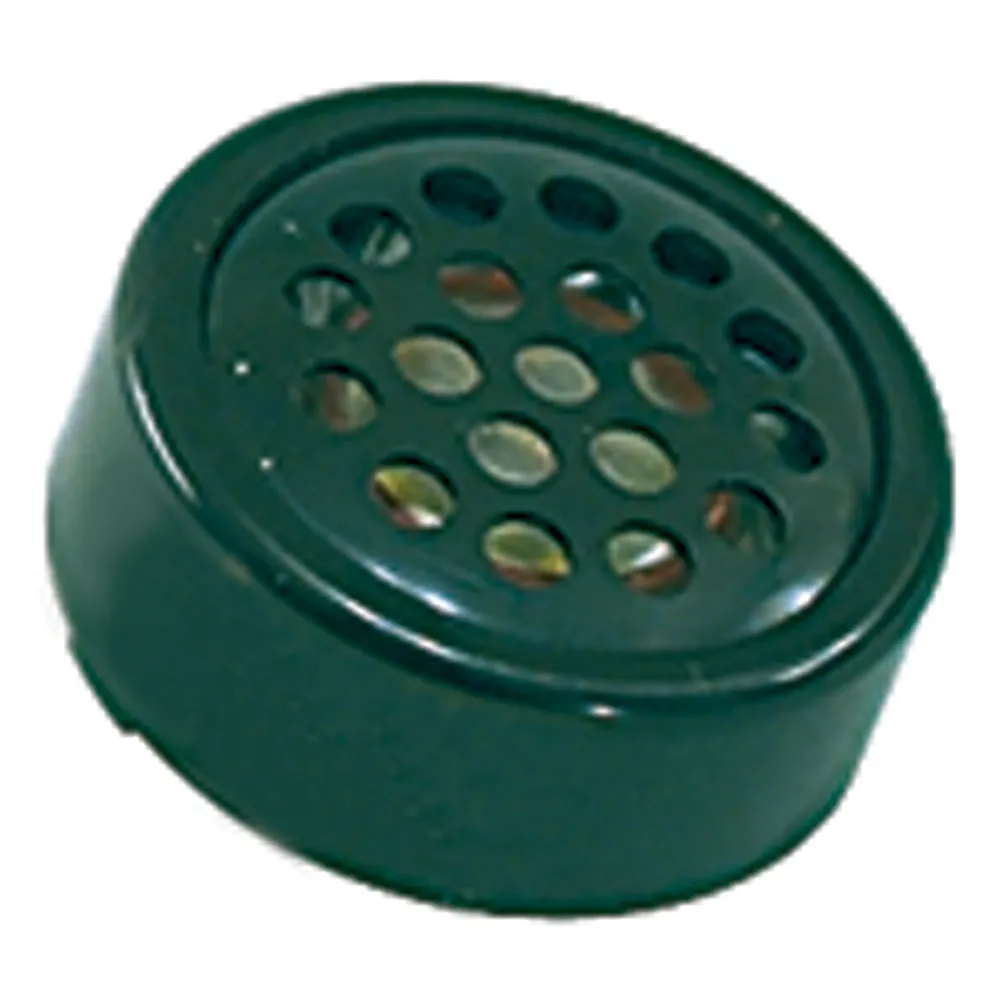

30mm PC Mountable Speaker

Specifications

  • Round frame design
  • Ideal for PC board Mounting
  • Impedance: 8 ohm
  • Mylar diaphragm
  • Solderable leads
  • Dimensions: 1.2" Dia. x 0.5" D
  • Input: Nom(W) 0.150 Max(W) 0.200
  • SPL (dB) 82
  • Frequency Range (Hz): 700 to 5000
  • Pin Spacing: 15 mm

Dimensions & Appearance

Depth:0.50 in.
Diameter:1.17 in.
Width:0.50 in.
Length:1.17 in.

Input

Nominal Input Power (W):0.15
Input Power (max) (W):0.20

Output

Output:82 dB

Features

Impedance:8 Ohm
Magnet Size (Diameter x H) (inches):1.0 x 0.10
Termination Style:Thru Hole
Frequency Range:700 Hz to 5000 Hz
,
