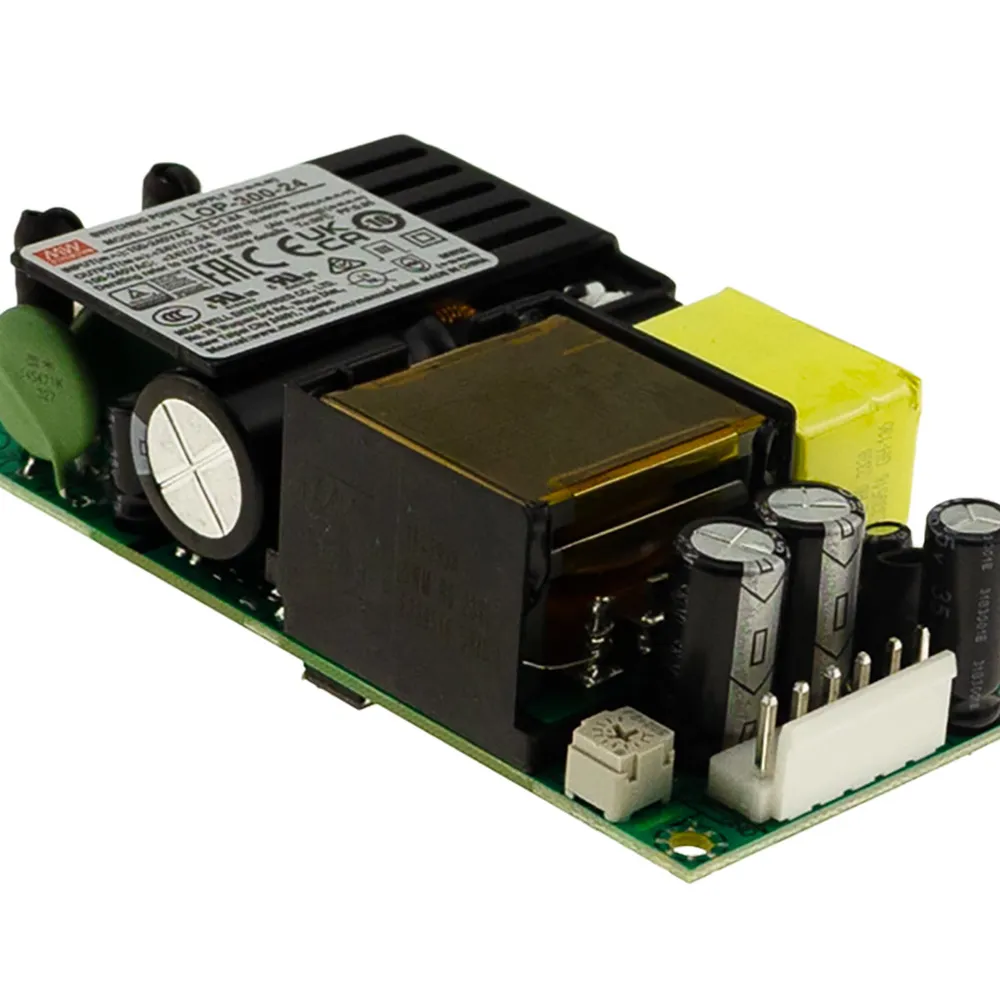

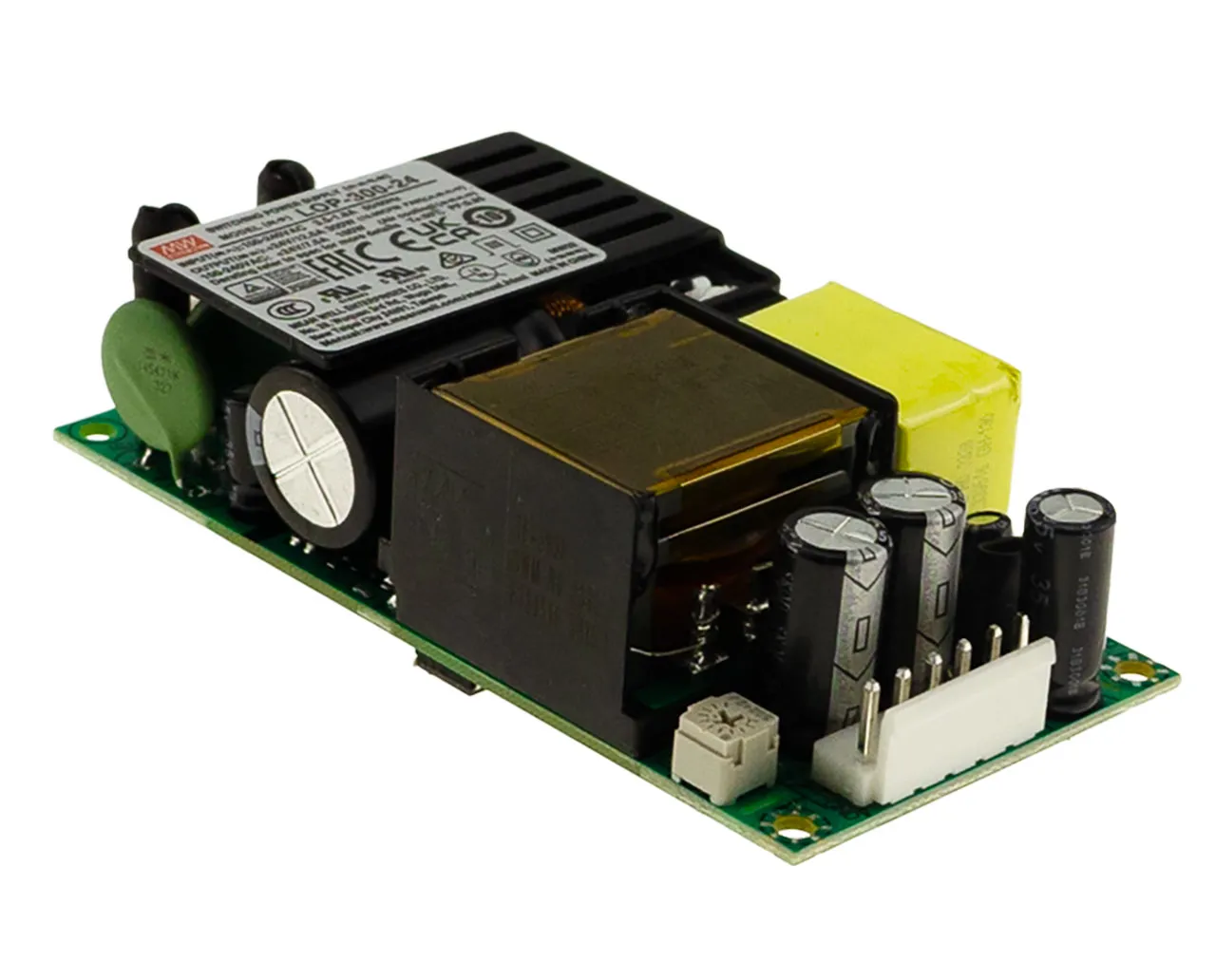

300W Low-Profile Green Medical Open Frame Power Supply 30V 6A Convection 10A with Fan

Features

  • MEAN WELL Patent Number: ZL 202223277512.1
  • 4" x 2" compact size with low-profile (25.4mm)
  • 80-264VAC wide input range with PFC, No load power consumption <0.5W
  • Global certification in multiple fields:
    • ITE 62368-1
    • Medical 60601-1
    • Household 60335-1
    • Industrial 61558-1/-2-16
  • 150% peak load for 3 seconds
  • ~180W convection, 300W with fan (10.98 CFM fan forced-cooled, like P/N: 2342783)
  • Suitable for Class I or Class II installations
  • Over voltage category III (OVC III)
  • -40 to +80°C wide range operation temperature
  • High efficiency
  • Protections: Short circuit / overload / over voltage / over temperature
  • Extremely low leakage current
  • Operating altitude up to 5000 meters
  • Build-in 12V/0.5A for external fan (fan not included)
  • 3-year warranty

Overview

LOP-300 is a 300W highly reliable green PCB type low-profile power supply with a high-power density (37.5W/in³) in a 4"x2" footprint. It accepts 80 to 264 VAC input voltage and offers various output voltages between 12V and 54V. The working efficiency is over 93% and the extremely low no load power consumption is down below 0.5W.

The LOP-300 can be used in both Class I (with FG) and Class II (no FG) system designs. It is equipped with complete protection functions and is compliant with international safety regulations such as IEC/BS EN/EN/UL62368-1, IEC/BS EN/EN60335-1, IEC/BS EN/EN61558-1/-2-16, IEC/BS EN/EN60601-1. The LOP-300 serves as a high price-to-performance power supply solution for various industrial applications. The extremely low leakage current is less than 500µA. Additionally, it conforms to the international medical regulations (2x MOPP) and EMC BS EN/EN55011, perfectly fitting all kind of BF-rated (patient contact) medical system equipment.

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment, or apparatus
  • Power sourcing equipment of PoE
  • Medical devices

,
