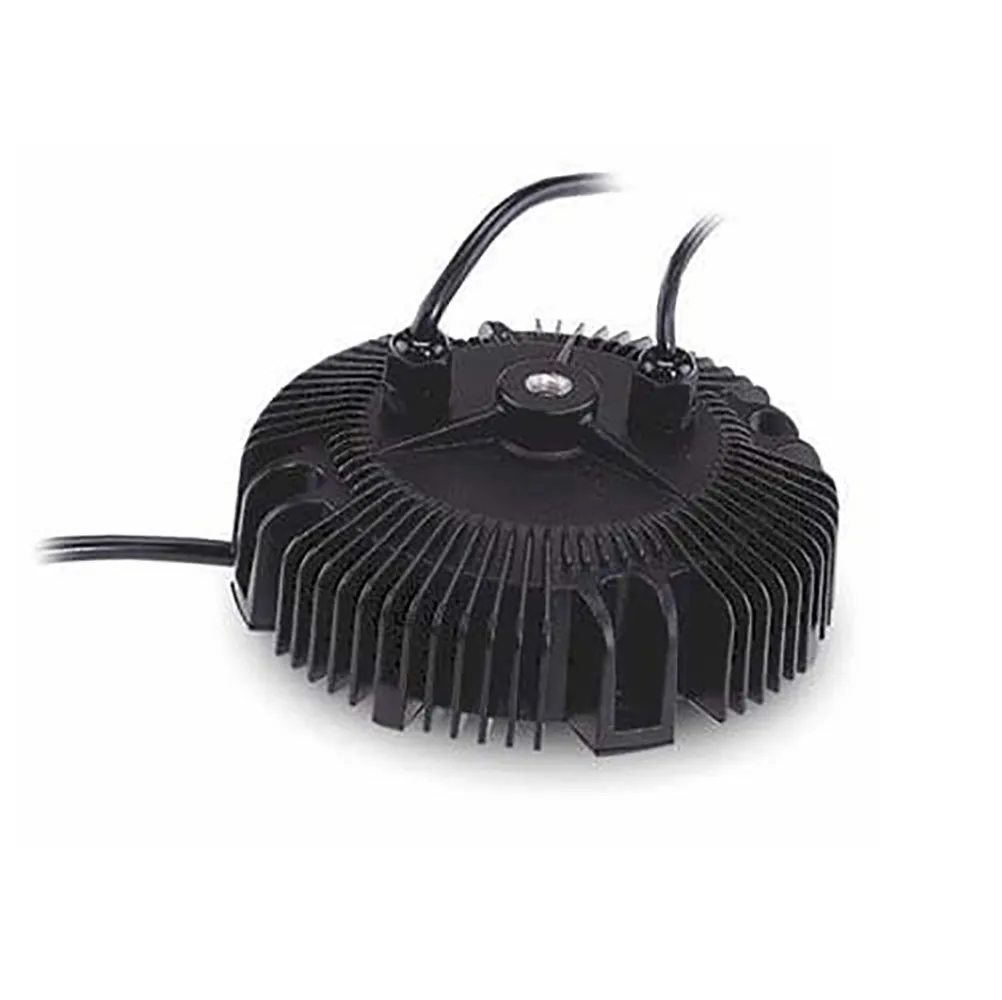

300W Constant Power Mode LED Driver Output Adjustable by Built-in Potentiometer 5.6

5.6 Amps @ 29 to 58 Volts DC

Features

  • Input voltage: 180 to 305 VAC @ 47 to 63 Hz
  • Built-in active PFC function
  • Full power at 60 to 100% max current
  • IP67 design for indoor or outdoor installations
  • Constant Power mode output
  • Typical lifetime: >50,000 hours
  • 5 year warranty

Applications

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:HBGC-300

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Black
Height:2.72 in.
Width:7.54 in.
Length:7.54 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:3 A

Output

Number of Outputs:1
Output Voltage (Channel 1):58 VDC
Output Connector Type:Stripped and Tinned
Output Voltage:58 VDC
Output Range:29 VDC to 58 VDC
Output Current (Channel 1):8.67 A
Output Current:8.67 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:92.5%
Power Rating:301.6 W
,
