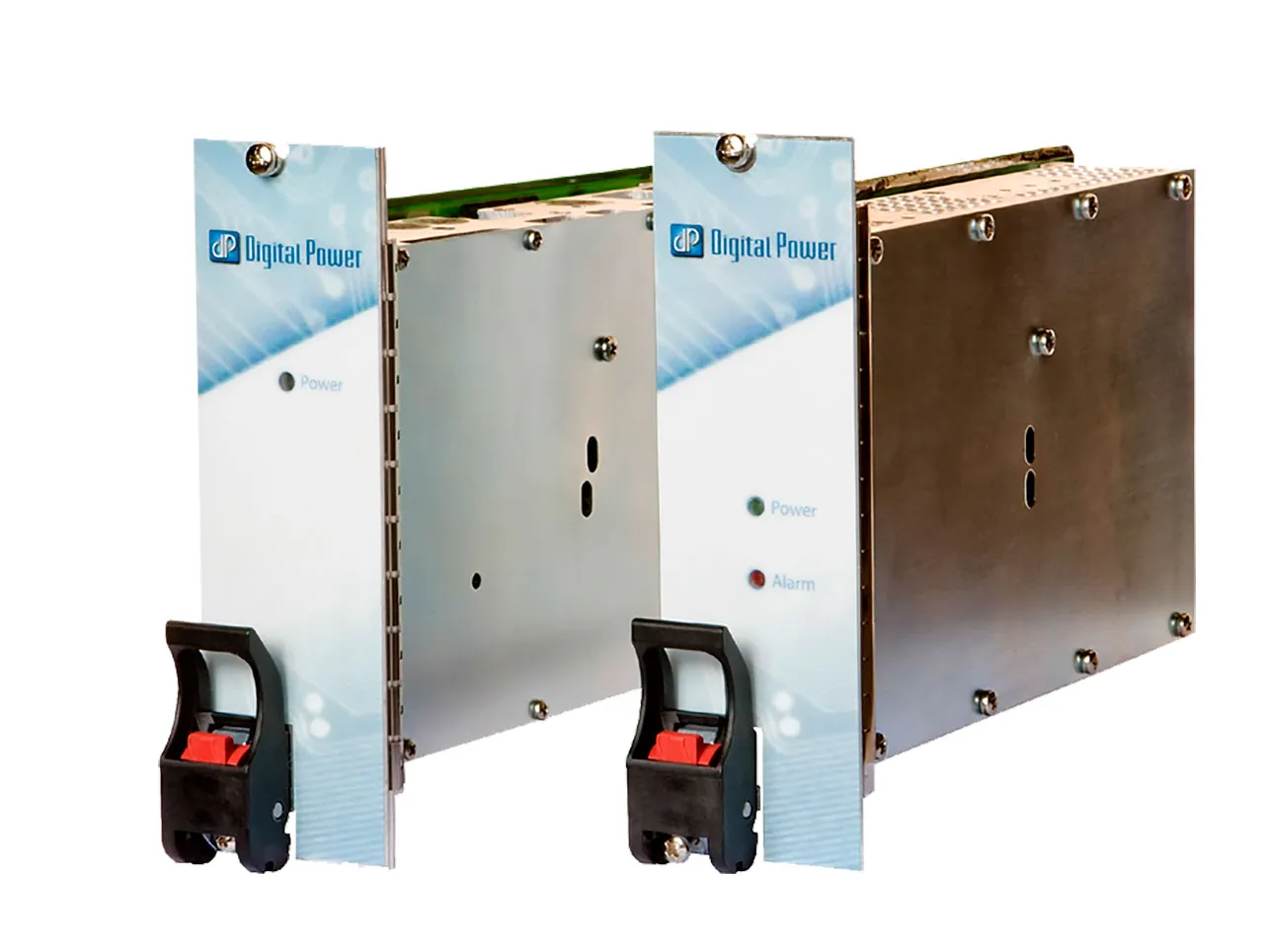

300W Compact PCI Power Supply Quad Output 3U 48VDC Input

Features

  • 48 VDC Input, range 36 VDC to 72 VDC
  • 3U cabinet
  • High current 3.3V and 5V outputs
  • Accurate current sharing
  • Internal Oring FETs for redundant applications
  • PICMG 2.11 compliant
  • UL/cUL 60950-1, IEC/EN60950-1 Approved (AC Input and 48 VDC Input)
  • EN55022 Level B Emissions (with external filter)

Overview

The CPCI 3U Series of power supplies offer industry leading performance with up to 300 Watts in a 3U package. A full range of AC Input, 24/28VDC Input and 48VDC Input products is available and all products are compliant to the PICMG 2.11 power interface specification. These CPCI products are ruggedized and excel in defense and harsh industrial applications.

Specifications

  • Output Power: 300 W
  • V1 Output: 5 V @ 30 A
  • V2 Output: 3.3 V @ 40 A

Product Identification

Product Type:Compact PCI Power Supply
Manufacturer Series:CPCI-DC-3U

Compliance

Agency Approvals:UL, CUL, CE, EN

Dimensions & Appearance

Color:Silver
Width:1.60 in.
Height:3.94 in.
Length:6.67 in.
Mounting:PCI

Operating conditions

Minimum Operating Temperature:-5°C
Maximum Operating Temperature:55°C

Packaging

Package:PCIMG 2.11

Input

Input Voltage:48 VDC
Input Voltage Range:36 VDC to 72 VDC

Output

Number of Outputs:4
Additional Output Voltages (VDC):3.3 VDC, 12 VDC, -12 VDC
Output Voltage:5 VDC
Output Connector Type:Positronic PCIH47M400A1/AA
Output Current:30 A

Features

Pins:47
Efficiency:83%
Power Rating:300 W
,
