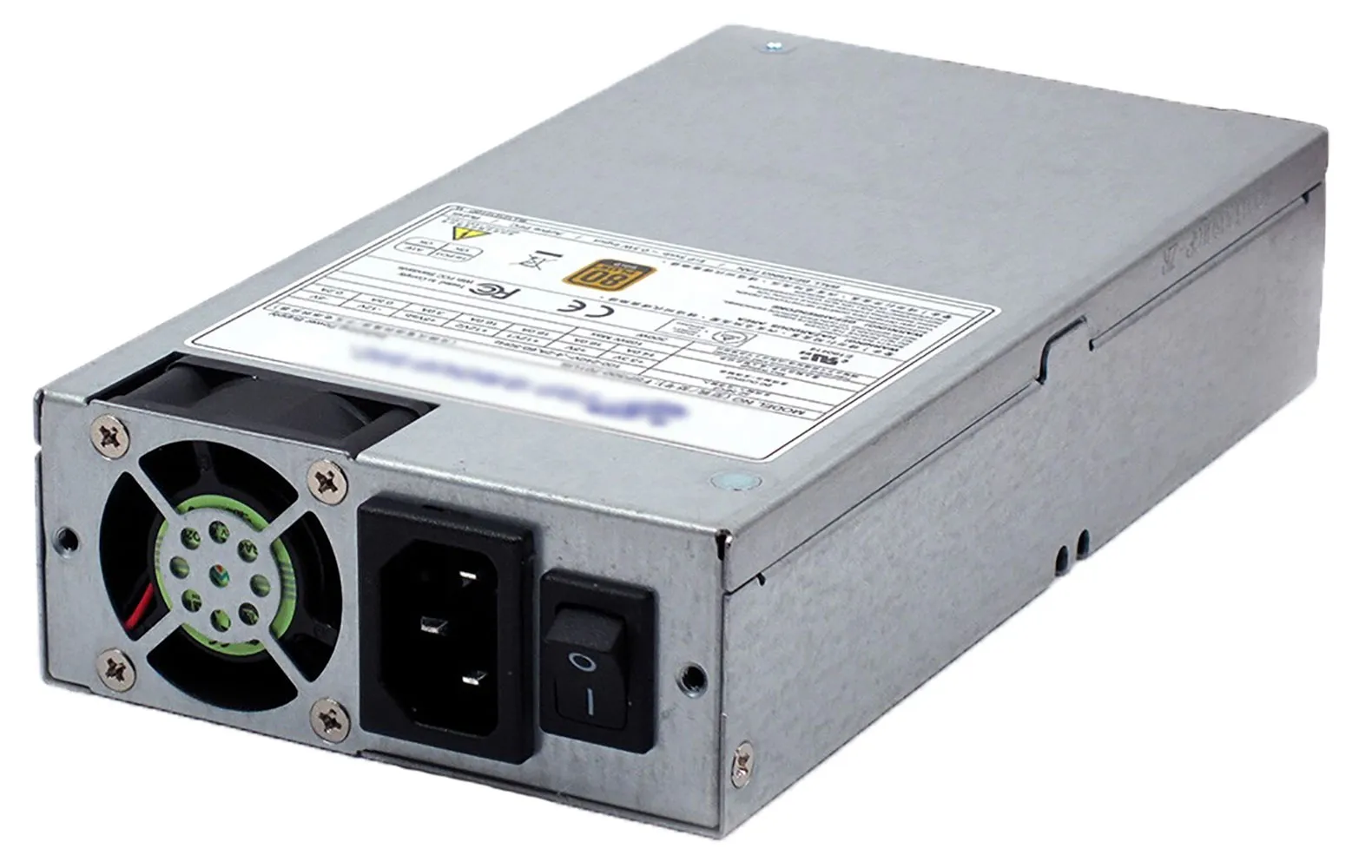

300W ATX12V 1U Switching Power Supply with PFC

Features:

• Complies with ATX 12V standard
• Active Power Factor Correction (PFC) meet EN61000-3-2
• High efficiency and reliability
• Remote ON/OFF function
• Internal 12V DC fan included
• Noise Killer (thermal fan speed control function)
• Low noise and ripple
• Output over voltage, short circuit, and over current protection
• 100% Hi-pot, ATE, and burn-in tested
• Re-settable power shut down
• Complies with FCC part 15 subpart J class B 115Vac operation, and CISPR 22 class B at 230Vac operation
• Approved by UL, CSA22.2 NO or CUL 609 EMC, FCC, CE, CB report.

Specifications:

• Total Power: 300W
• Input Range: 90 ~ 264Vac, Full Range Input
• Frequency: 47 ~ 63Hz
• Input Current: Max 6A @ 115Vac, 3A@ 230Vac
• Operating: 0°C ~ +50°C on full load
• Humidity: 5-90% on operating, 5-95% on storage
• Efficiency: typical up to 85%
• MTBF: 100,000 hours on maximum load at +25°C
• Dimensions (LxWxH): 190 x 100 x 40.5 mm / 7.5 x 3.9 x 1.6 inch
• Connectors:
  • 1 - 20+4pin
  • 2 - 4pin 12V P2
  • 3 - 4pin Molex
  • 1 - Floppy
  • 3 - SATA
• Requires 3-prong AC receptacle cord (Not included) (Recommended: 2271575)
