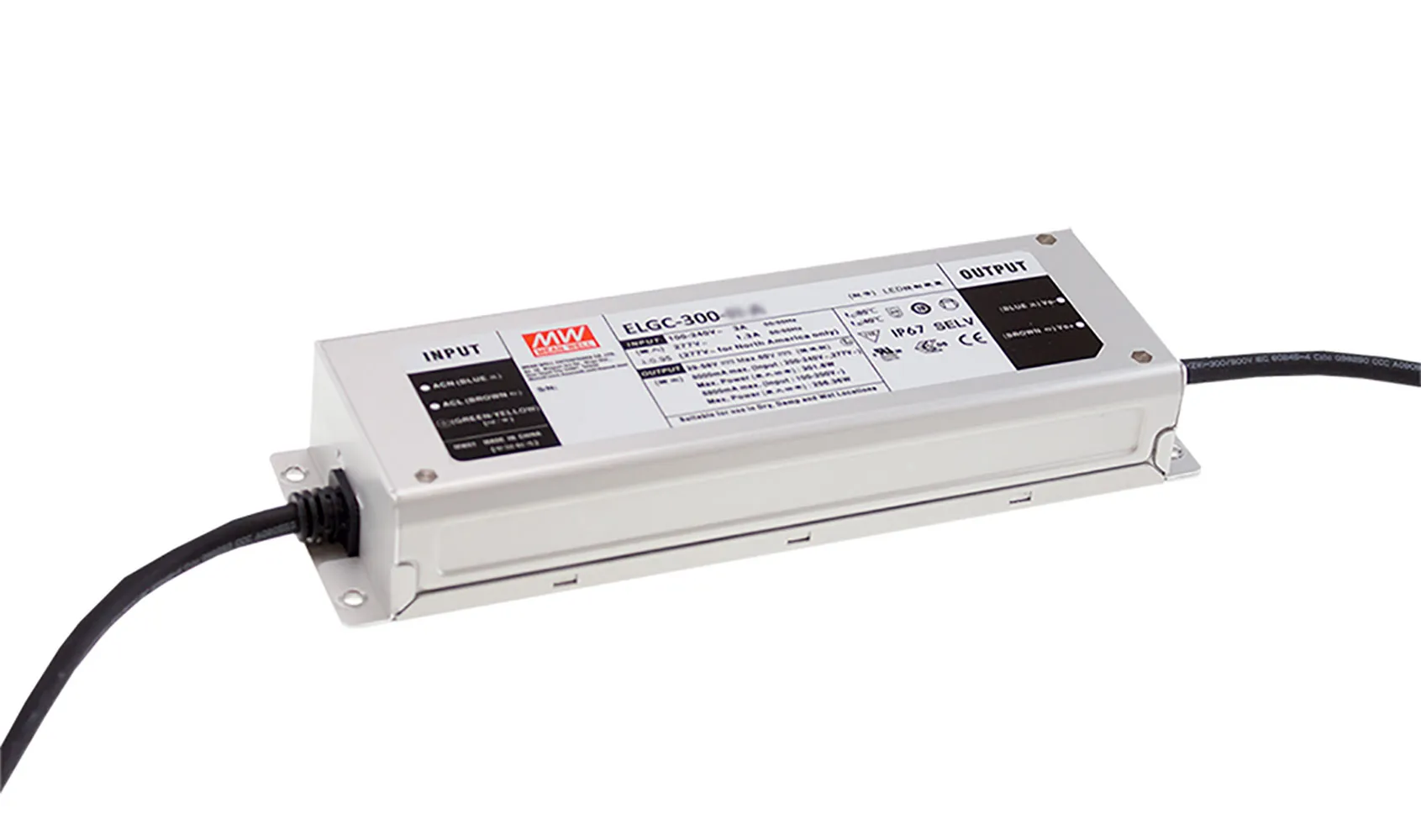

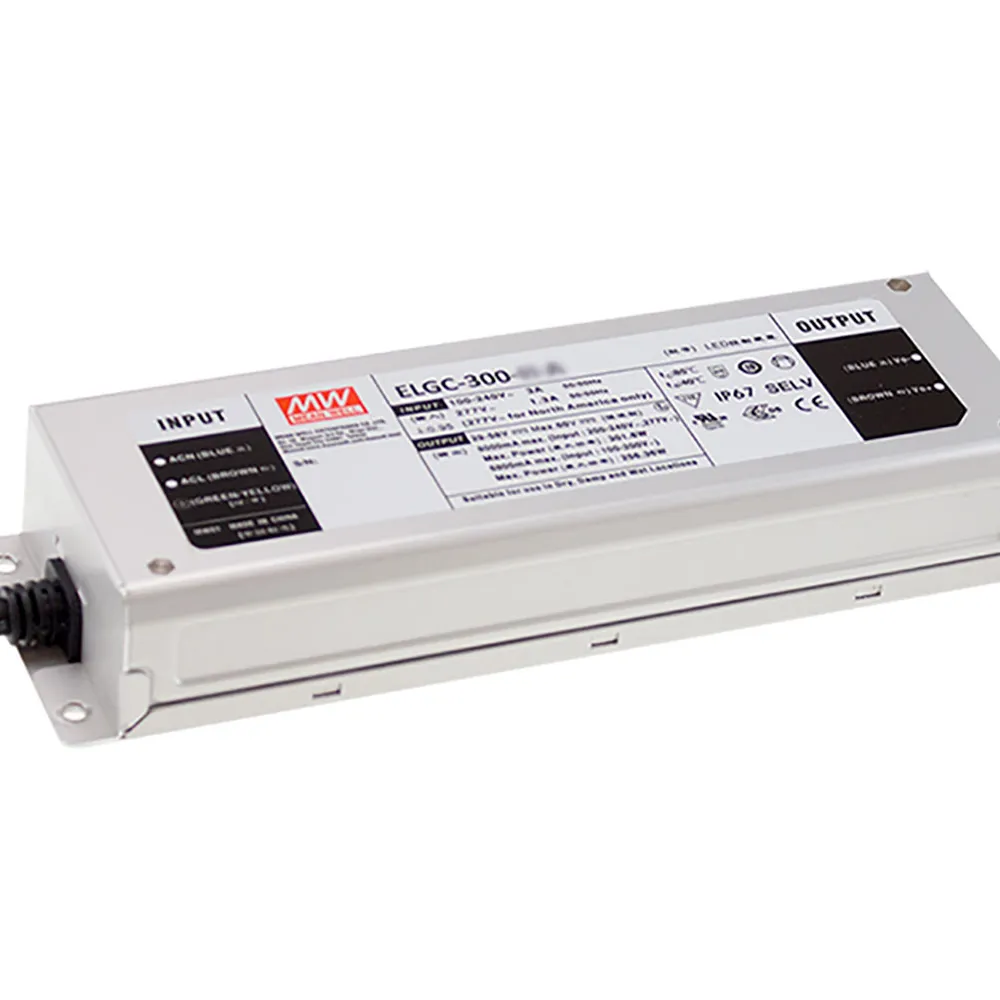

300W 3 in 1 Dimming Constant Power Mode LED Driver Output Adjustable by Built-in Potentiometer 1.4A

1.4 Amps @ 116 - 232 Volts DC

Features

  • Full power at 65-100% max current
  • Built-in active PFC function
  • IP67 design for indoor or outdoor installations
  • Typical lifetime >50,000 hours
  • 5 years warranty

Applications:

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting
  • LED fishing lighting
  • LED horticulture lighting
  • Stadium lighting

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:ELGC-300

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.56 in.
Width:3.03 in.
Length:9.69 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:100 VAC to 305 VAC
Maximum Input Current:3 A

Output

Number of Outputs:1
Output Current (Channel 1):0.65 A to 2 A
Output Connector Type:Stripped and Tinned
Output Voltage (Channel 1):116 VDC to 232 VDC
Output Voltage:See Output Range
Output Current:2 A
Output Range:116 VDC to 232 VDC

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:94.5%
Power Rating:301.6 W
,
