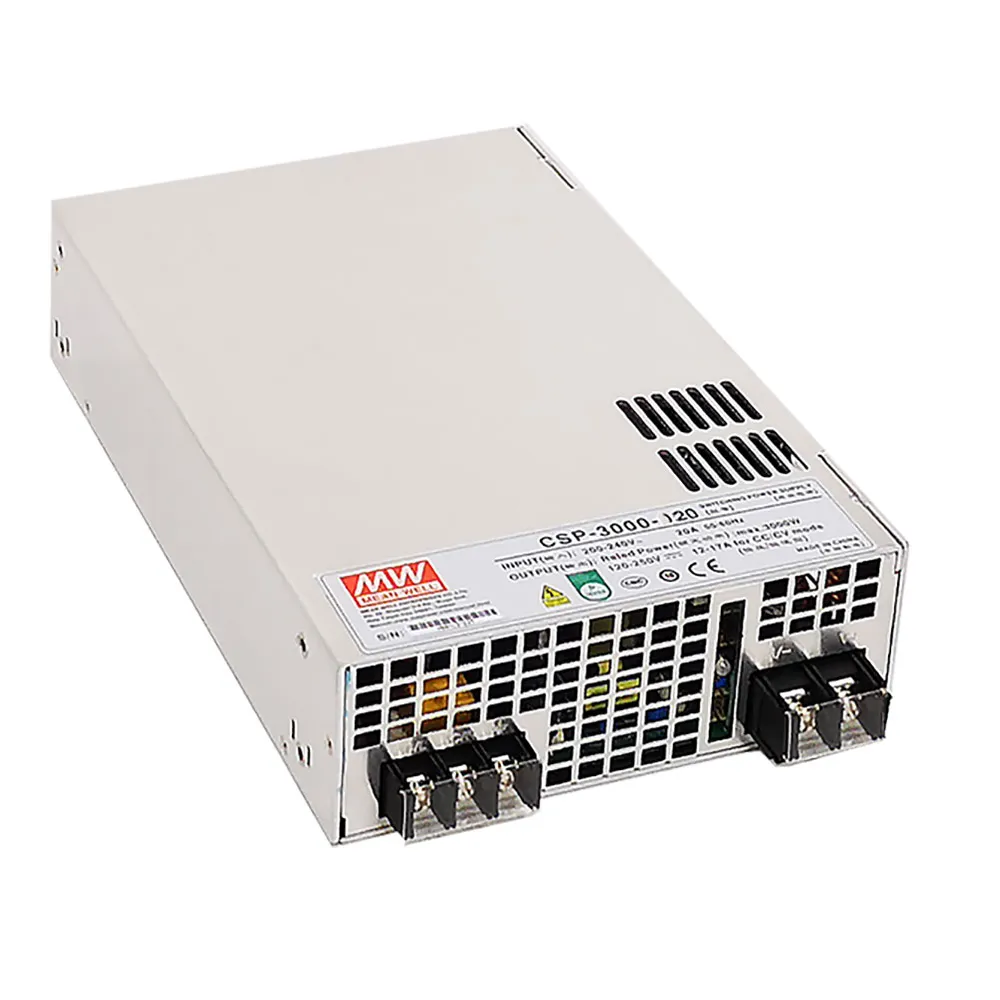

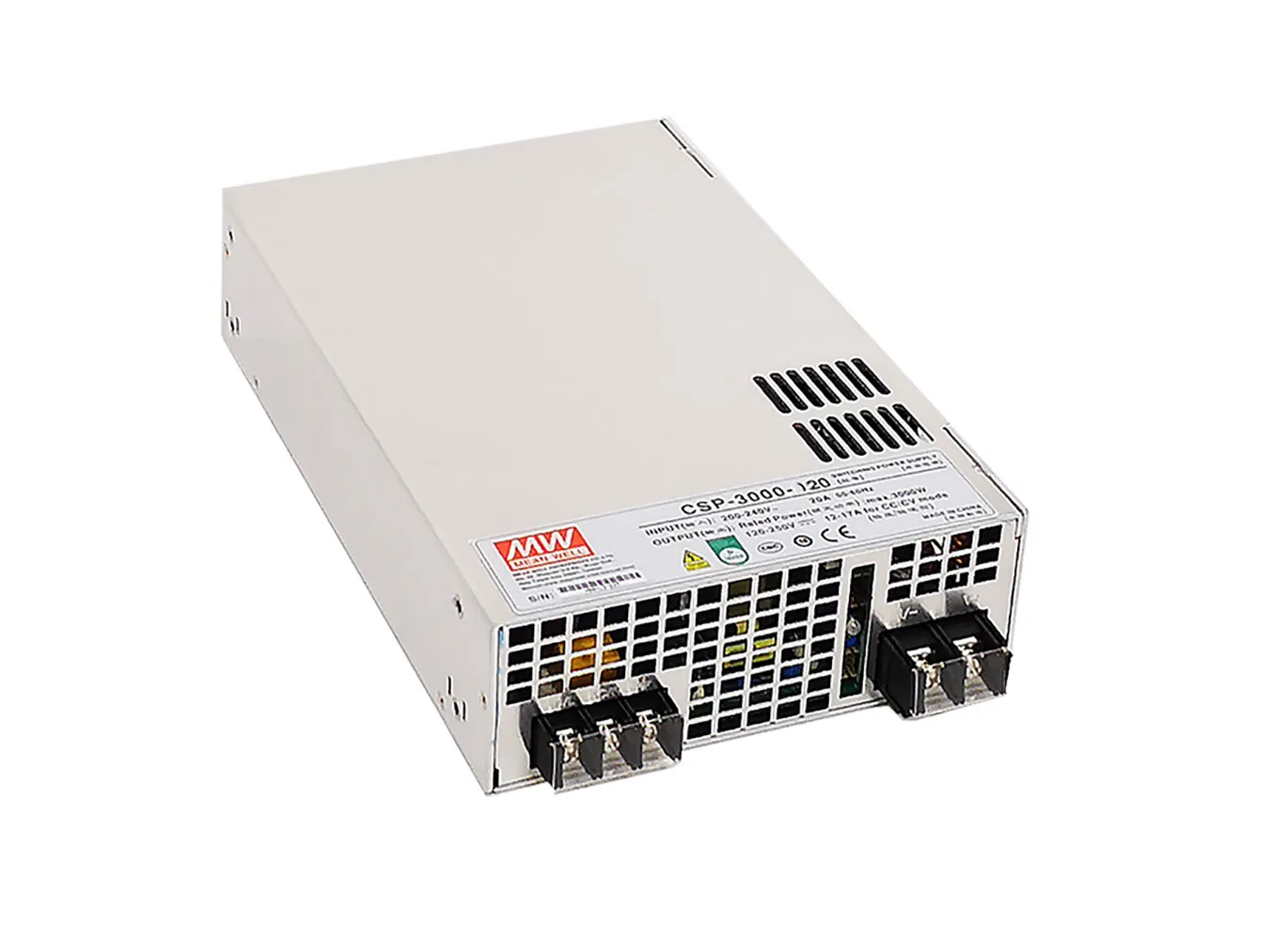

3000W Enclosed Single Output Power Supply 120V 25A
Output: 120 Volts DC @ 25 AmpsHigh Voltage DC (HVDC) Output Power Supply Solutions.
Features
- AC input range: 180 to 264 VAC
- Built-in active PFC function
- Forced air cooling by built-in DC fans
- Output voltage / current programmable
- Active current sharing up to 9000W (2+1)
- Supports parallel function
- Built-in remote ON-OFF control, auxiliary power, and power OK signal
- Protections: Short circuit, overload, over voltage, over temperature, and fan failure
- Conformal coating
- 5 year warranty
- Agency Approvals: UL, CUL, CB, CE, EAC, DEKRA, CQC
Specifications
- Output Voltage: 120 VDC
- Rated Current: 25 A
- Rated Power: 3000 W (3kW)
- Input Voltage Range: 180 to 264 VAC @ 47 to 63 Hz
- Size: 10.9"L x 7.0"W x 2.5"H (2U)
- High efficiency up to 92% (@ 230 VAC)
- Aux. Power: 12V @ 400 mA
Applications
- Factory control or automation apparatus
- Test and measurement instruments
- Laser-related machines
- UV curing equipment
- Fish lamps
- Burn-in facilities
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:CSP-3000
Compliance
Agency Approvals: CB, CE, CQC, CUL, DEKRA, EAC, EN, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Length:10.9 in.
Height:2.5 in.
Width:7.0 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 264 VAC
Maximum Input Current:20 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage (Channel 1):120 VDC
Output Voltage:120 VDC
Output Current (Channel 1):25 A
Output Current:25 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:92%
Power Rating:3000 W
