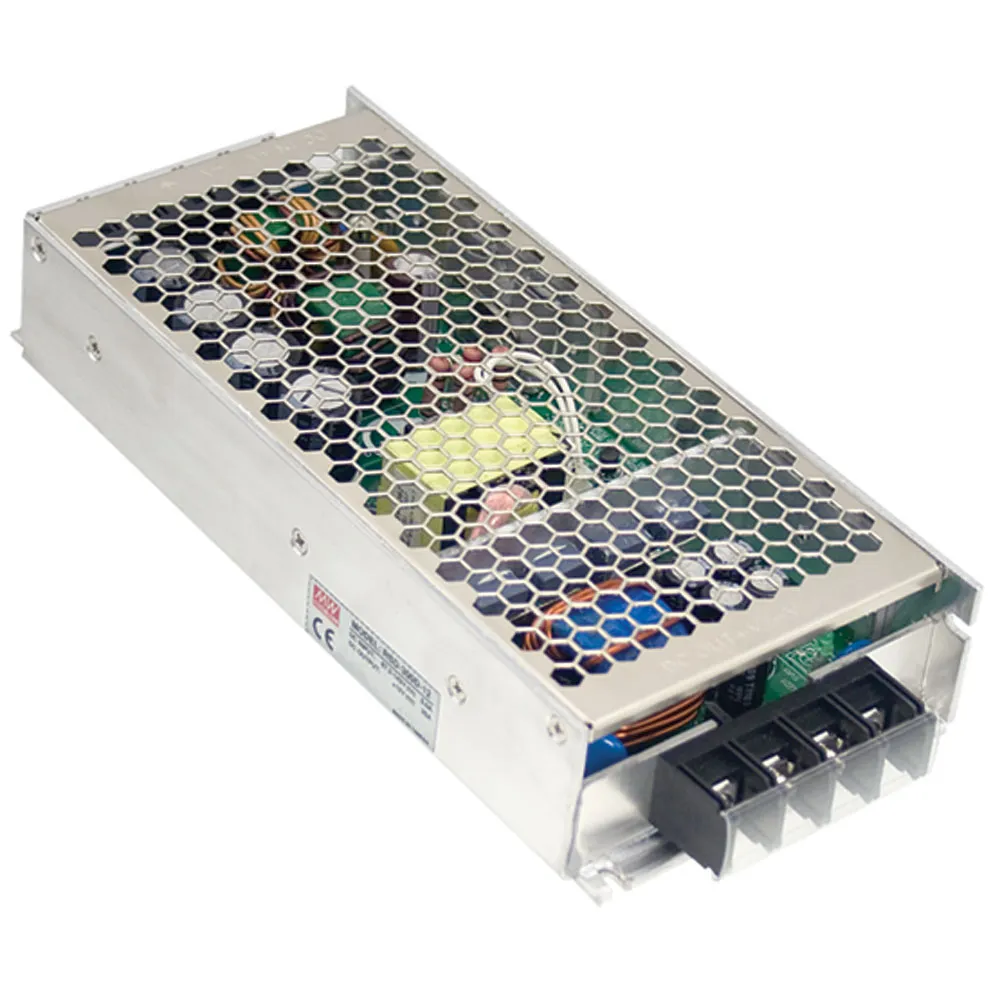

300 Watts 12V 25A Railway Single Output DC-DC Converter Time-Lag 20A 250V Fuse

Jameco Part #:

Manufacturer #:

Product Price:

$135.300

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$135.300	-	-
5+	$128.900	6.40	4.73%
10+	$123.200	12.10	8.94%
20+	$119.600	15.70	11.6%

Compliance to EN50155 and EN45545-2 railway standard
2:1 wide input range
Protections: Short circuit / Overload / Over voltage / Over temperature/ Input reverse polarity
4000 VDC I/O isolation
Half encapsulated
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 40mm
All using 105° long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
3 year warranty

Product Identification

Manufacturer Series:RSD-300

Product Type:Railway Single Output DC to DC Converter SMPS

Agency Approvals:UL, CUL, CB, CE, EN, EAC

Color:Silver

Height:1.6 in.

Width:3.8 in.

Length:8.5 in.

Minimum Operating Temperature:-40°C

Maximum Operating Temperature:55°C

Package:Railway Enclosed

Input Voltage:36 VDC

Input Voltage Range:25.2 VDC to 46.8 VDC

Maximum Input Current:9.2 A

Number of Outputs:1

Output Voltage:12 VDC

Output Connector Type:Screw Terminal Block

Additional Output Voltages (VDC):N/A

Output Current:25 A

Efficiency:90%

Power Rating:300 W
