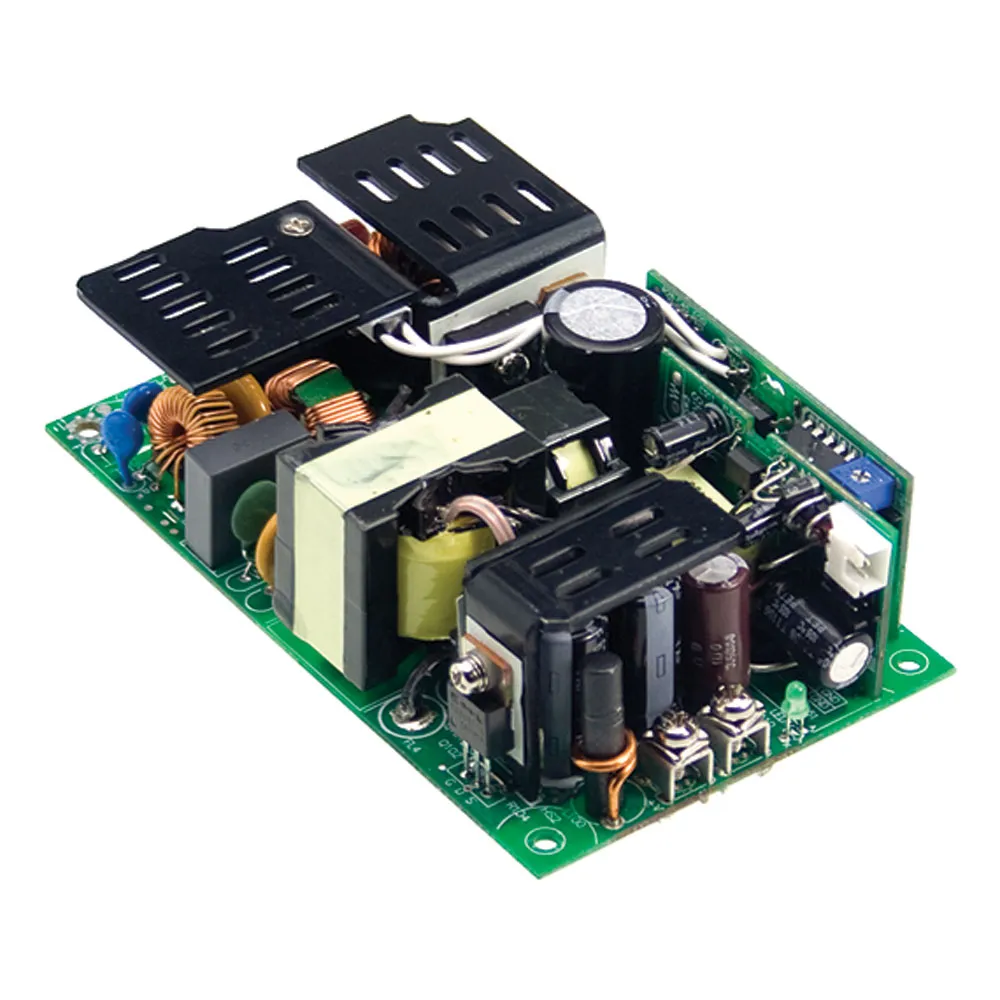

300 Watt Single Output Medical Type
12 Volts @ 25 Amps
Features:
- Universal AC input/ Full range
- Built-in active PFC function
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- Built-in 12V/0.5A auxiliary output
- 5"x3" compact size
- Free air convection for 200W and 300W with 20.5 CFM forced air
- With power good and fail signal output
- Built-in remote sense function
- No power load consumption under 0.5W by PS-ON control
- Standby 5V@1A with fan @0.6A without fan
- 3 years warranty
Product Identification
Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:RPS-300
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Medical Open Frame
Height:1.4 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.5 A
Output
Number of Outputs:1
Output Connector Diameters:N/A
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:25 A
Features
Minimum Isolation Voltage:4000V
Efficiency:90%
Power Rating:300 W
