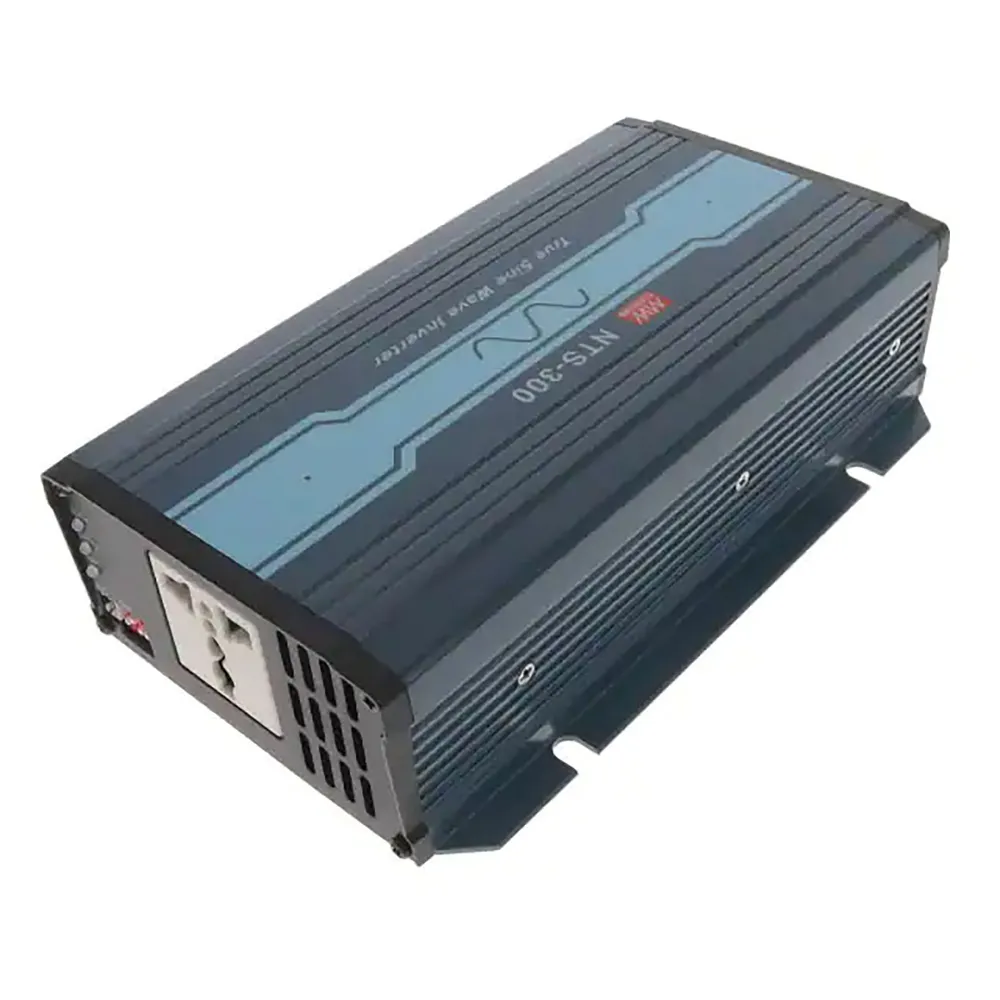

300 Watt High Reliability True Sine Wave DC to AC Power Inverter 24VDCin 110VAC Universal Plug

Input: 24 VDC
Output: 100 / 110 / 115 / 120 VAC
AC Output Socket: Universal Receptacle

Find out more about MEAN WELL Industrial Grade, Reliable and Durable Charger and Inverters.

Features

  • AC output voltage and frequency selectable by DIP switch (100/110/115/120 VAC); (50/60Hz)
  • Compact size and light weight
  • True sine wave output (THD <3%)
  • High surge power up to 600 W (30 cycles)
  • Fanless design
  • No load dissipation <1.5W max. at standby saving mode
  • -25deg;C to +65°C wide operating temperature
  • Power ON-OFF remote control
  • Front panel indicator for operation status
  • Protections:
    • Input: Reverse polarity, DC low alarm, DC low shutdown, over voltage
    • Output: Short circuit, overload, over temperature
  • Battery over discharge protection (Low voltage disconnect)
  • Conformal coating
  • Agency Approvals: None
  • 3 year warranty

Overview

Specifications

AC Output
  • Rated Power (continuous): 300 W
  • Over-Rated Power (3 min.): 345 W
  • Peak Power (10 sec.): 450 W
  • Surge Power (30 cycles): 600 W
  • AC Voltage: 100 / 110 / 115 / 120 VAC selectable by DIP switch (110 VAC default)
  • Frequency: 50 / 60 Hz selectable by DIP switch (60 Hz default)
  • Connection: Universal Receptacle
DC Input
  • DC Voltage: 24 V
  • Voltage Range: 20 to 33 VDC
  • DC Current: 15 A
  • Efficiency: 92%
  • Battery Types: Lead acid or Li-Ion

Applications

  • Mobile device
  • Home and office appliance
  • Power tools
  • Portable equipment
  • Vehicle
  • Yacht
  • Off-grid solar power system
  • Wireless network
  • Telecom or datacom system

Product Identification

Product Type:True Sine DC-AC Inverter
Manufacturer Series:NTS-300

Compliance

Agency Approvals:N/A

Dimensions & Appearance

Color:Gray
Height:2.17 in.
Width:5.12 in.
Length:8.27 in
Mounting:Chassis

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:65°C

Input

Input Frequency:50 Hz, 60 Hz
Input Voltage:24 VDC
Input Voltage Range:20 VDC to 33 VDC
Maximum Input Current:15 A

Output

Number of Outputs:1
Output Connector Type:Universal
Output Voltage:100 VAC, 110 VAC, 115 VAC, 120 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:92%
Power Rating:300 W
,
