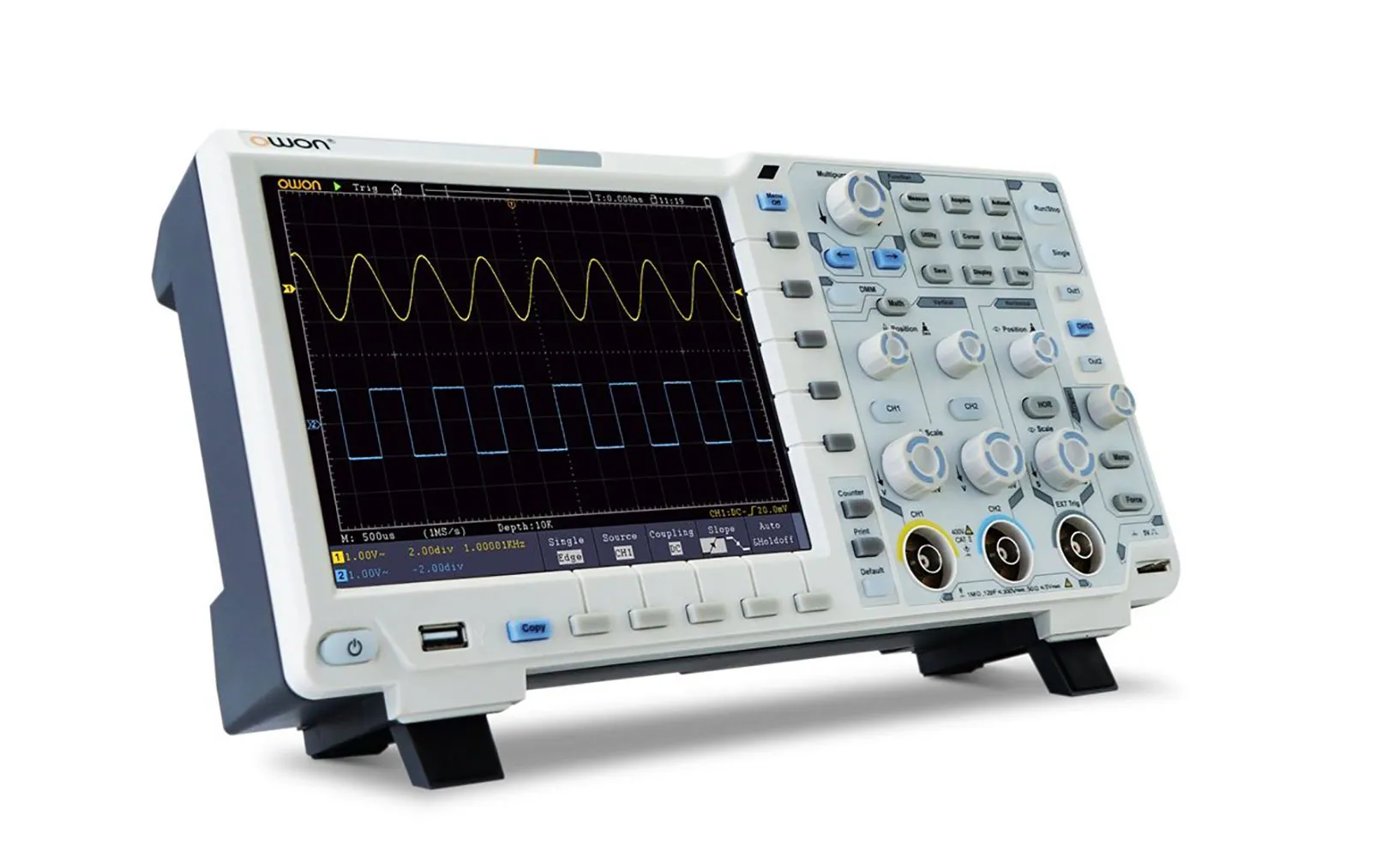

300 MHz 2 Channel 8-bit N-in-1 Digital Oscilloscope 2.5GS/s 8" TFT LCD

Specifications

• N-in-1: Functions as oscilloscope and datalogger
• Channels: 2 + 1 (external)
• Bandwidth: 300 MHz
• Vertical Resolution (A/D): 8
• Sample Rate: 2.5 GSa/s (single); 1.25 GSa/s (dual channel)
• Record Length: 40 M
• Waveform Refresh Rate: 75,000 wfms/s
• Display: 8" Color LCD, 800x600 pixels
• Sample Rate / Relay Time Accuracy: ±1 ppm
• Input Coupling: DC, AC, GND
• Input Impedance: 1MΩ ±2%, in parallel with 15pF ±5pF; 50Ω ±2%
• Horizontal Scale (s/div)): 1ns/div - 1000s/div, step by 1 - 2 - 5
• Vertical Sensitivity: 1mV/div - 10V/div (at input)
• Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232
• Trigger Mode: Auto, Normal, and Single
• Waveform Math: +, -, *, /, FFT, FFTrms, Intg, Diff, Sqrt, and user defined function, digital filter (low pass, high pass, band pass, band reject)
• Communication Interface: USB host, USB device, Trig Out (P/F), LAN, PictBridge, and VGA (option), WiFi (option)
• Power Supply: 100V - 240V AC, 50/60Hz, CAT II
• Fuse: 2A, T class, 250V
• Battery (option): 3.7V, 13200mA
• Dimensions: 340 x 177 x 90 mm

Resources & Downloads

• SCPI Protocol for XDS3000 series 2channels DSO (.pdf)
• USB driver for XDS3000 Series Digital Oscilloscope (.zip)
• USB driver for all series OWON DSO and AWG (.zip)
• PC software for OWON XDS Series n-in-1 DSO (.zip)
• app for OWON XDS Series n-in-1 DSO (.zip)
• LabVIEW development case for XDS Series DSO (.zip)
