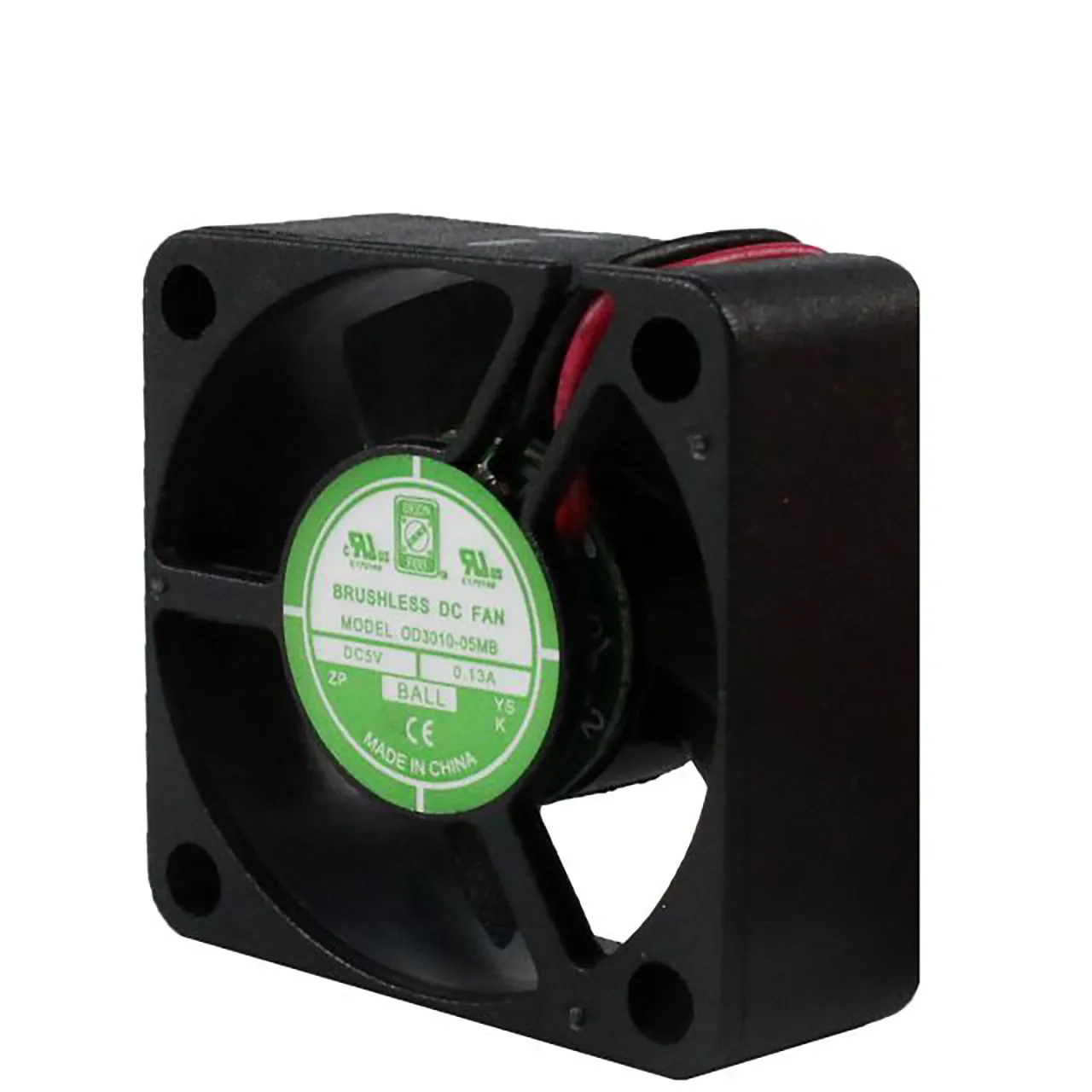

30 mm x 30 mm x 10 mm Tube Axial Fan 5 VDC Ball Bearing 3.5CFM 23.1dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$11.850

In Stock: 0

Quantity	Unit Price	You Save	Discount
5+	$11.850	-	-
25+	$10.950	0.90	7.59%
100+	$10.150	1.70	14.35%

Features

Voltage Rating: 5 VDC
Height: 30 mm
Width: 30 mm
Depth: 10 mm
Air Flow (CFM): 3.5
Bearing: Ball
Current Rating: 180 mA
Power Rating: 0.90 W
Agency Approvals: UL, CUL, TUV, CE
Noise (dBA): 23.1
Termination: 12" Wires
Product Type: 30mm x 30mm DC Fan
Speed: 8000 rpm
Maximum Pressure: 0.15 in.
Motor Drive Type: Brushless DC, Auto Restart, Impedance Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 8000 rpm.
