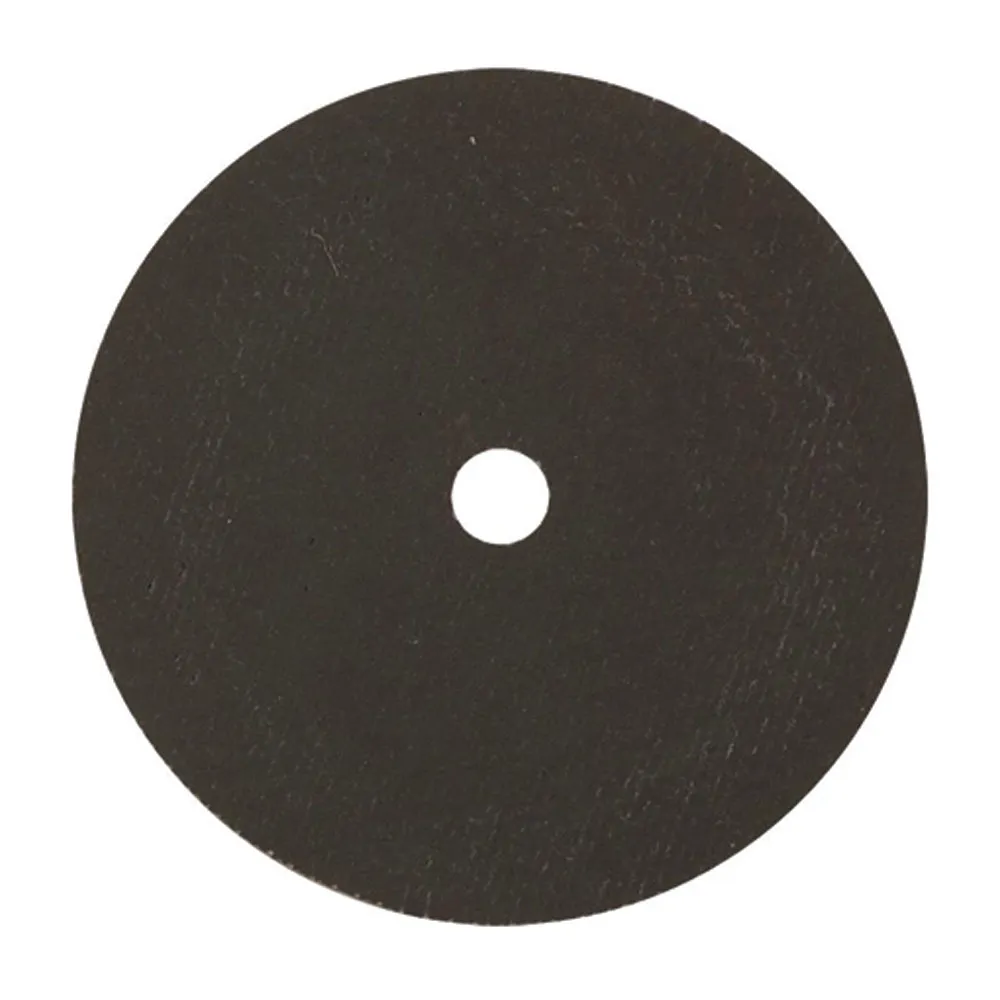

30 mm Epoxy Disc RFID Tag

This is a passive read only RFID tag. It holds a unique number that can be read by an RFID reader. The frequency and protocol must match the reader you are using.

Features

• Laminated Epoxy
• Good chemical stability

Applications

• Access Control
• Anti-counterfeiting
• Asset Tracking

Specifications

• Unique - 64 bit read only ID
• Operating Frequency: 125 kHz ± 6 kHz
• Communication: EM4100 Protocol
• Center Hole: 0.125 in (3.2 mm)
• Dimensions: 1.18 x 0.039 in (30 x 1 mm)
• Operating temp range: -40 to +185 °F (-40 to +85 °C)

Compatible Readers

• USB RFID Card Reader Module
• Serial RFID Card Reader Module
• USB RFID Card Reader Module & 4 Tag Sampler Kit
• Serial RFID Card Reader Module & 4 Tag Sampler Kit

Downloads & Resources

• 30 mm Epoxy Disc RFID Tag Datasheet
