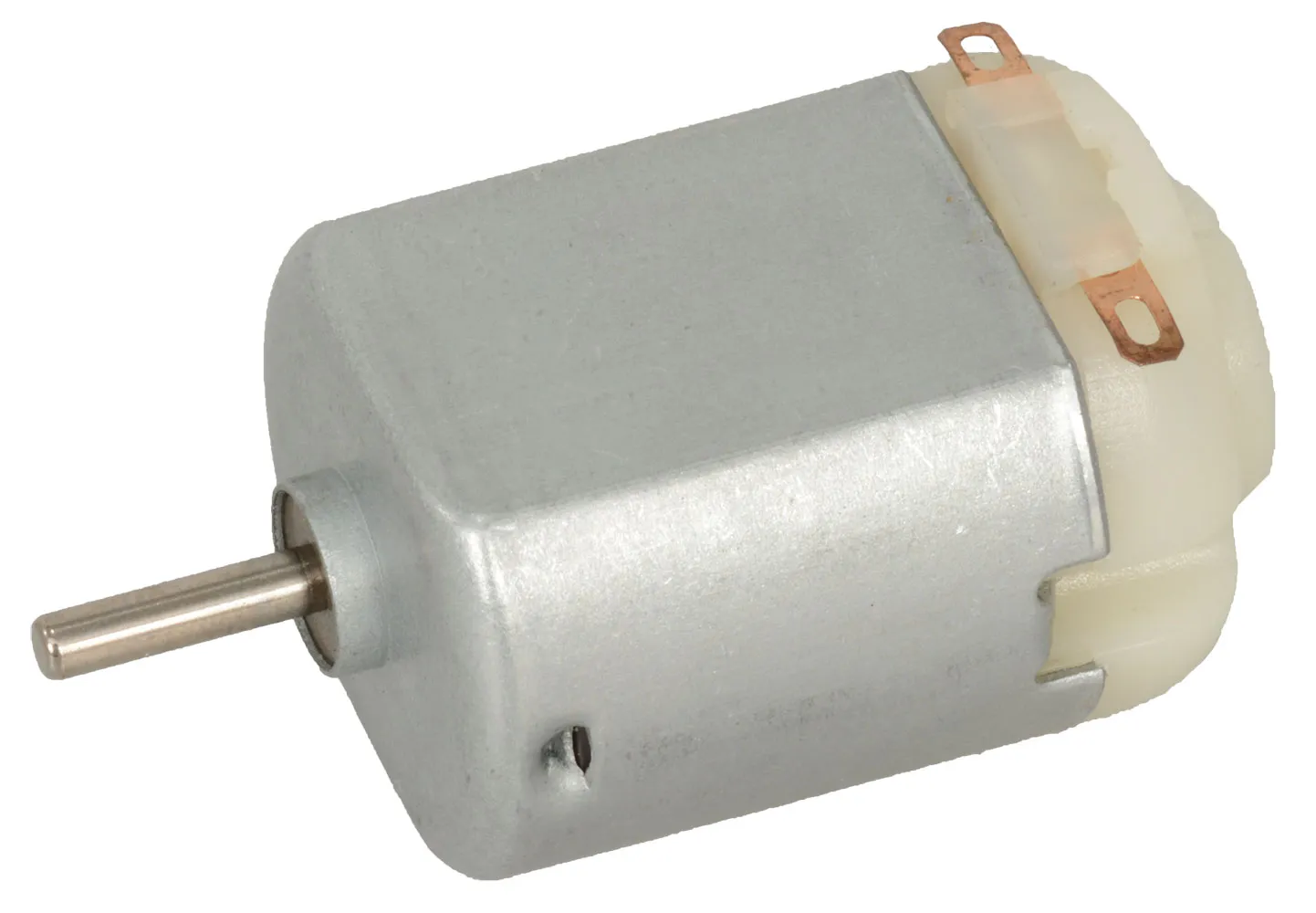

3 Volt DC Motor - 13,200 RPM

Features


  • Nominal voltage: 3VDC
  • Voltage range: 1.5 - 3VDC
  • Current @ maximum efficiency: 0.95A
  • Speed @ maximum efficiency: 13,200 RPM
  • Torque @ maximum efficiency: 8.4 g-cm
  • Efficiency: 40.0%
  • Terminal type: 0.09" solder tabs
  • Shaft diameter: 0.08"
  • Shaft length: 0.37"
  • Size: 0.79" diameter x 1.13" depth

    • Dimensions & Appearance

    Dimensions:.79"Dia. x 1.1
    Shaft Diameter:0.08 in.
    Shaft Length:0.37 in.
    Body Diameter:0.79 in.
    Body Length:1.1 in.

    Input

    Input Voltage Range:1.5 VDC to 3 VDC

    Features

    Current @ Max. Efficiency (A):0.95
    Speed @ Max. Efficiency (RPM):13200
    Torque @ Max. Efficiency (g-cm):10.3
    Terminal Type:0.09"/Solderable
    Efficiency:40%
    Voltage Rating:3 VDC
    ,
