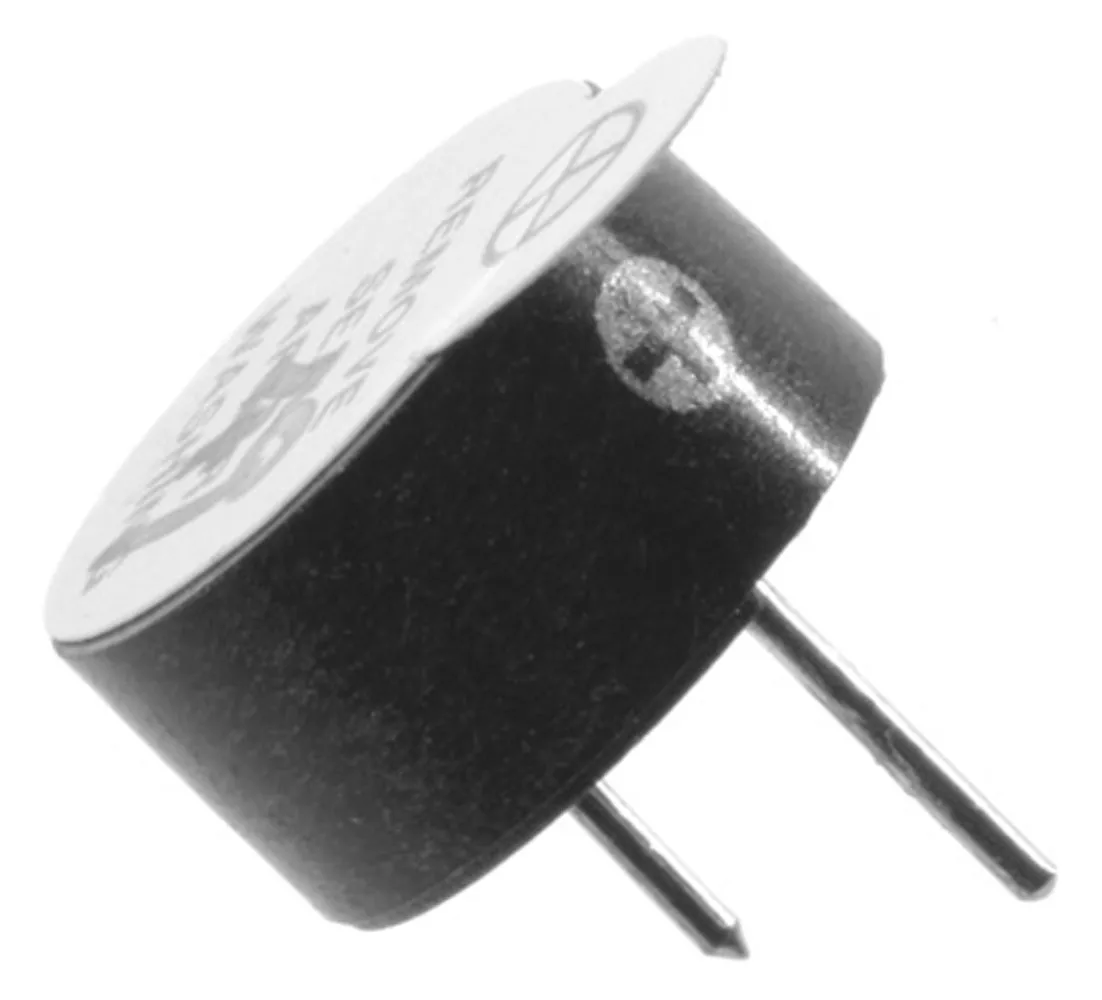

3 VDC Magnetic Buzzer 2700 Hz Single Tone

Specifications

  • Operating voltage: 3 VDC @ 30 mA
  • Voltage range: 2 to 5 VDC
  • Frequency: 2700 Hz ±200
  • Sound level: 80 dB
  • Dimensions: 5mm H x 9.5mm Diameter
  • Connection: 2-pin, 5mm pitch

Dimensions & Appearance

Diameter:0.37 in.
Height:0.2 in.

Output

Output:80 dBA

Features

Voltage Range (Vp-p):2 to 5
Voltage Rating:3 V
Frequency:2700 Hz
Current Rating:30 mA
,
