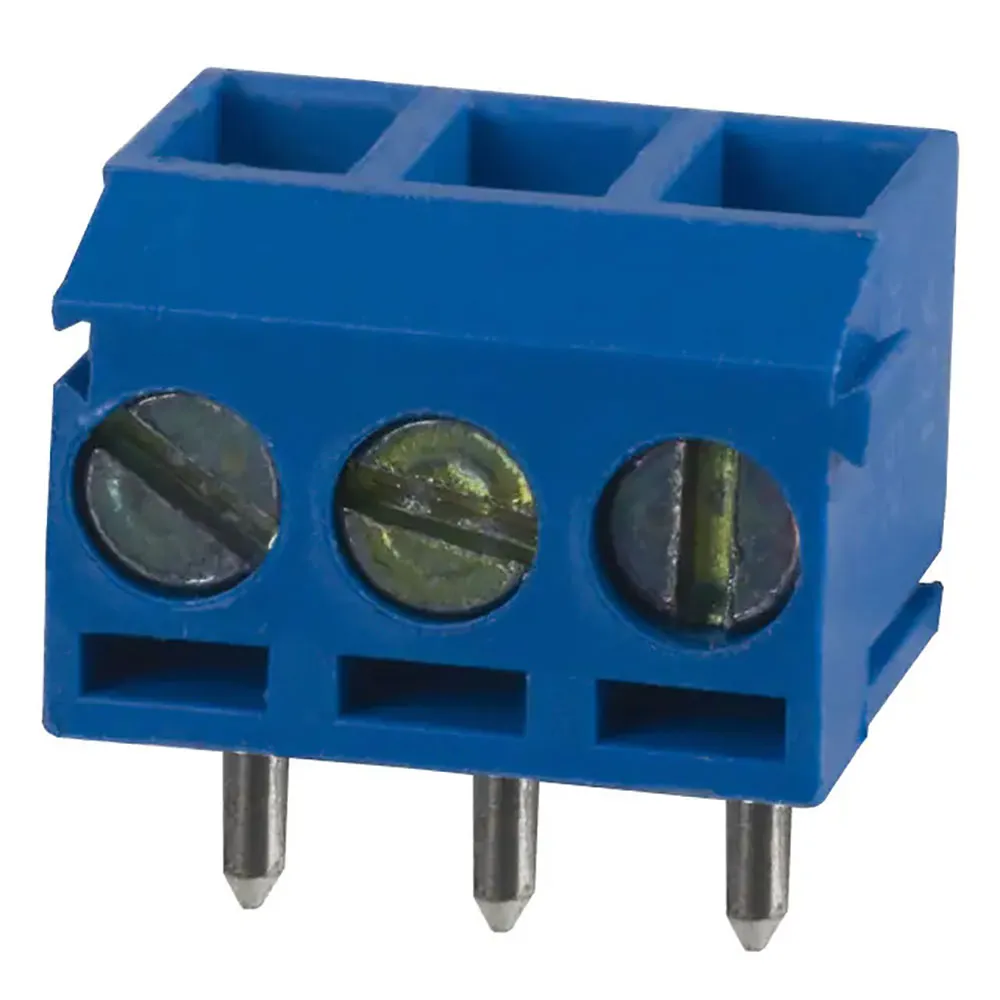

3 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.5mm) Through Hole

Specifications

  • Series: OSTTF
  • Positions Per Level: 3
  • Pitch: 0.138" (3.5 mm)
  • Mating Orientation: Vertical with Board
  • Wire Gauge: 16-26 AWG
  • Mounting Type: Through Hole
  • Wire Termination: Screw - Leaf Spring, Wire Guard
  • Feature: Interlocking (Side)
  • Color: Blue
  • Operating Temperature: -30°C to 105°C
  • Housing Material: Thermoplastic
  • Contact Material - Plating: Tin plated Brass
  • Clamp Material - Plating: Stainless Steel
  • Screw Material - Plating: Steel - Zinc Plated
  • Torque - Screw: 0.2 Nm (1.7 Lb-In)
  • Screw Thread: M2
  • Number of Levels: 1
  • Current: 10 A
  • Voltage: 125 V

Product Identification

Manufacturer Series:ValuePro

Dimensions & Appearance

Mounting:Through Hole
Body Orientation:Straight

Features

Number of Rows:1
Number of Positions:3
Pitch:0.138 in., 3.5 mm
Top Termination:Screw, Leaf Spring, Wire Guard
Gender:Female
Description:Header
Voltage Rating:125 VAC
Current Rating:10 A
,
