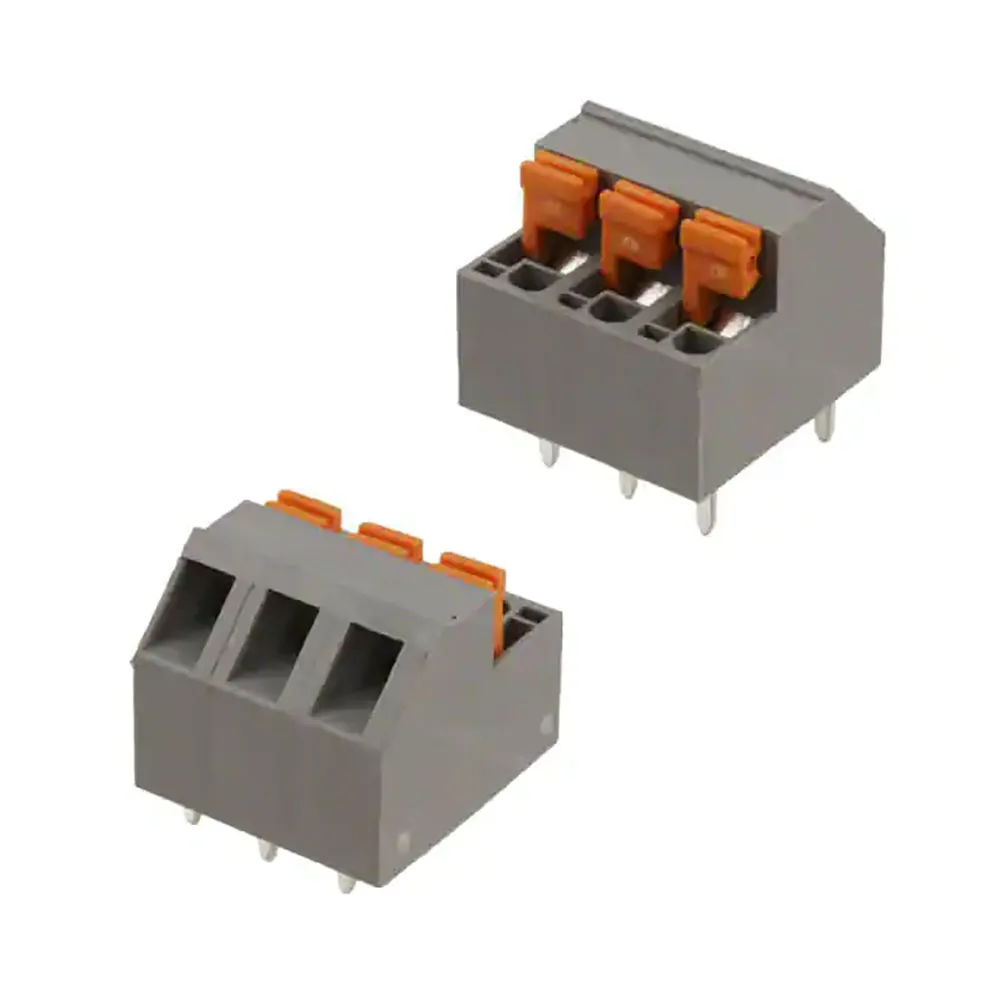

3 Position Wire to Board Terminal Block Angled 0.2" (5.08mm) Through Hole

Specifications

  • Series: OSTHD
  • Positions Per Level: 3
  • Pitch: 0.2" (5.08 mm)
  • Mating Orientation: Angled
  • Wire Gauge: 16-22 AWG
  • Mounting Type: Through Hole
  • Wire Termination: Screw - Leg Spring, Push-In Spring
  • Feature: Lever Actuated
  • Color: Gray
  • Operating Temperature: -30°C to 105°C
  • Housing Material: Thermoplastic
  • Contact Material - Plating: Brass - Tin plated
  • Clamp Material - Plating: Stainless Steel
  • Screw Material - Plating: n/a
  • Torque - Screw: n/a
  • Screw Thread: n/a
  • Number of Levels: 1
  • Current: 12 A
  • Voltage: 250 V

Dimensions & Appearance

Mounting:Through Hole
Body Orientation:Angled

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-30°C

Features

Number of Rows:1
Number of Positions:3
Housing Color:Gray
Bottom Termination:PC Pins
Top Termination:Screwless
Pitch:0.200 in., 5.08 mm
Gender:Female
Contact Plating:Tin
Housing Material:Thermoplastic
Description:Header
Wire Gauge (AWG):16-22
Voltage Rating:250 VAC
Current Rating:12 A
,
