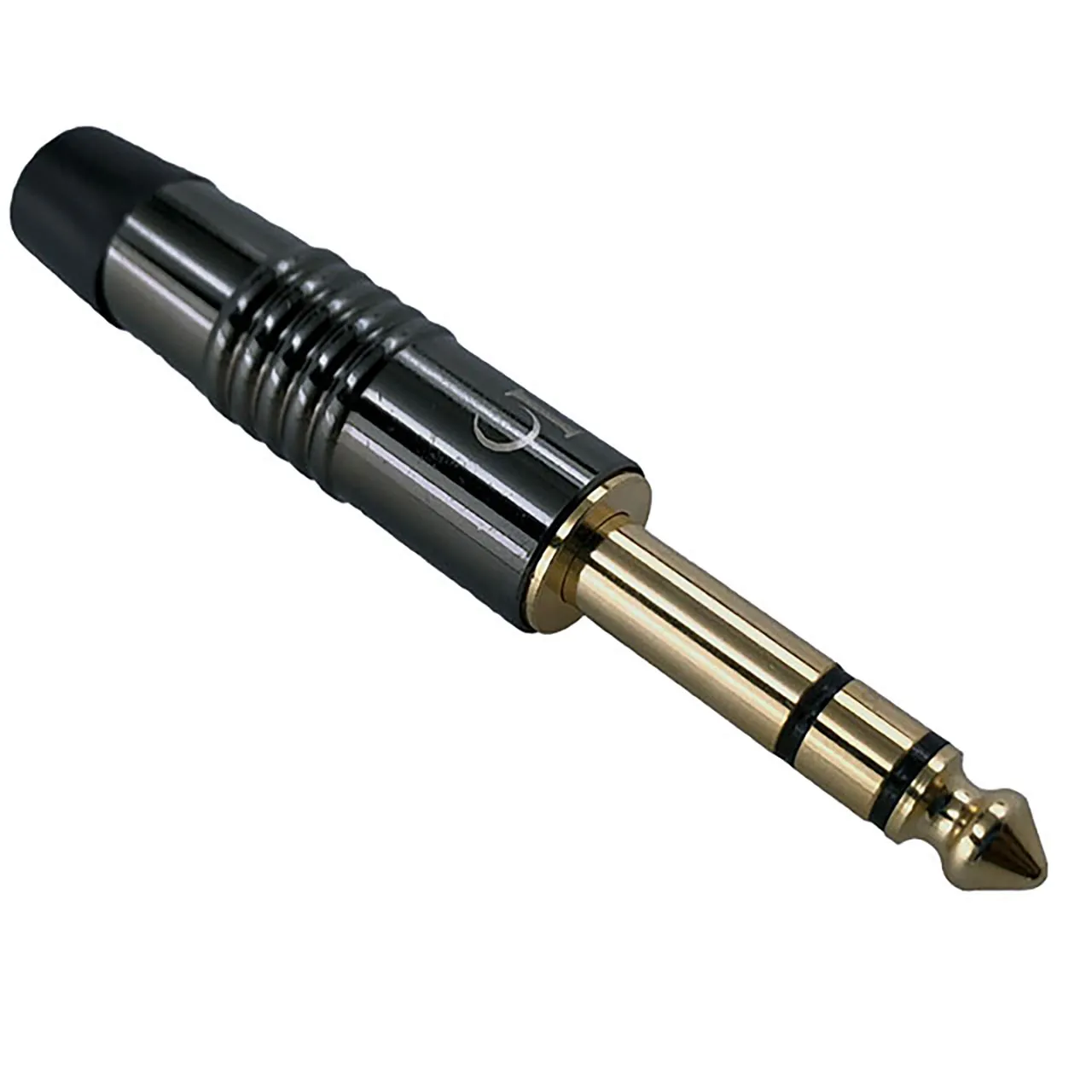

3 Pole (TRS) Gold-Plated 1/4" Phone Plug for Audio Applications Brass Housing

Features

  • Capacitance Between Contacts: <7.5pF
  • Capacitance Between Contacts and Shield: < 6pF
  • Contact Resistance: Depends on mating connector
  • Insulation Resistance: > 100MΩ
  • Dialectric Strength: 500V
  • Current Rating: 15A/125V
  • Number of Pins/Poles: 3
  • Gender: Male
  • Contact Material: Brass
  • Contact Platng: Silver
  • Shell Material: Brass
  • Shell Color: Nickel
  • Wiring: Solder Contacts
  • Plug: Gold Plated

Overview

Suitable for guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

The TCH Series ¼" plugs feature a nickel tin plated brass shell housing designed to allow for smoother plugging and unplugging. Gold plated plug contacts and silver plated wire terminals are standard, as well as solder termination and a threaded housing assembly. They include an internal clamp that can be tightened onto the cable jacket to provide strain relief while the black rubber boot protects the junction from excessive bending.

These ¼" plugs meet the most recent requirements for highest density jack fields (15.88), so they can be used in a variety of applications including use with various instruments and patch bays for home or professional studios.

Product Identification

Product Type:1/4" TRS Connector
Manufacturer Series:T-Series

Dimensions & Appearance

Dimensions:0.250 in., 6.35 mm
Body Orientation:Straight
Mounting:Free Hanging (In-Line)
Color:Nickel

Features

Number of Contacts:3
Contact Material:Brass
Housing Material:Brass
Termination Method:Solder Contacts
Contact Plating:Silver
Gender:Plug
Voltage Rating:125 VAC
Current Rating:15A
,
