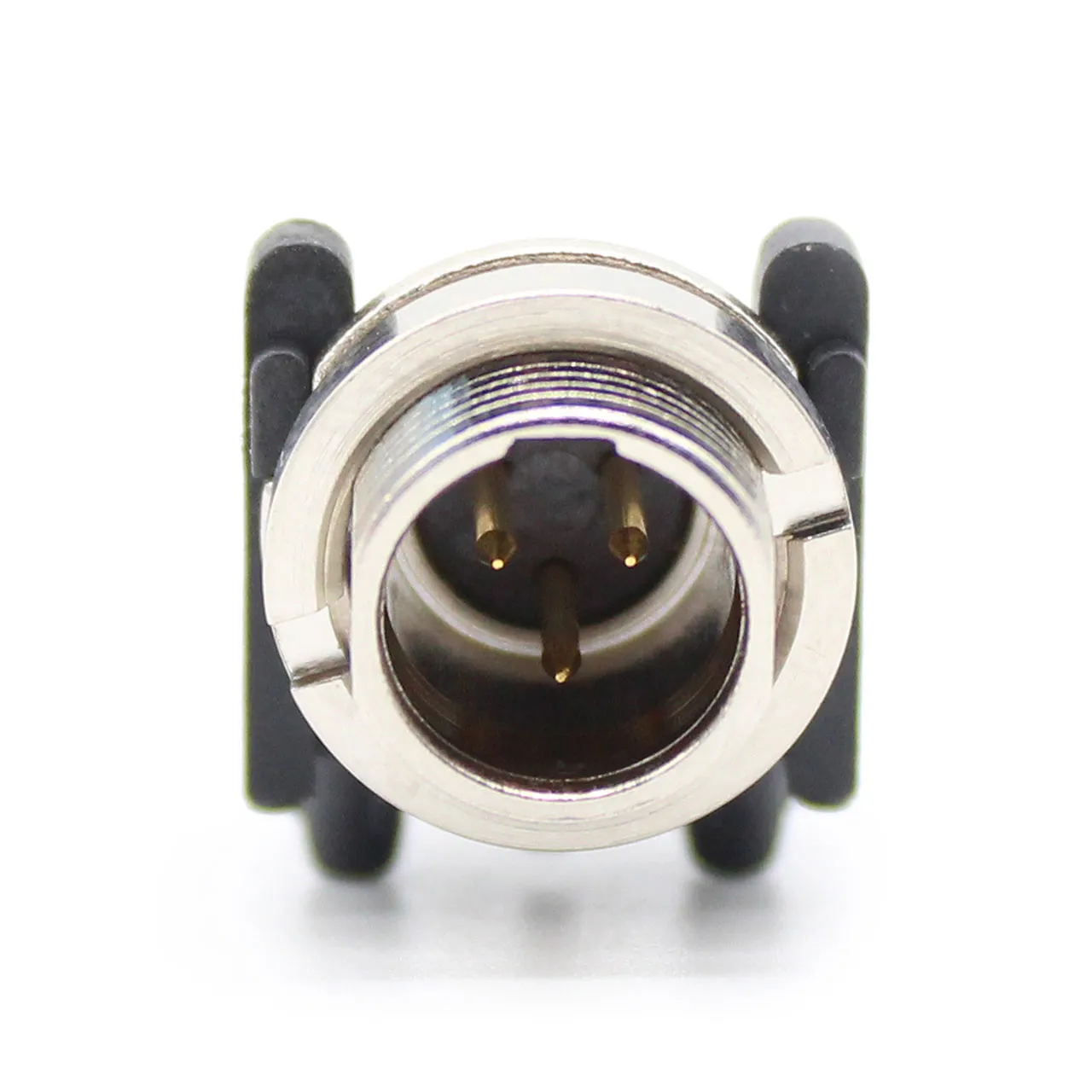

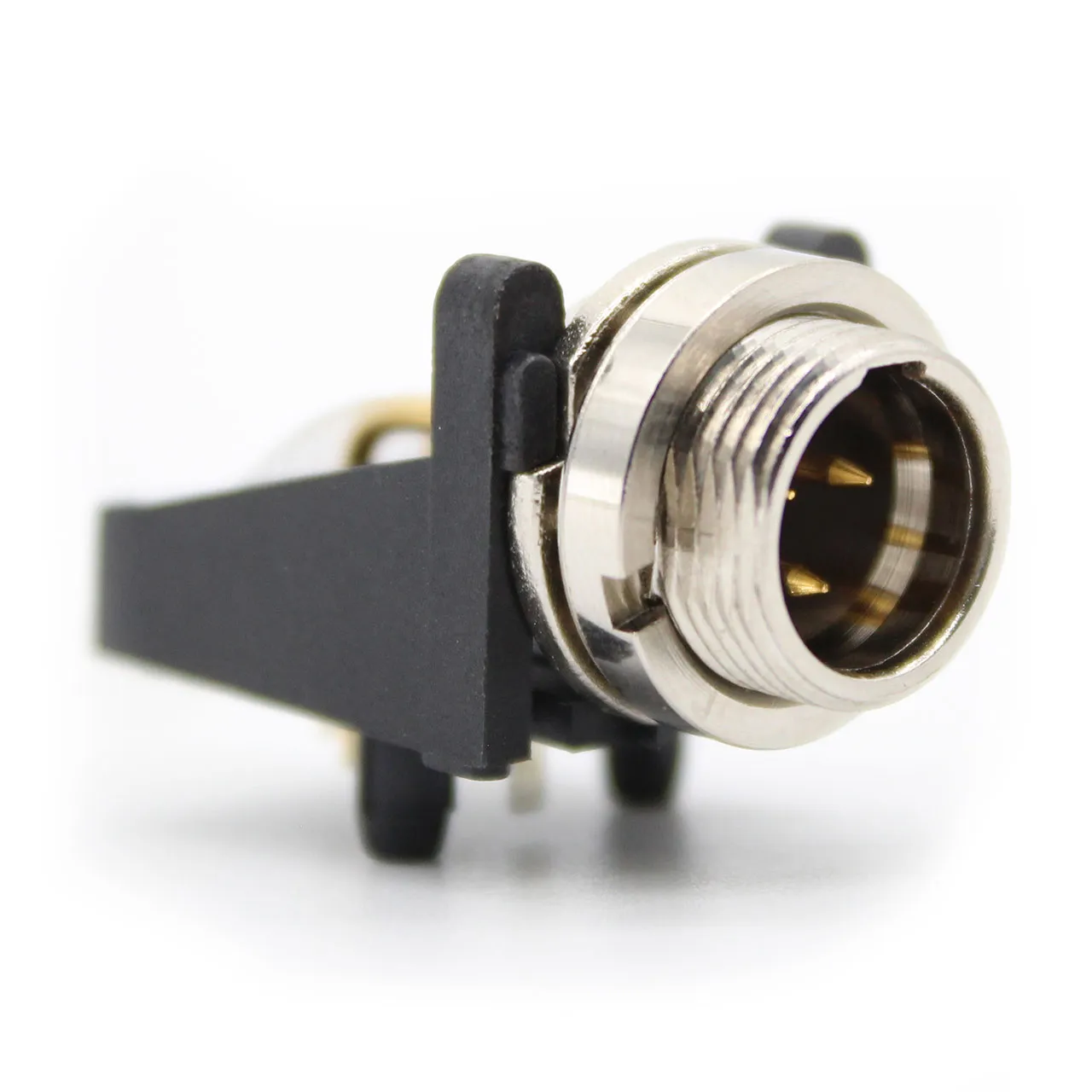

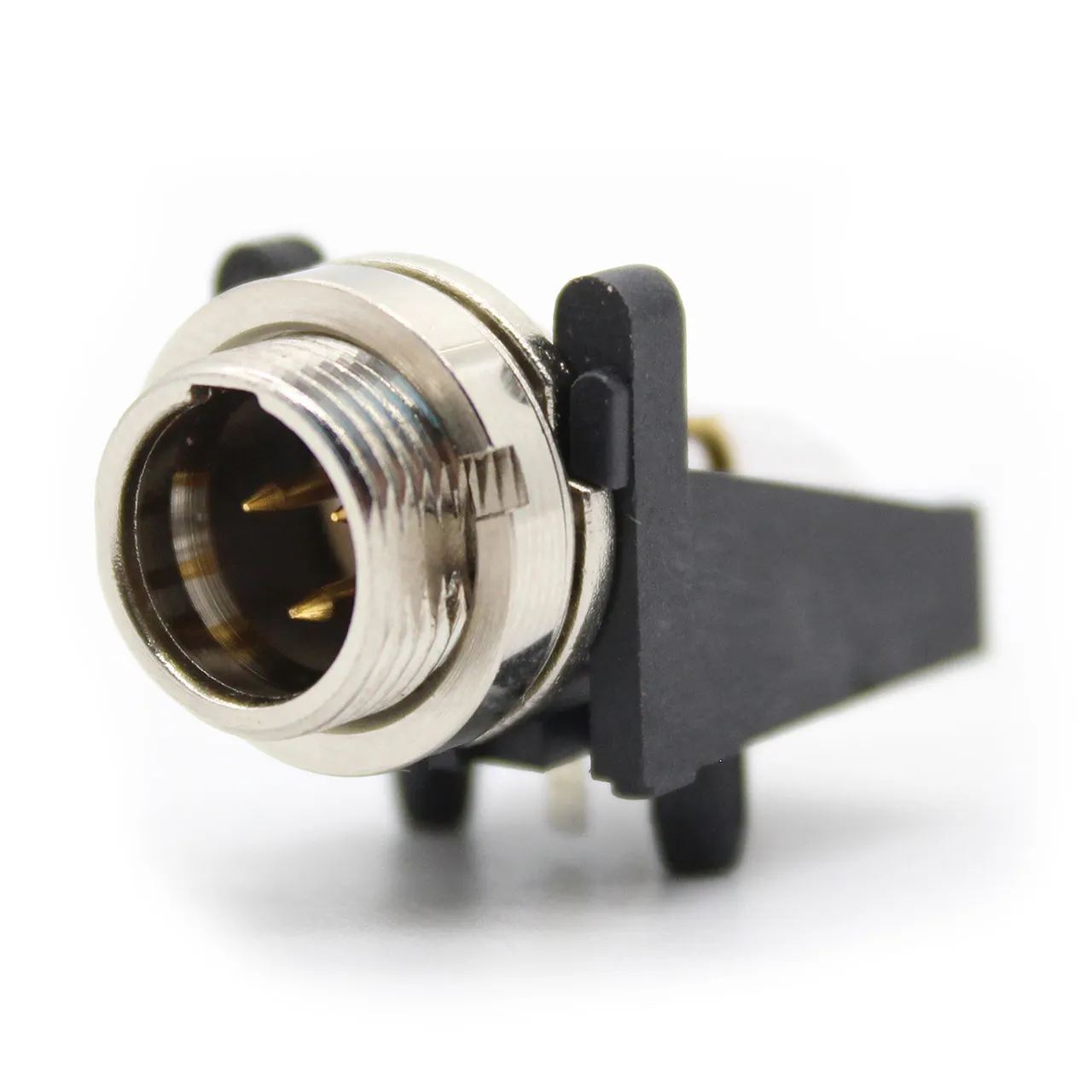

3 Pin Male Mini XLR Panel Mount with Slotted Round Nut - Horizontal PCB Mount

Features

  • Contact Resistance: ≦ 0.05 Ω
  • Insulation Resistance: >1 GΩ
  • Dialectric Strength: 1000V @ 60S
  • Current Rating: 5A / 50V AC
  • Number Of Poles/Pins: 3
  • Gender: M
  • Contact Material: Brass
  • Contact Plating: Gold
  • Shell: Zinc Alloy
  • Shell Color: Nickel
  • Wiring: PCB Mount, Horizontal
  • Flammability Rating: UL94V-0

Overview

Locking 3 pin chassis connector with metal shell, gold plated pins, and horizontal PCB mount for audio, lighting control, industrial automation, and test equipment.

,
