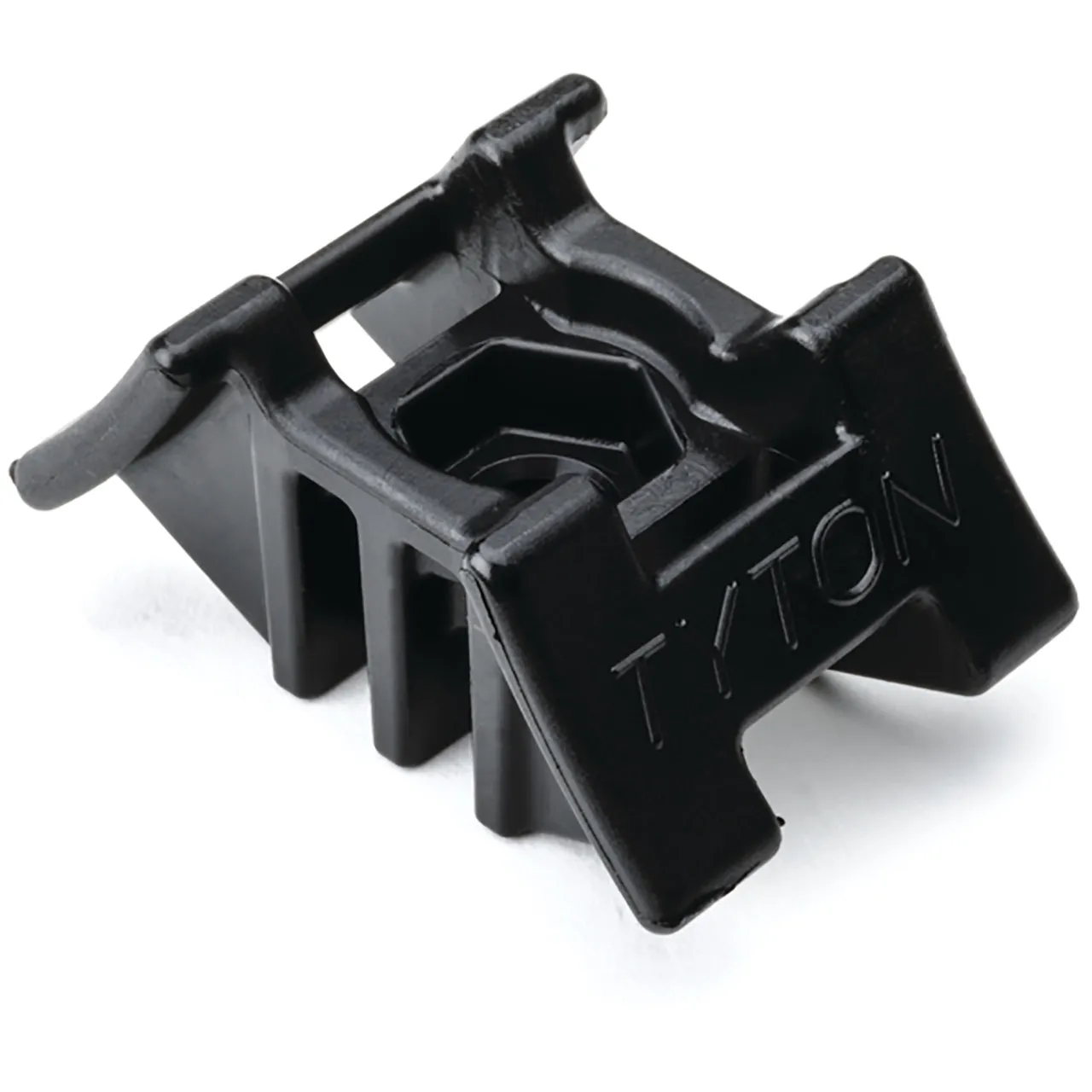

2-Way Saddle Mount, 3.5" Max Bundle Diameter, 0.25" Stud Diameter, PA66HIRHSUV, Black, 500 per Package

Features

• Separates bundles from wear and chafing, providing additional longevity. Hexagonal retention feature (S2HM25) captures a bolt or nut requiring tool access from the back side only. A socket counterbore allows securing with a socket wrench from the top side for use with a weld stud or bolt (S2CM25.) Made from impact modified, heat stabilized, UV resistant material making it ideal for heavy duty applications.
• Product Type: Mounts Secured with Mechanical Fasteners - Multiple Bundles

Technical Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 3.5"
• Bundle Diameter Max. (Metric): 89.0 mm
• Cable Tie Width Max. (Imperial): 0.5"
• Fixation Method: Screw Mounting and Rivet
• Focused Markets and Industries: Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Defense Industry
• For Cable Ties: T50 - T250
• Height H (Imperial): 0.90"
• Height H (Metric): 23.0 mm
• Height H2 (Imperial): 0.60"
• Height H2 (Metric): 15.0 mm
• Length L (Imperial): 1.80"
• Length L (Metric): 45.0 mm
• Mounting Hole Diameter D (Imperial): 0.24"; 0.25 (hexagonal)"
• Mounting Hole Diameter D (Metric): 6.0 mm; 6.35 mm (hexagonal)
• Mounting Hole Diameter D Max. (Imperial): 0.25"
• Mounting Hole Diameter D Max. (Metric): 6.0 mm
• Mounting Hole Diameter D Min. (Imperial): 0.24"
• Mounting Hole Diameter D Min. (Metric): 6.0 mm
• Mounting Hole Shape: Round
• Mounting Screw Type: 1/4" (M6) Screw
• Stud Diameter (Imperial): 0.25"
• Stud Diameter (Metric): 6.35 mm
• Weight (Lbs) per 1 Content Unit without Packaging: 0.0217816714856
• Width W (Imperial): 1.2"
• Width W (Metric): 30.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306219484

Overview

HellermannTyton's saddle mount can be installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, the H-profile on the saddle mount provides a tight circumferential loop on large and small bundles. Cable ties up to 1/2" wide are used to secure the bundles.
