2-Watt Unregulated DC-DC Converter 15V 134mA Output 5V Input SIP7 Package

Features

• SIP7 package with industry standard pinout
• Operating temperature range -40 to +105°C
• Compliant to BS EN/EN55032 radiated Class A without additional components
• High efficiency
• Protections: Short circuit (continuous), Over load
• 3KV DC I/O isolation
• Low cost
• 3-year warranty

Applications

• Telecom/datacom system
• Wireless network
• Industrial control facility
• Instrument
• Analyzer
• Detector
• Data switch

Overview

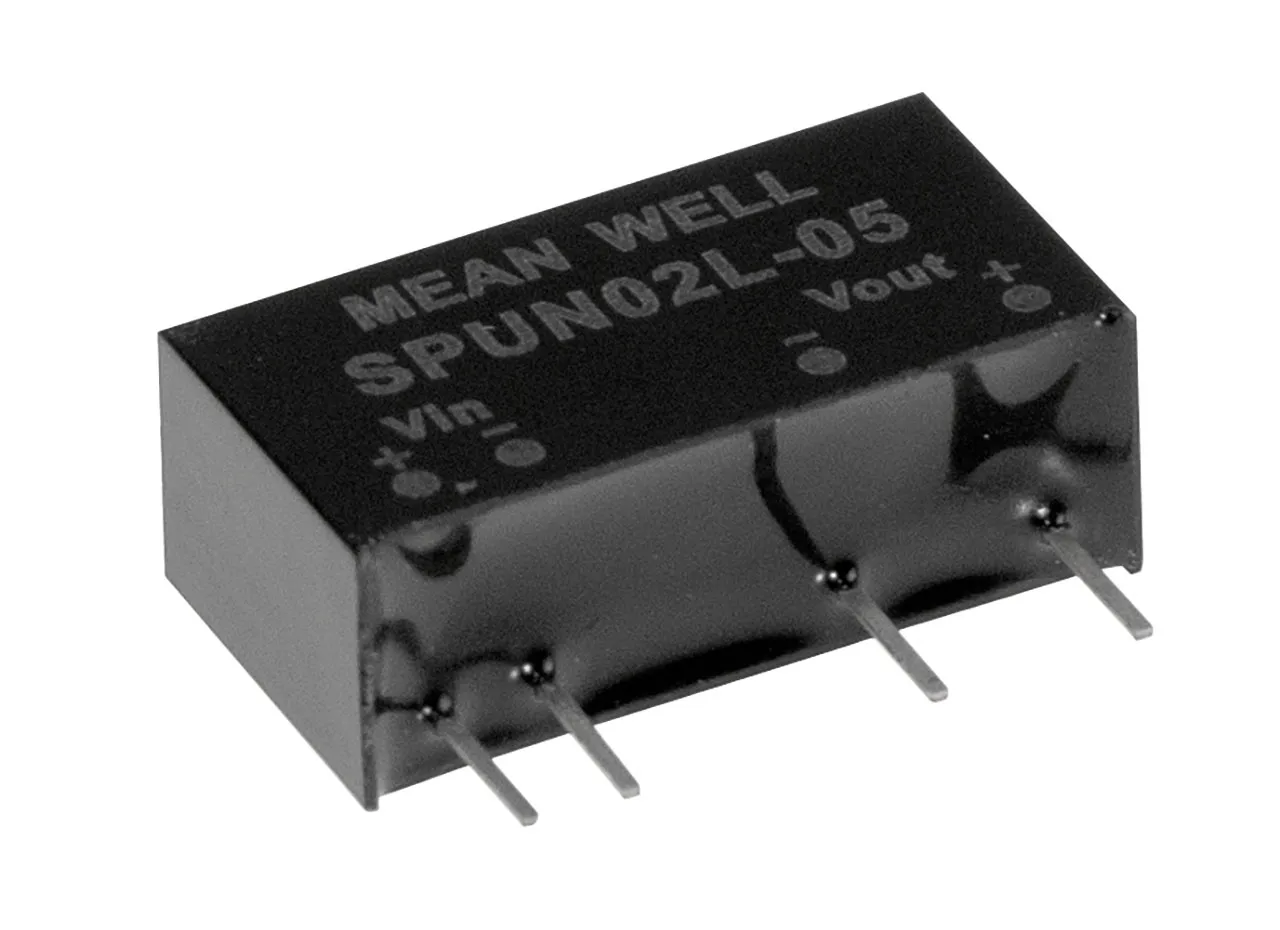

The SPUN02 and DPUN02 series are 2-watt isolated and unregulated PCB module type DC-DC converters with industry standard SIP7 package. It features international standard pins, a high efficiency up to 87%, a wide working temperature range, 3KV DC I/P-O/P isolation voltage, complies with BS EN/EN55032 radiated Class A without additional components, short circuit protection, and more.

The models accommodate different input voltages of 5V/12V/24V ±10%, and various output voltages of 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and so on.
