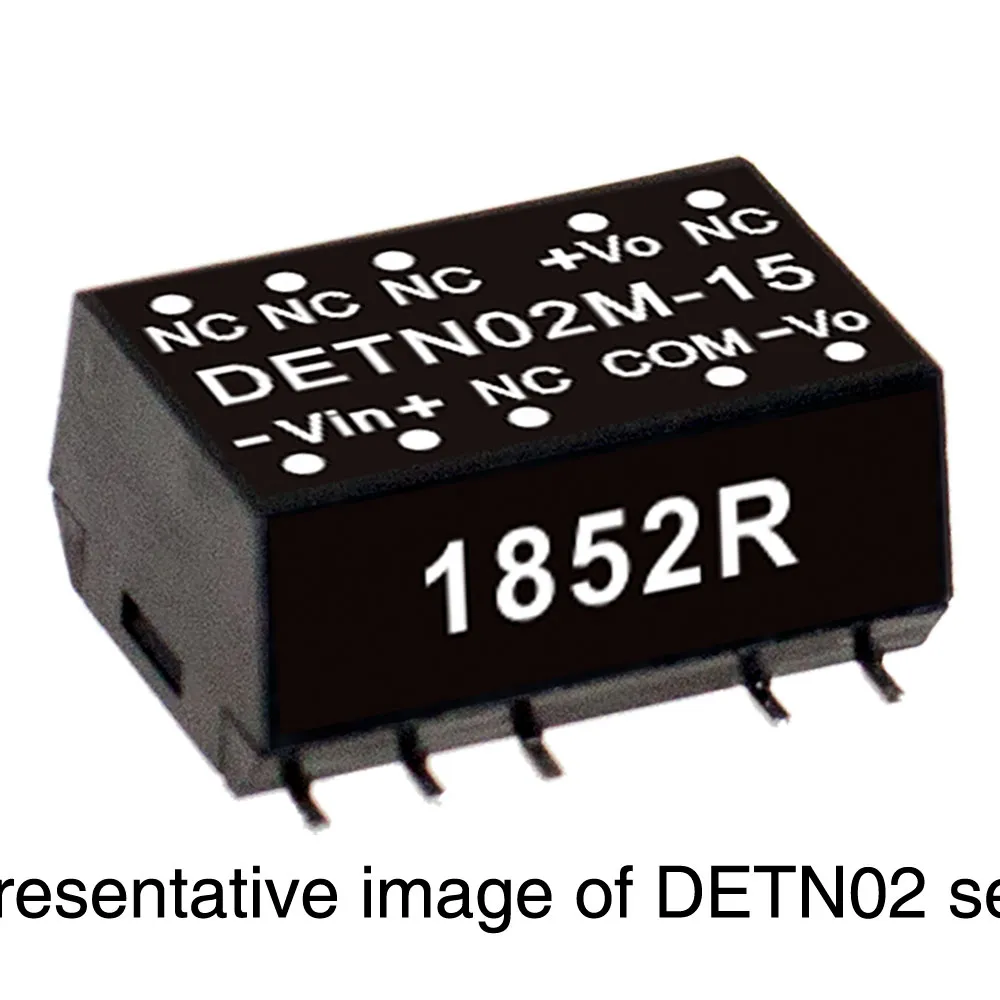

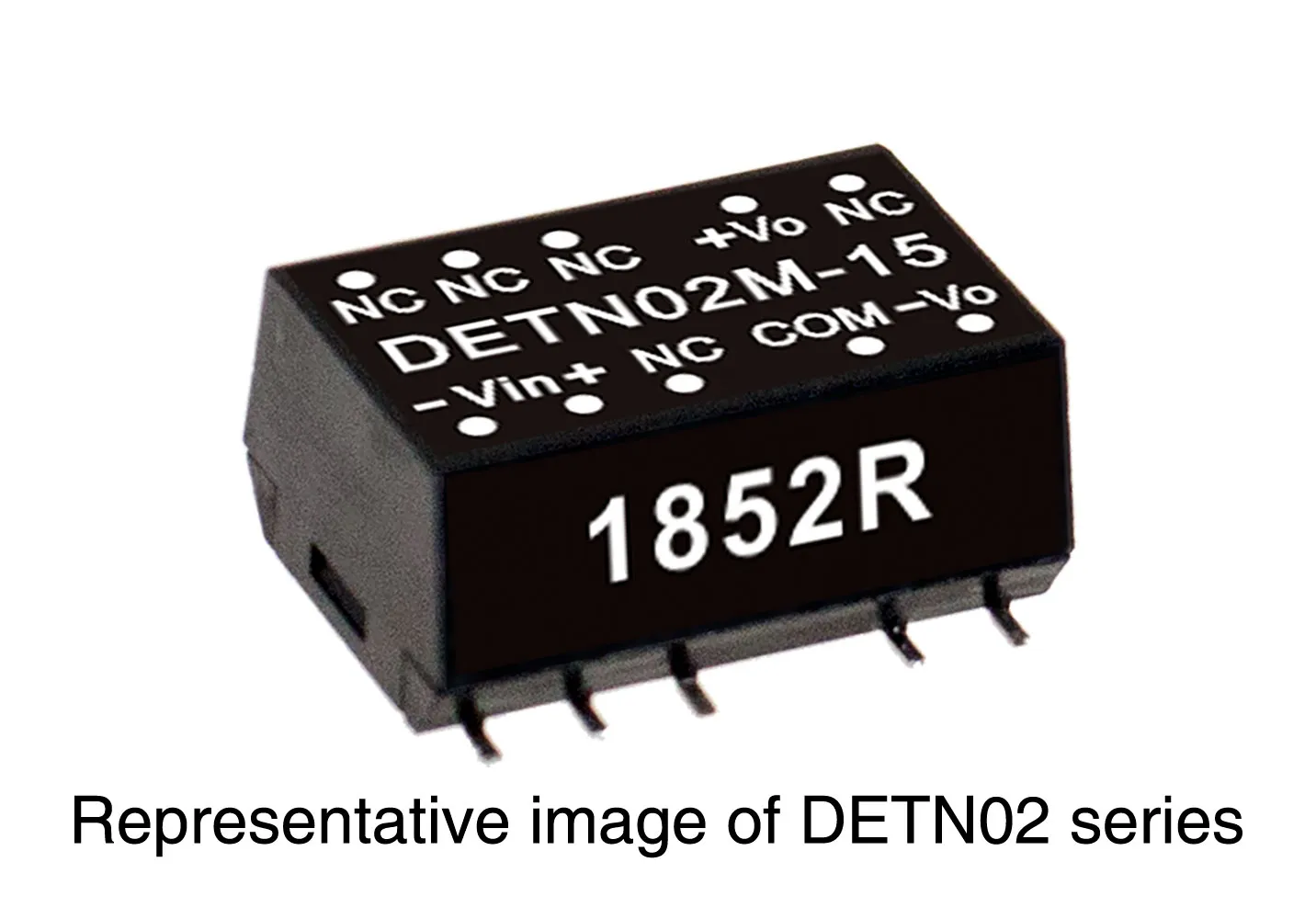

2W Dual Output ±15V ±6-67mA Isolated Regulated DC-DC Converter 24Vin SMD Package

Output: ±15 Volts DC @ ±6 to 67 mA

Features

  • SMD package with industry standard pinout
  • Operating temperature range -40 to +100°C
  • Comply to EN55032 radiated Class A without additional components
  • High efficiency up to 80%
  • Protection: Short circuit
  • 3KVDC I/O isolation
  • Low cost
  • 3 years warranty

Applications

  • Telecom/Datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Manufacturer Series:DETN02
Product Type:DC to DC Unregulated Dual Output Converter SMPS

Compliance

Agency Approvals:CE, EAC

Dimensions & Appearance

Color:Black
Height:0.28 in.
Mounting:Surface Mount
Length:0.6 in.
Width:0.43 In.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:SMD

Input

Maximum Input Current:0.104 A
Input Voltage:24 VDC
Input Voltage Range:21.6 VDC to 26.4 VDC

Output

Number of Outputs:2
Output Current:0.067 A
Additional Output Voltages (VDC):-15
Output Voltage:15 VDC
Output Connector Type:SMD

Features

Pins:10
Efficiency:80%
Power Rating:2 W
,
