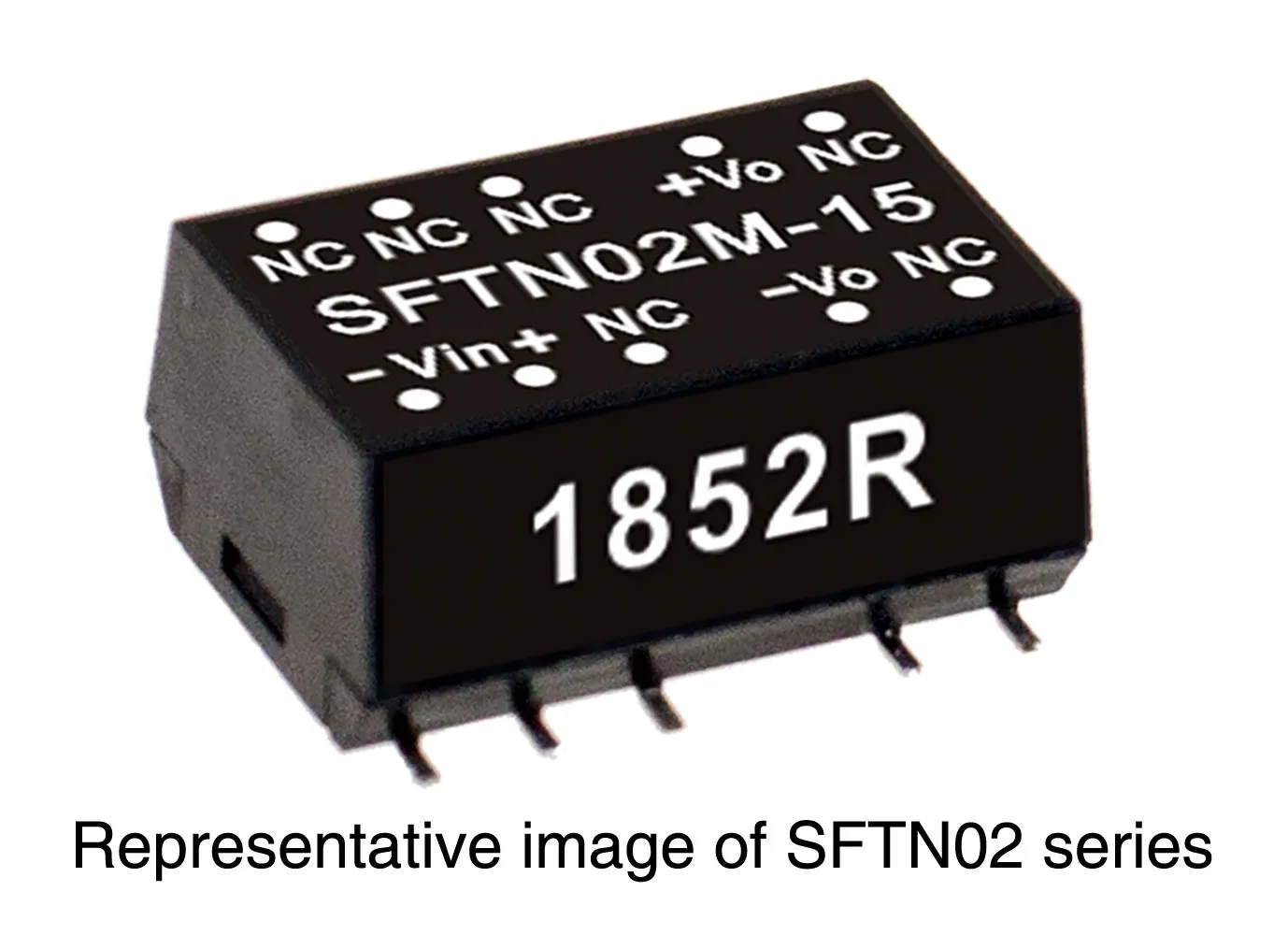

2W 5V 40-400mA Isolated Regulated DC-DC Converter 5Vin SMD Package

Output: 5 Volts DC @ 40 to 400 mA

Features

  • SMD package with industry standard pinout
  • Operating temperature range -40 to +100°C
  • Comply to EN55032 radiated Class A without additional components
  • High efficiency up to 82%
  • Protection: Short circuit
  • 3KVDC I/O isolation
  • Low cost
  • 3 years warranty

Applications

  • Telecom/Datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Product Type:DC to DC Unregulated Single Output Converter SMPS
Manufacturer Series:SFTN02

Compliance

Agency Approvals:CE, EAC

Dimensions & Appearance

Color:Black
Height:0.28 in.
Mounting:Surface Mount
Length:0.6 in.
Width:0.43 In.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:SMD

Input

Input Voltage Range:4.5 VDC to 5.5 VDC
Input Voltage:5 VDC
Maximum Input Current:0.513 A

Output

Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:SMD
Output Current:0.40 A
Additional Output Voltages (VDC):N/A

Features

Pins:10
Efficiency:78%
Power Rating:2 W
,
