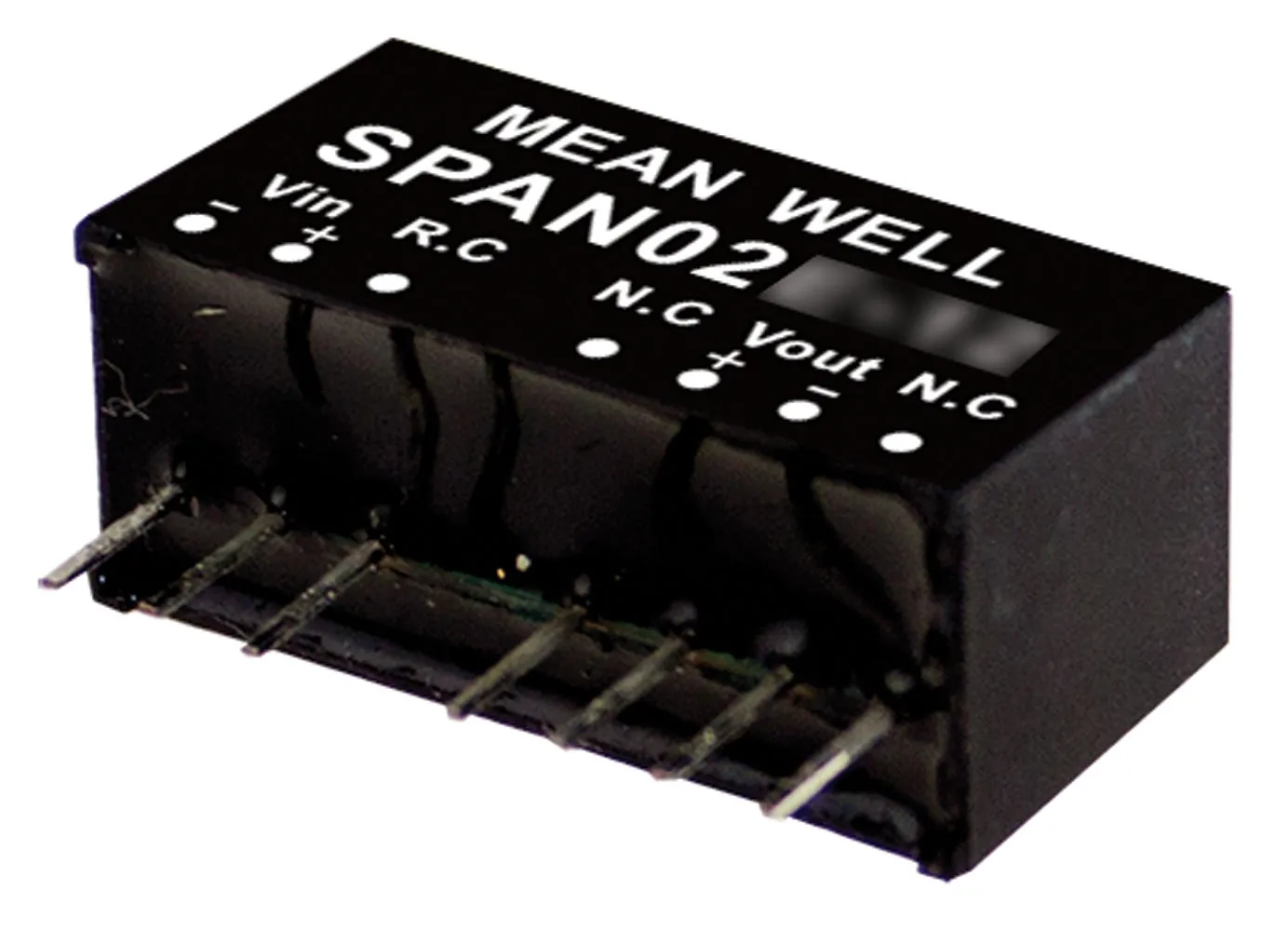

2W 5V 0.4A SIP-8 Isolated Regulated DC-DC Converter 5Vin

Output: 5 Volts @ 400 milliamps

Features

  • SIP8 package with industry standard pinout
  • 2:1 wide input range
  • Input voltage range: 4.5V to 9V
  • Line regulation: ±0.5%
  • Load regulation: ±0.5%
  • Operating temperature range: -40°C to +90°C
  • No minimum load required
  • Complies with EN55032 radiated Class A without additional components
  • High efficiency up to: 78%
  • Protections: Short circuit (continuous), overload
  • 1.5KVDC I/O isolation
  • 3 year warranty

Applications

  • Telecom and Datacom systems
  • Wireless networks
  • Industrial control facilities
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Type:Isolated
Product Type:DC-DC Regulated Single Output SMPS
Manufacturer Series:SPAN02

Dimensions & Appearance

Height:0.44 in.
Width:0.36 in.
Length:0.86 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C

Input

Input Voltage Range:4.5 VDC to 9 VDC
Input Voltage:5 VDC
Maximum Input Current:0.526 A

Output

Number of Outputs:1
Output Connector Type:SIP-8
Output Voltage:5 VDC
Output Current:0.40 A
Additional Output Voltages (VDC):N/A

Features

Pins:8
Efficiency:78%
Power Rating:2 W
,
