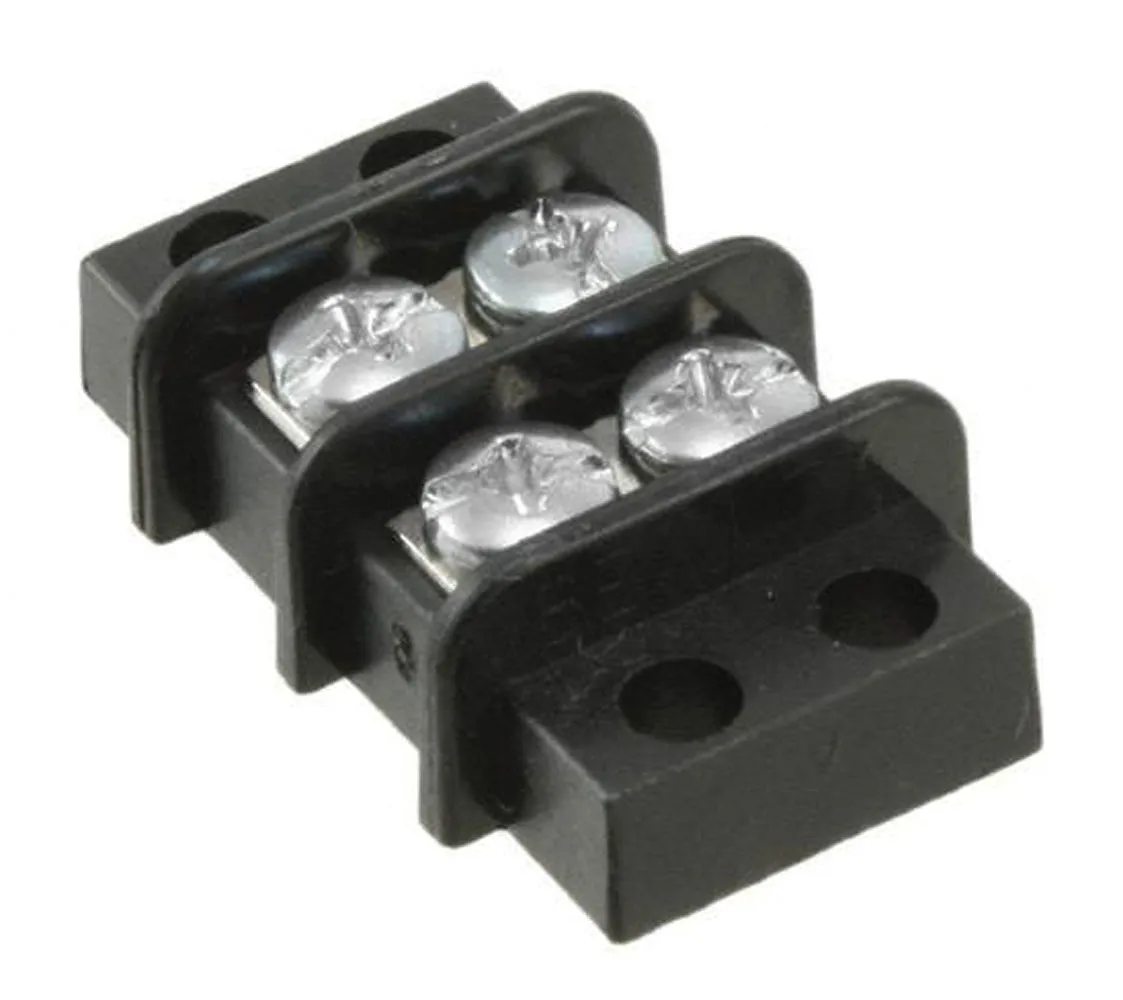

2-Position Double Row Barrier Strip Terminal Block 9.53mm Pitch
Product Identification
Product Type:Dual Row Barrier Strip
Manufacturer Series:Beau 38770
Dimensions & Appearance
Body Orientation:Straight
Mounting:Chassis, Panel
Depth:18.3 mm
Length:35.7 mm
Operating conditions
Maximum Operating Temperature:110°C
Minimum Operating Temperature:-40°C
Features
Number of Positions:2
Number of Rows:2
Bottom Termination:Closed Bottom w/ Flange
Housing Color:Black
Contact Material:Brass
Top Termination:Screw, M3.5
Contact Plating:Nickel
Pitch:0.375 in., 9.53 mm
Housing Material:Thermoplastic
Wire Gauge (AWG):14-22
Voltage Rating:300 VAC
Current Rating:15 A
