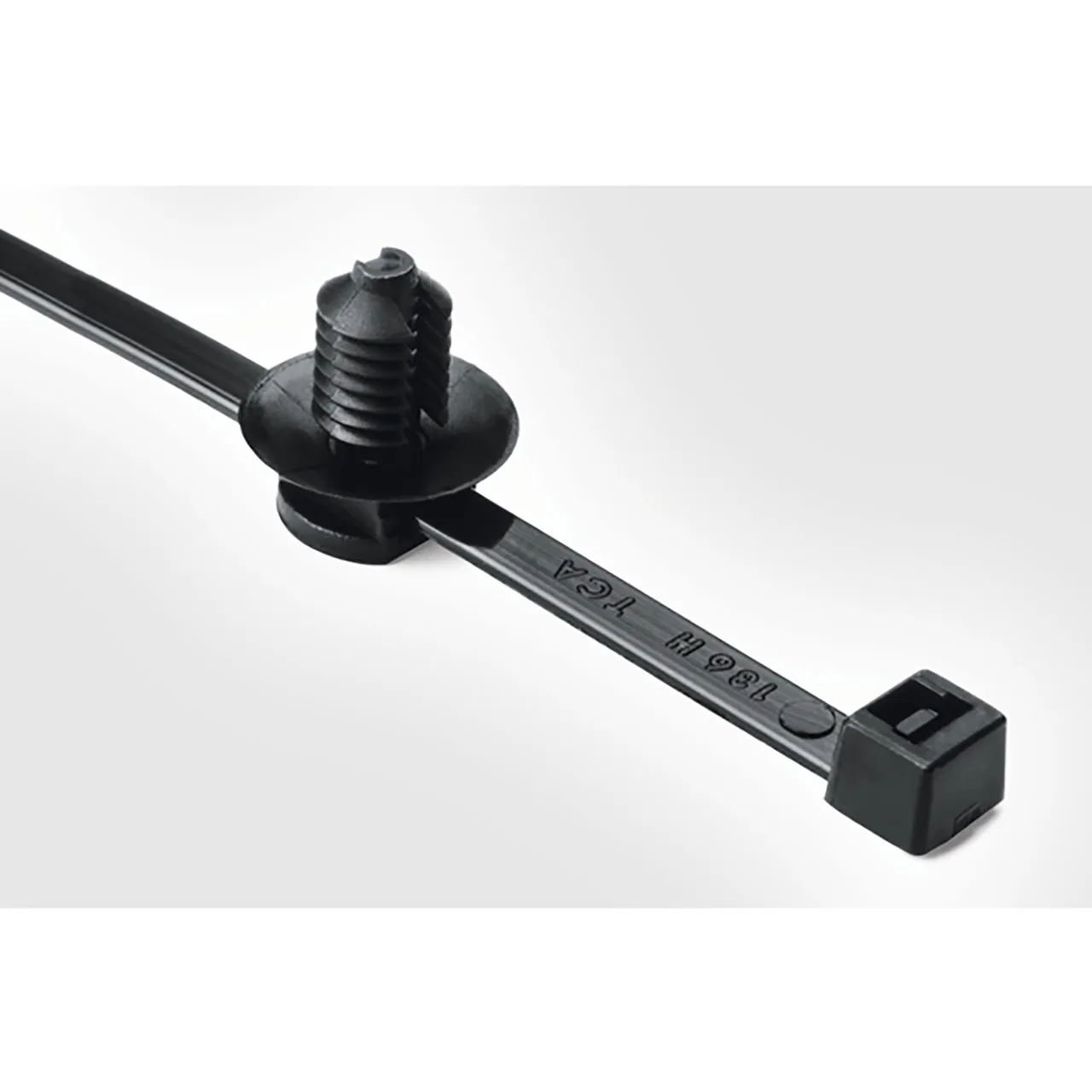

2-Piece Cable Tie with Fir Tree Mount, 8.0" Long, 0.26 - 0.28" Mounting Hole, PA66HS, Black, 500 per Package

Features

• Friction tab inside the fir tree allows the tie to sit in mount without falling out prior to installation. Fir tree provides low insertion effort yet demonstrates high extraction resistance. Disc feature prevents rattling in high-vibration applications and protects against debris ingress.
• Product Type: Fir Tree Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Anti rotation (Yes / No): NO
• Bundle Diameter Max. (Imperial): 1.77"
• Bundle Diameter Max. (Metric): 45.0 mm
• Bundle Diameter Min. (Imperial): 0.2"
• Bundle Diameter Min. (Metric): 5.0 mm
• Cable Tie Closure: plastic pawl
• Disc Diameter (Imperial): 0.63"
• Disc Diameter (Metric): 16.0 mm
• Fixation Method: Fir tree for round holes
• Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Shipbuilding; Defense Industry
• Height H (Imperial): 0.05"
• Height H (Metric): 1.2 mm
• Height H2 (Imperial): 0.44"
• Height H2 (Metric): 11.1 mm
• Length L (Imperial): 8.0"
• Length L (Metric): 202.0 mm
• Length L2 (Imperial): 0.46"
• Length L2 (Metric): 11.6 mm
• Length L3 (imperial): 0.69"
• Length L3 (metric): 17.5 mm
• Material Cable Tie: Polyamide 6.6 heat stabilized (PA66HS)
• Material Edge Clip: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Material Shortcut Cable Tie: PA66HS
• Material Shortcut Foot Part: PA66HIRHS
• Mounting Hole Diameter D (Imperial): 0.26 - 0.28"
• Mounting Hole Diameter D (Metric): 6.5 - 7.0 mm
• Mounting Hole Diameter D Max. (Imperial): 0.28"
• Mounting Hole Diameter D Max. (Metric): 7.0 mm
• Mounting Hole Diameter D Min. (Imperial): 0.26"
• Mounting Hole Diameter D Min. (Metric): 6.5 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.03 - 0.24"
• Panel Thickness (Metric): 0.75 - 6.0 mm
• Panel Thickness Max. (Imperial): 0.24"
• Panel Thickness Max. (Metric): 6.0 mm
• Panel Thickness Min. (Imperial): 0.03"
• Panel Thickness Min. (Metric): 0.75 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-80001
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Thickness T (Imperial): 0.05"
• Thickness T (Metric): 1.2 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Weight (Lbs) per 1 Content Unit without Packaging: 0.0043651527876
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• Width W2 (Imperial): 0.35"
• Width W2 (Metric): 9.0 mm
• Width W3 (Imperial): 0.2"
• Width W3 (Metric): 5.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306261650

Overview

HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
