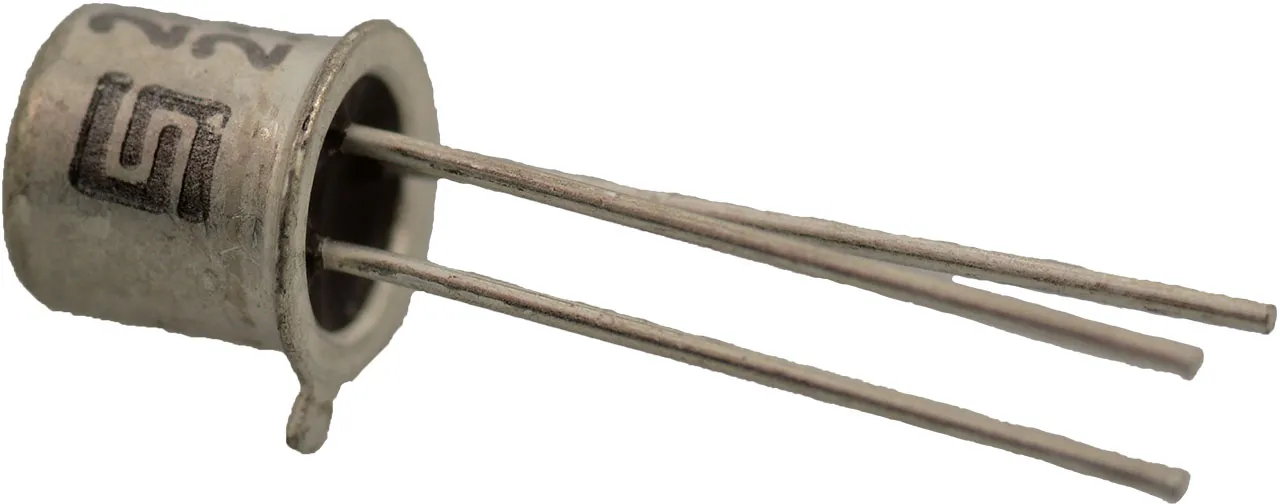

2N2222A NPN Switching Transistor 40V 800mA TO-18

This NPN switching transistor in a metal TO-18 package is designed for high speed switching applications at collector current up to 500 mA and feature useful current gain over a wide range of collector current, low leakage currents and low saturation voltage. Its PNP compliment is 2N2907A.

Features

  • High current: 800 mA (max.)
  • Low voltage: 40V (max.)

For more about Transistors, click here.

Product Identification

Product Type:Bipolar Small Signal
Manufacturer Series:2N2222

Dimensions & Appearance

Mounting:Through Hole
Height:5.30 mm
Width:5.80 mm
Length:5.80 mm

Operating conditions

Maximum Operating Temperature:150°C
Minimum Operating Temperature:-65°C

Packaging

Packaging:Bulk
Package:TO-18-3

Output

Output Power:500mW

Features

Number of Elements per Chip:1
Pins:3
Transistor Polarity:NPN
Maximum Collector Emitter Voltage:40 V
Maximum Emitter Base Voltage:6V
Maximum Collector Base Voltage:75 V
Maximum Operating Frequency:250MHz
Minimum DC Current Gain:100 @ .15A
Maximum Base Emitter Saturation Voltage:2.6V @ 50mA @ 500mA
Maximum Collector Current:800mA
Maximum Collector Emitter Saturation Voltage:1.6V @ 50mA @ 500mA
Configuration:Single
Power Dissipation:500mW
,
