2-Core Balanced Cable Spiral Shield 24 AWG 500 Foot Spool B100

Features

  • Capacitance Between Conductors: ≦ 14.3pF/ft
  • Capacitance Between Conductors and Shield: ≦ 24.4pF/ft
  • Conductor DC Resistance: 0.075 ohm/m +/- 5%
  • Shield DC Resistance: 0.025 ohm/m +/- 1%
  • Voltage Breakdown: 300 V
  • Insulation: PE
  • Shield: Spiraled 60/0.12 BC OFC
  • Jacket: PVC
  • Conductors: 20/0.12mm BC OFC

Overview

Performance Series bulk mic cable perfect for the DIYer looking to make their own cables.

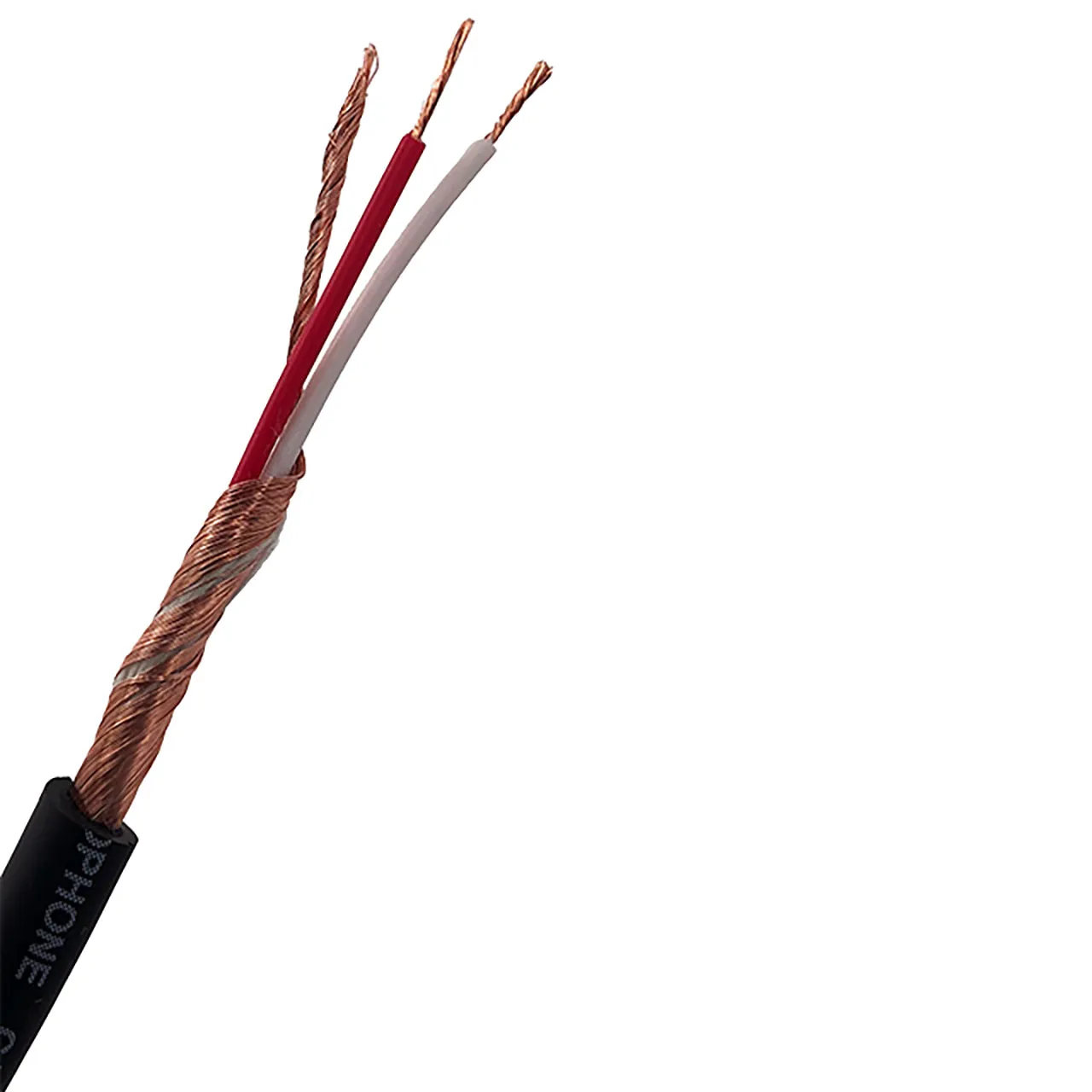

The Performance Series XLR cable is made using two stranded, 24 AWG, OFC conductors in a tight-pitch twisted pair configuration. The use of PE insulation helps reduce the capacitance while a spiral copper shield provides great EMI and noise rejection. To top it all off, the sturdy PVC jacket is designed to take the abuse of any environment.

NOTE: Not rated for in-wall use.

Applications

  • Pre-wiring of modular truss or sound systems for quick set up
  • Custom Shop Cable
  • Custom lengths for permanent installations
  • DIY cables for personal use

,
