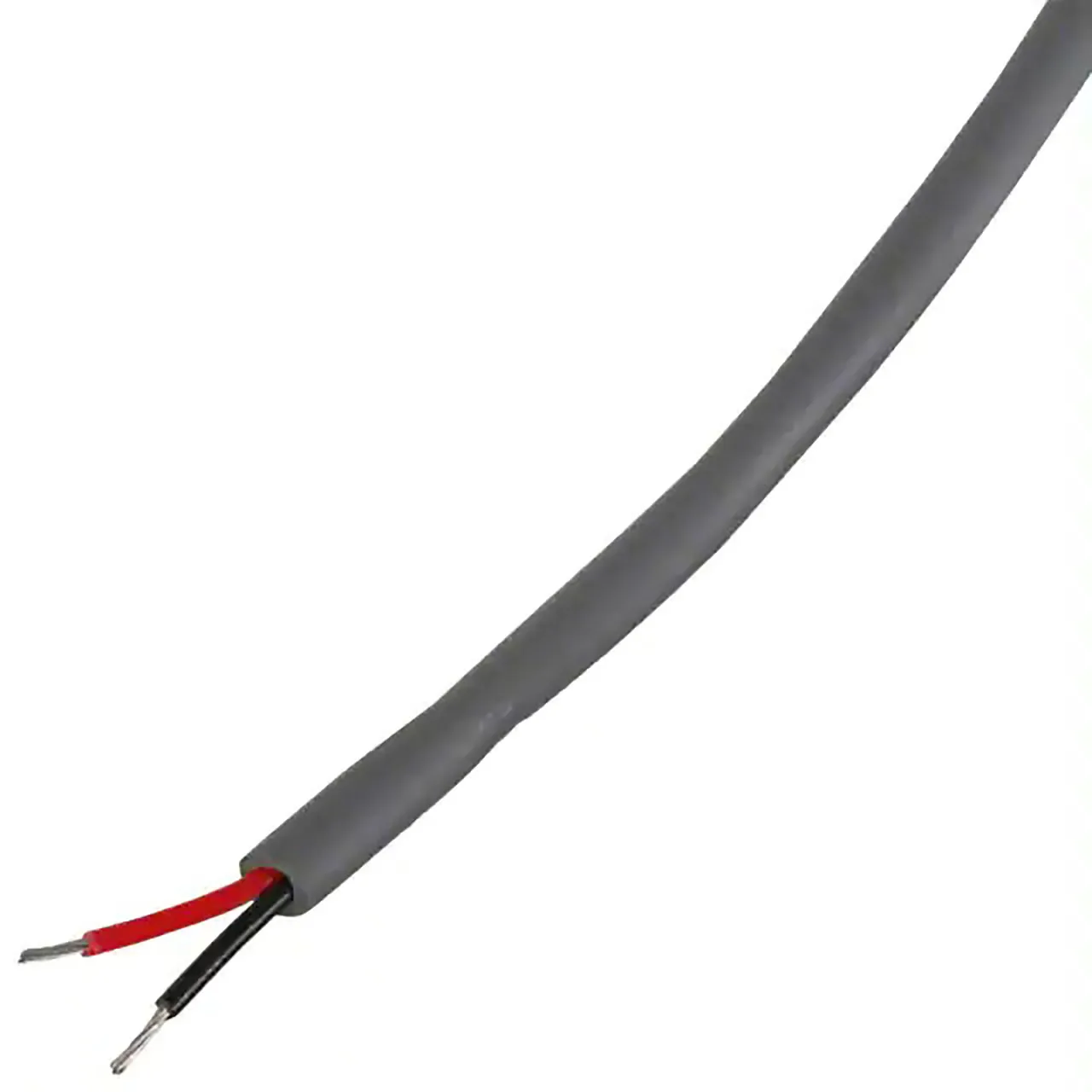

2-Conductor 22AWG Unshielded Multi-Conductor Cable 100-Foot Reel UL2464

Features:

• Unshielded multi-conductors with annealed stranded tin copper conductor
• 2 conductors
• Colors: Black, Red
• 22 AWG unshielded wire (7 x 30 strand)
• Gray PVC jacket
• Insulation Material: PVC
• Insulation Thickness: 0.010"
• Rated 300V Temp: 80°C (UL 2464); 75°C (CM)
• Nominal outer diameter: 0.161"
• UL 2464, CM, CSA, FT1, UL VW-1

Overview

Multi-conductor cable contains individually jacketed conductors within an overall PVC jacket. This model features two 22 AWG conductors and is unshielded.
