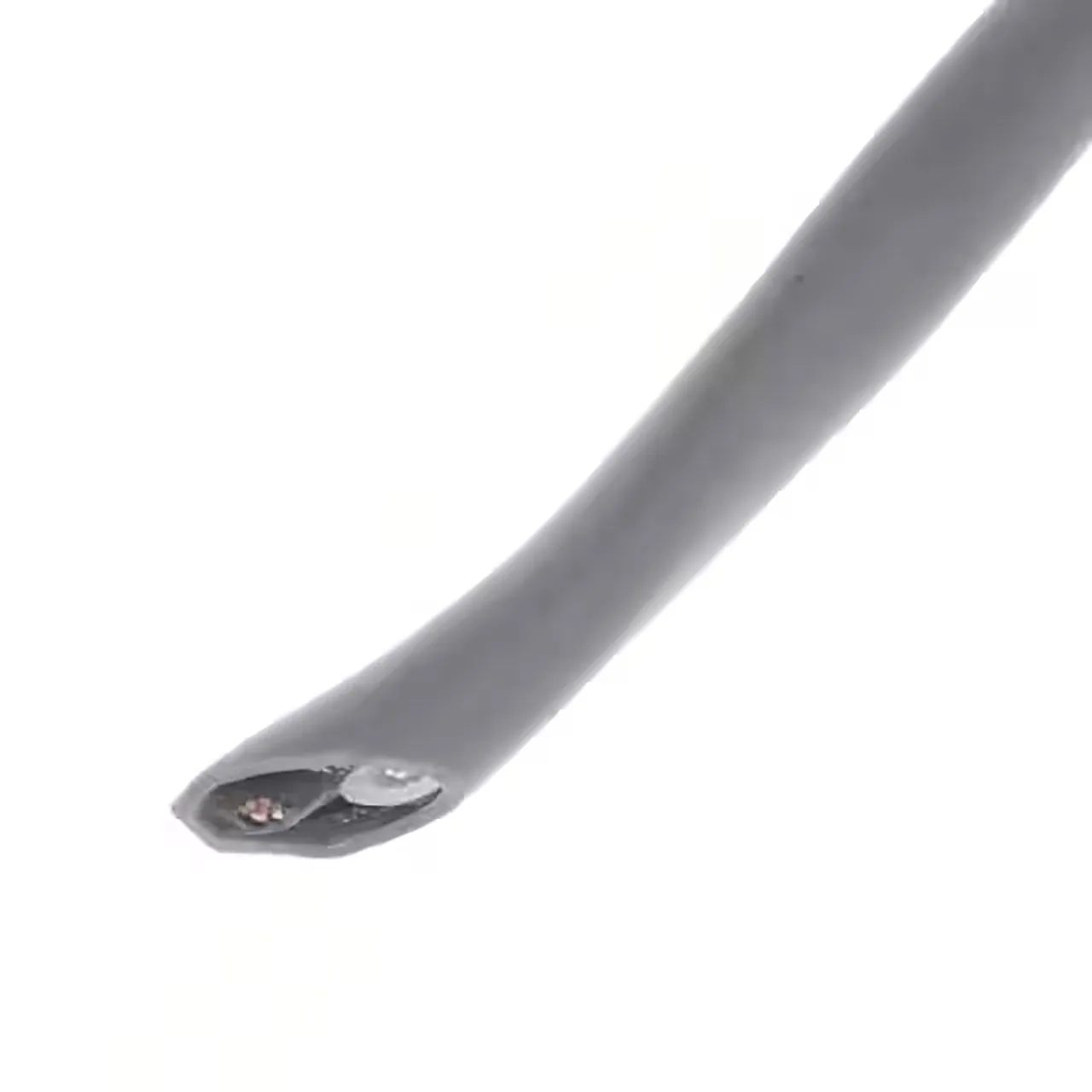

2-Conductor 20AWG Shielded Multi-Conductor Cable 100-Foot Reel

Features:

• Annealed stranded tin copper conductors
• 100% aluminum foil coverage with 25% overlap, PE insulation with annealed stranded tin copper (ASTM B-33) drain wire
• 2 conductors
• Colors: Black, White
• 20 AWG unshielded wire (7 x 28 strand)
• Gray PVC jacket
• Insulation Material: Polyethylene
• Insulation Thickness: 0.016"
• CM2/CM: -20°C to 75°C 300V; 2093: -20°C to 60°C 600V; 2094: -20°C to 60°C 300V; 20253: -20°C to 80°C 600V
• Nominal outer diameter: 0.200"
• CL2/CM, 2093, 2094, 20253
• Reel length: 100 feet

Overview

Multi-conductor cable contains individually jacketed conductors within an overall PVC jacket. This model features two 20 AWG conductors and is shielded with 100% aluminum foil coverage with 25% overlap with an annealed stranded tin copper drain wire. It is ideal for data transmission, broadcast, audio and sound.
