2-Axis Joystick

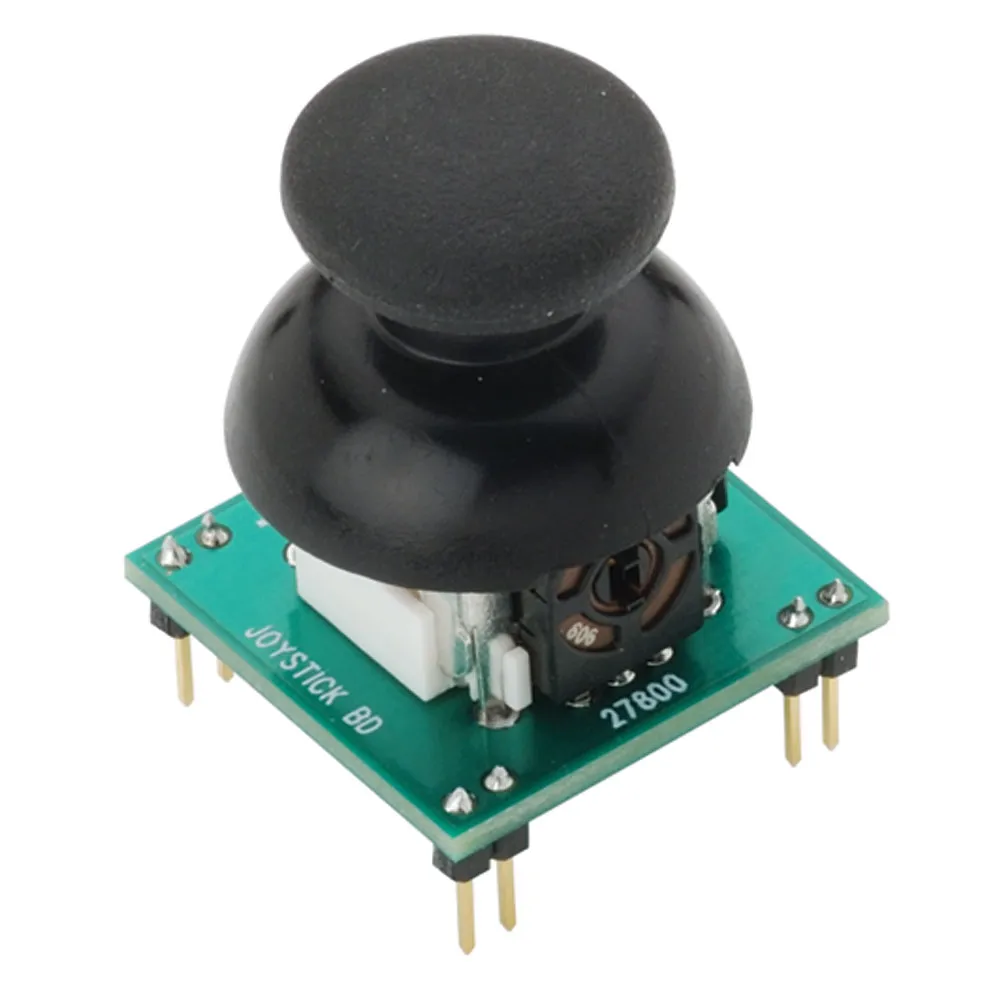

This 2-axis Joystick can be used to add analog input to your next project. The 2-axis Joystick contains two independent potentiometers (one per axis) for reporting the joystick's position, with wiring options for voltage or resistance outputs. The modular form-factor allows you to plug the 2-Axis Joystick directly into a breadboard for easy prototyping. The 2-Axis Joystick includes spring auto return to center and a comfortable cup-type knob. Click over to the KickStart Guide to see how to use the joystick, complete with wiring diagrams and sample code for the BASIC Stamp, Propeller, and Arduino.

Features

• Easy breadboard connection
• Two independent 10K potentiometers with common ground
• Spring auto return to center
• Comfortable cup-type knob

Specifications

• Power: 0.01W
• Interface: Dual 10K potentiometers with common ground
• Dimensions: 1.64 x 1.2 x 1.1 in (41.67 x 30.54 x 27.7 mm)
• Operating temp range: +32°F to +158°F (0°C to +70°C)

Downloads & Resources

• 2-Axis Joystick Bill of Materials
• 2-Axis Joystick Layout Files
• 2-Axis Joystick Schematic File
• 2-Axis BASIC Stamp RCTIME Example Code
• 2-Axis Joystick ASC Example Code
• 2-Axis Joystick Schematic PDF
• 2-Axis Joystick Product Documentation
• Joystick - Propeller C Tutorial (Learn.Parallax)
• Joystick KickStart - PBASIC, Arduino, Propeller Spin examples (Learn.Parallax)
• Joystick-Controlled ActivityBot (Learn.Parallax)
