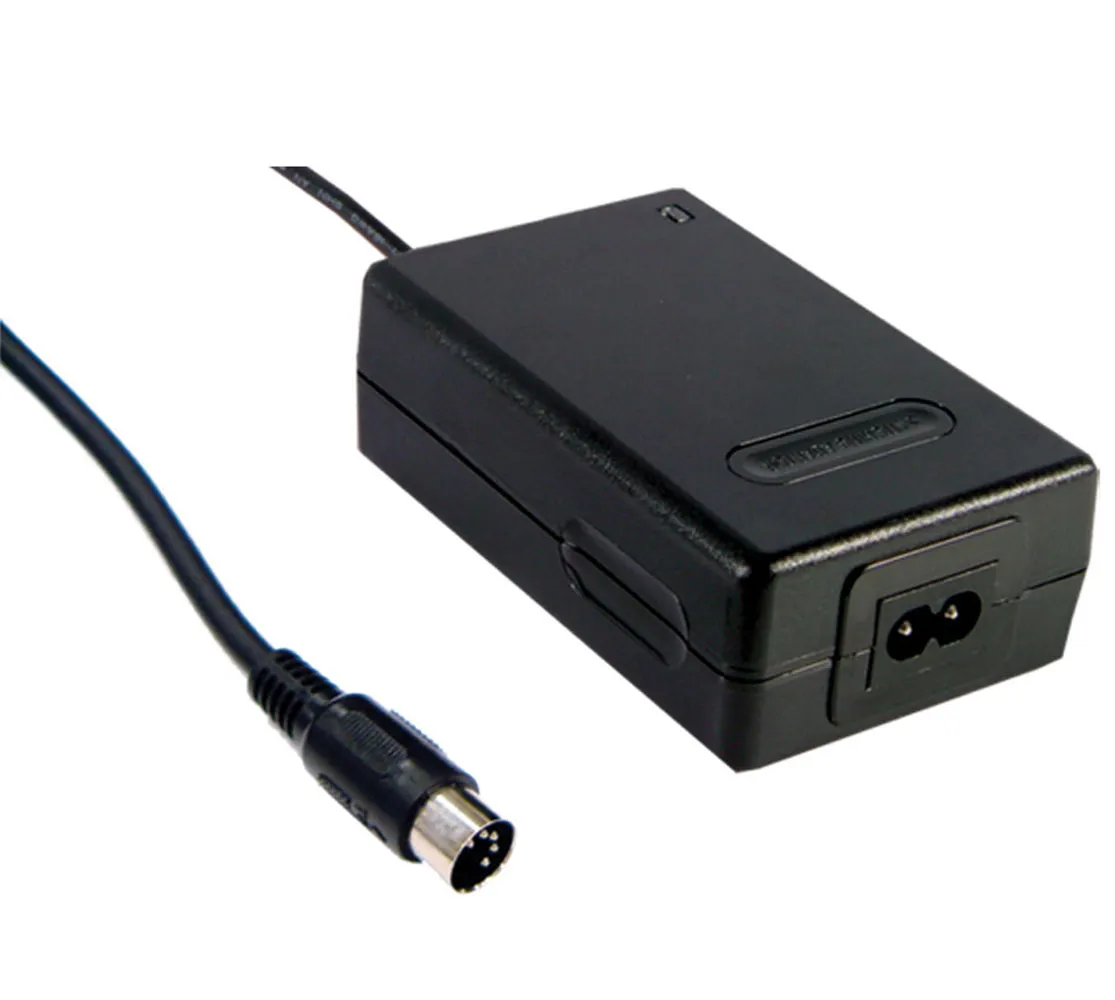

28.5 Watt 5V/12V/-5V Triple Output Industrial Table Top Power Supply

CH 1: 5 VDC @ 2.5 Amps
CH 2: 12 VDC @ 1.2 Amps
CH 3: -5 VDC @ 0.3 Amps

Specifications

  • Universal AC input / full range: 90 to 264 VAC @ 47-63 Hz
  • Line regulation: ±1.0%
  • 2 pole AC inlet IEC320-C8 (AC cord is not included, we recommend our 2-conductor AC power cord P/N: 189587)
  • Output plug: DIN-5 (R1B)
  • No load power consumption <0.3W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE
  • Class II power supply (without earth pin)
  • Protections: Short circuit, overload, over voltage
  • Fully enclosed plastic case
  • -20°C to +70°C working temperature
  • LED indicator for power on
  • 3 year warranty

Applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipment

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:GP25B

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, FCC, TUV, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.42 in.
Width:2.64 in.
Length:4.23 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.8 A

Output

Output Voltage (Channel 3):-5 VDC
Number of Outputs:3
Output Current (Channel 3):0.3 A
Output Voltage (Channel 2):12 VDC
Output Current (Channel 2):1.2 A
Output Voltage (Channel 1):5 VDC
Additional Output Voltages (VDC): -5 VDC, 12 VDC
Output Connector Diameters:DIN-5 Male
Output Connector Type:DIN-5 Male
Output Voltage:5 VDC
Output Current (Channel 1):2.5 A
Output Current:2.50 A

Features

Polarity:N/A
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Minimum Isolation Voltage:4242V
IP Rating:N/A
Efficiency:80%
Power Rating:28.5 W
,
