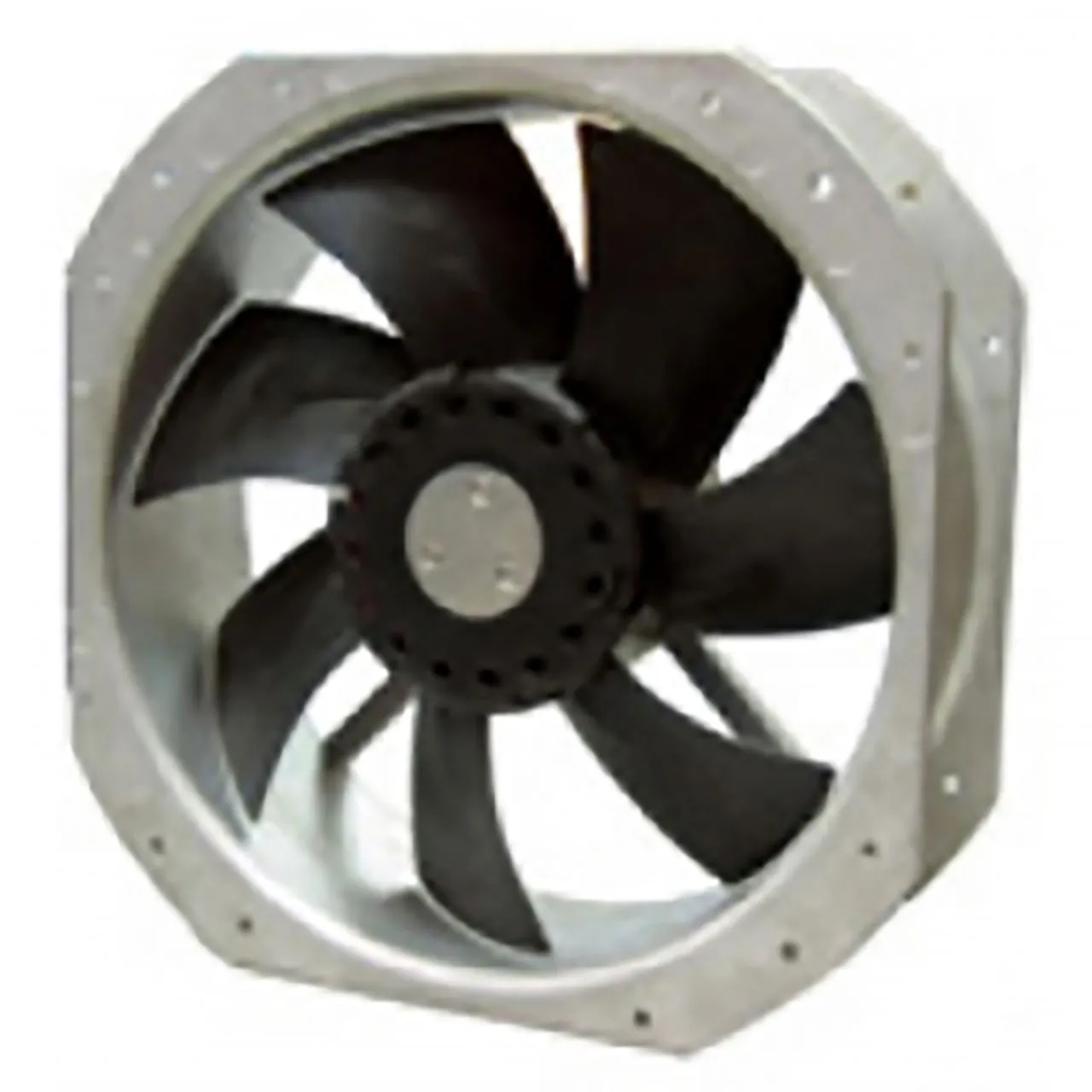

280 mm x 280 mm x 89 mm Tube Axial Fan 24 VDC Ball Bearing 1050CFM 56dBA 12" Wires
Features
- Voltage Rating: 24 VDC
- Height: 280 mm
- Width: 280 mm
- Depth: 89 mm
- Air Flow (CFM): 1050
- Bearing: Ball
- Current Rating: 2450 mA
- Power Rating: 60 W
- Agency Approvals: UL, CUL, TUV, CE, UKCA
- Noise (dBA): 56
- Termination: 12" Wires
- Product Type: 280mm x 280mm DC Fan
- Speed: 2150 rpm
- Maximum Pressure: 0.65 in.
- Additional Features: Die Cast Aluminum Frame, PBT Impeller
- Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Overview
Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2150 rpm.
Product Identification
Additional Feature:Die Cast Aluminum Frame, PBT Impeller
Product Type:DC Fan
Compliance
Dimensions & Appearance
Depth:89 mm
Height:280 mm
Width:280 mm
Features
Bearing:Ball
Speed:2150 rpm
Motor Drive Type:Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Noise (dBA):56
Maximum Pressure:0.65 in.
Voltage Rating:24 VDC
Termination:12" Wires
Air Flow (CFM):1050
Power Rating:60 W
Current Rating:2450 mA
