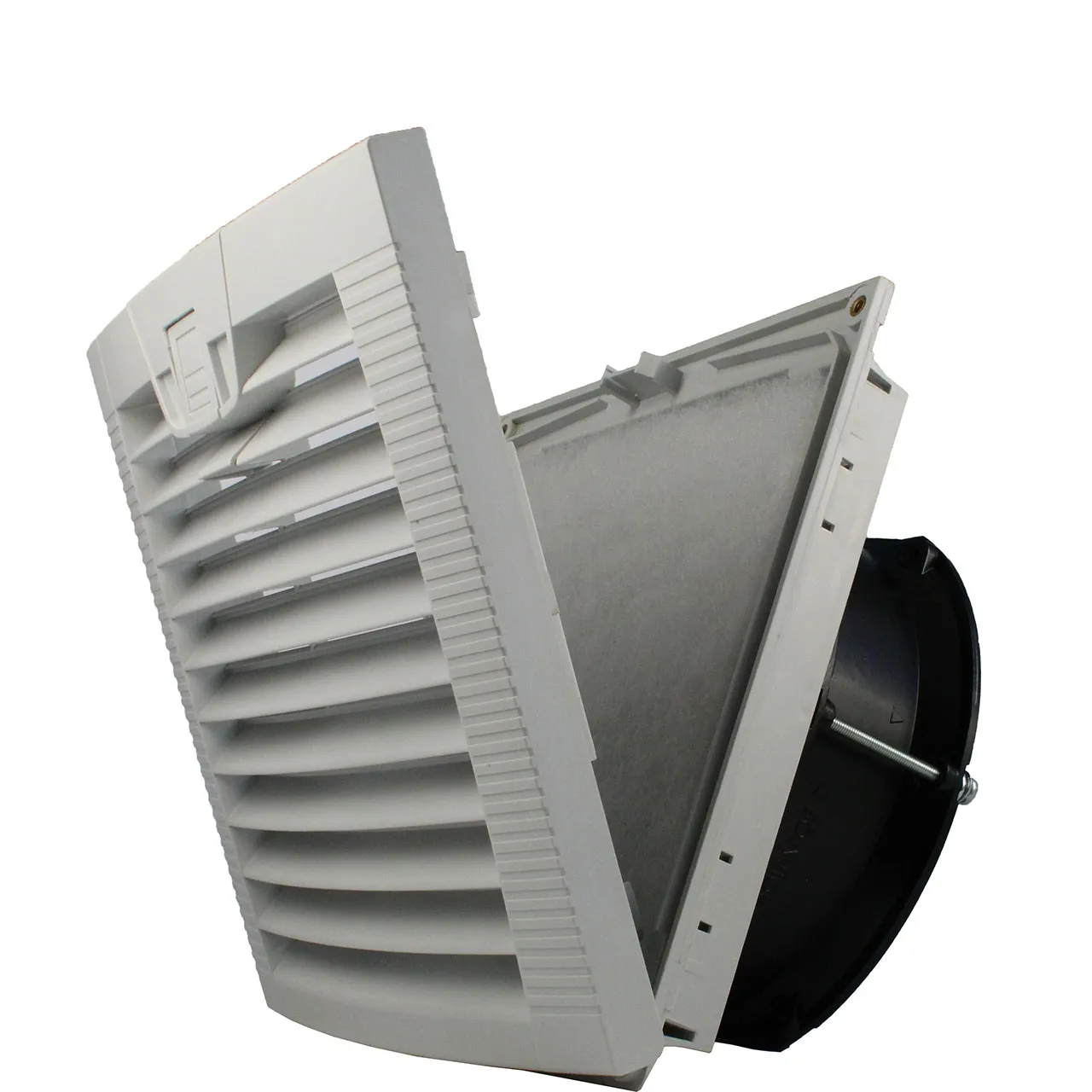

280 mm x 280 mm x 80 mm Tube Axial Fan 230 VAC Dual Ball Bearing 678CFM 70dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 280 mm
  • Width: 280 mm
  • Depth: 80 mm
  • Air Flow (CFM): 678
  • Bearing: Dual Ball
  • Current Rating: 820 mA
  • Power Rating: 158 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 70
  • Termination: Terminals
  • Product Type: Louvered Filter Fan Kit with Fan Installed
  • Speed: 2700 rpm
  • IP Rating: IP55
  • Maximum Pressure: 0.65 in.
  • Additional Features: Die Cast Aluminum Frame, Metal Impeller, Louvered Filter Kit, Class F Insulation
  • Motor Drive Type: Capacitor Drive, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 2700 rpm.

,
