280 mm x 280 mm x 124mm Tube Axial Fan 115 VAC Dual Ball Bearing 678CFM 70dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 280 mm
  • Width: 280 mm
  • Depth: 124mm
  • Air Flow (CFM): 678
  • Bearing: Dual Ball
  • Current Rating: 1500 mA
  • Power Rating: 148 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 70
  • Termination: Terminals

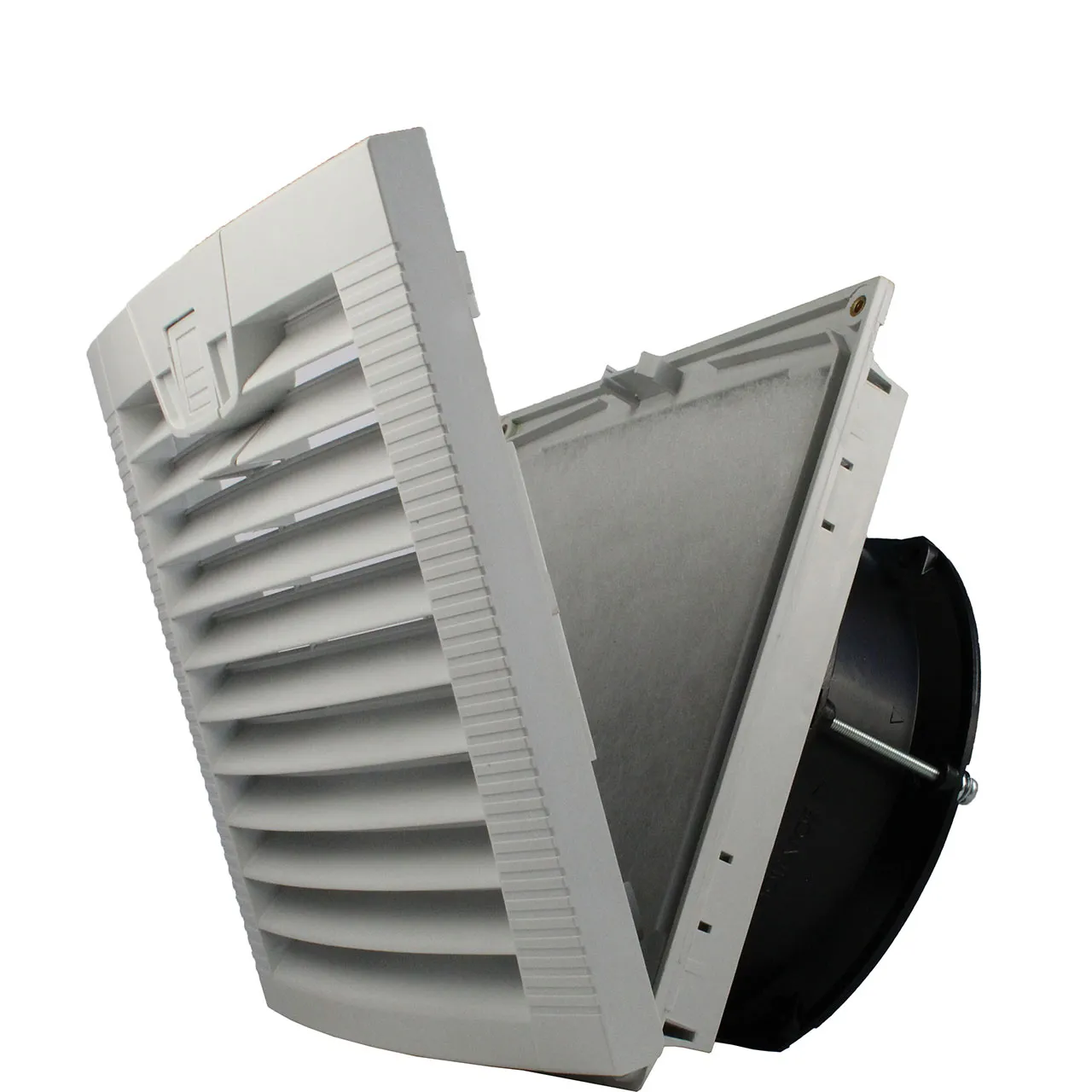

  • Product Type: Louvered Filter Fan Kit with Fan Installed
  • Speed: 2700 rpm
  • IP Rating: IP55
  • Maximum Pressure: 0.65 in.
  • Additional Features: Die Cast Aluminum Frame, Metal Impeller, Louvered Filter Kit, Class F Insulation
  • Motor Drive Type: Capacitor Drive, Thermally Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 2700 rpm.

Product Identification

Additional Feature:Die Cast Aluminum Frame, Metal Impeller, Louvered Filter Kit, Class F Insulation
Product Type:Louvered Filter Fan Kit with Fan Installed

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CUL, TUV, UL

Dimensions & Appearance

Depth:124mm
Height:280 mm
Width:280 mm

Features

Bearing:Dual Ball
IP Rating:IP55
Speed:2700 rpm
Motor Drive Type:Capacitor drive, Thermally Protected
Maximum Pressure:0.65 in.
Noise (dBA):70
Voltage Rating:115 VAC
Air Flow (CFM):678
Termination:Terminals
Power Rating:148 W
Current Rating:1500 mA
,
