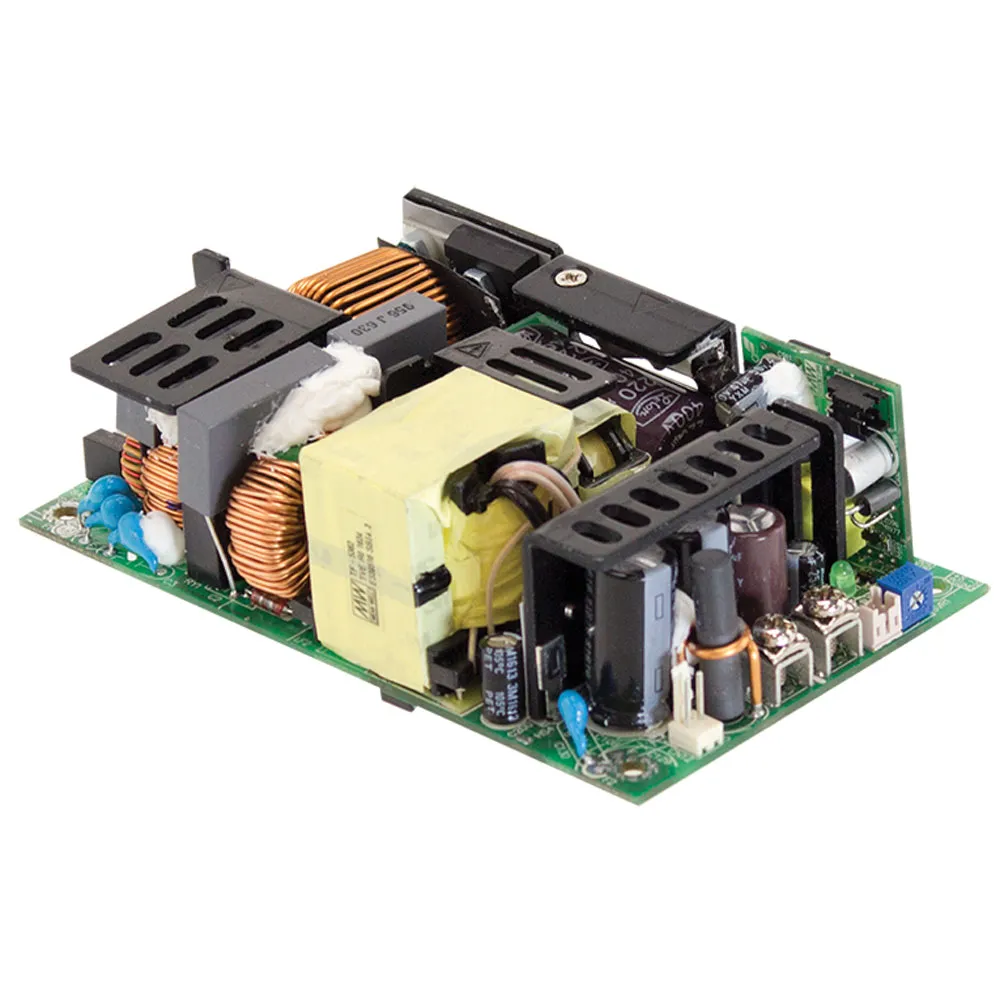

27V 9.3A 251W Green Industrial Open Frame Power Supply
27 Volts @ 9.3 Amps (Convection) / 14.9 Amps (25 CFM)Features
- Output voltage: 27 VDC
- Output current: 9.3 A (convection); 14.9 A (25 CFM fan)
- Rated power: 251 W (convection); 402.3 W (25 CFM fan)
- Universal input voltage: 80 to 264 VAC @ 47 to 63 Hz
- Line regulation: ±0.5%
- Load regulation: ±1%
- Efficiency: 93.5%
- 5" x 3" miniature size
- Built-in active PFC function
- EMI Class B for both Class I (with FG) and Class II (without FG) configuration
- 250W convection, 400W force air
- No load power consumption <0.5W
- Protections: Short circuit, overload, over voltage, over temperature
- Built-in 12V/0.5A fan supply, Standby 5V@1A with fan, 0.6A without fan
- Built-in remote sense function
- 3 year warranty
Applications
- Industrial automation machinery
- Industrial control systems
- Mechanical and electrical equipment
- Electronic instruments, equipment or apparatus
Product Identification
Manufacturer Series:EPP-400
Compliance
Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Open Frame
Height:0.38 in.
Width:3 in.
Length:5 in.
Operating conditions
Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:4.2 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:27 VDC
Additional Output Voltages (VDC):N/A
Output Current:9.30 A
Features
PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:93.5%
Power Rating:251.1 W
