277V AC Surface Mount Surge Protection Device MOV-GSG 385V MCOV 10kA IMAX

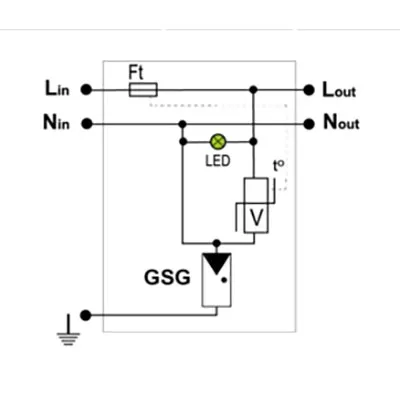

This surface mount AC surge protection device (SPD) designed for 277 Volt AC 1-Phase Power circuits and uses MOV-GSG technology. It features 10kA surge current rating and 5kA IN and is UL1449 Type 2 listed. It has a LED indicators and comes with a 10-year warranty.

Specifications

• Max Load Current (IL): 5 A
• Nominal Discharge Current (In): 5 kA
• Power SPD Type: UL1449 Type 2 Listed
• Volts: 277 V
• AC voltage systems
• Phase: 1
• Amps: 5
• Ambient Temperature: -40°C to +85°C
• Modes: L-N, L-G, N-G
• VPR (V): 1500 / 1500 / 1200
• MCOV (V): 385 / 385 / 255
• IN: 5 kA
• SCCR: 18 kA
• IMAX: 10 kA
• Technology: MOV-GSG
• Network Configuration: 2 pole, 2W+G, Single/Spilt Phase
• Connection Method: Screw Terminal (4 to 10 AWG)
• Mounting: Flange Mount
• Material: Thermoplastic UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Fail-Safe Behavior: Disconnection via fuse-link
• Real-Time Diagnostics: LED indicator
• Certification: UL Listed, IMQ, TUV
• UL Standard: UL 1449 5th Edition
• UL Category: VZCA2, VZCA8
• Standards: IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
• ANSI/IEEE C62.41: Category C 20kV/10kA
• ANSI/IEEE C136.2: Extreme Category 10kV/5kA
