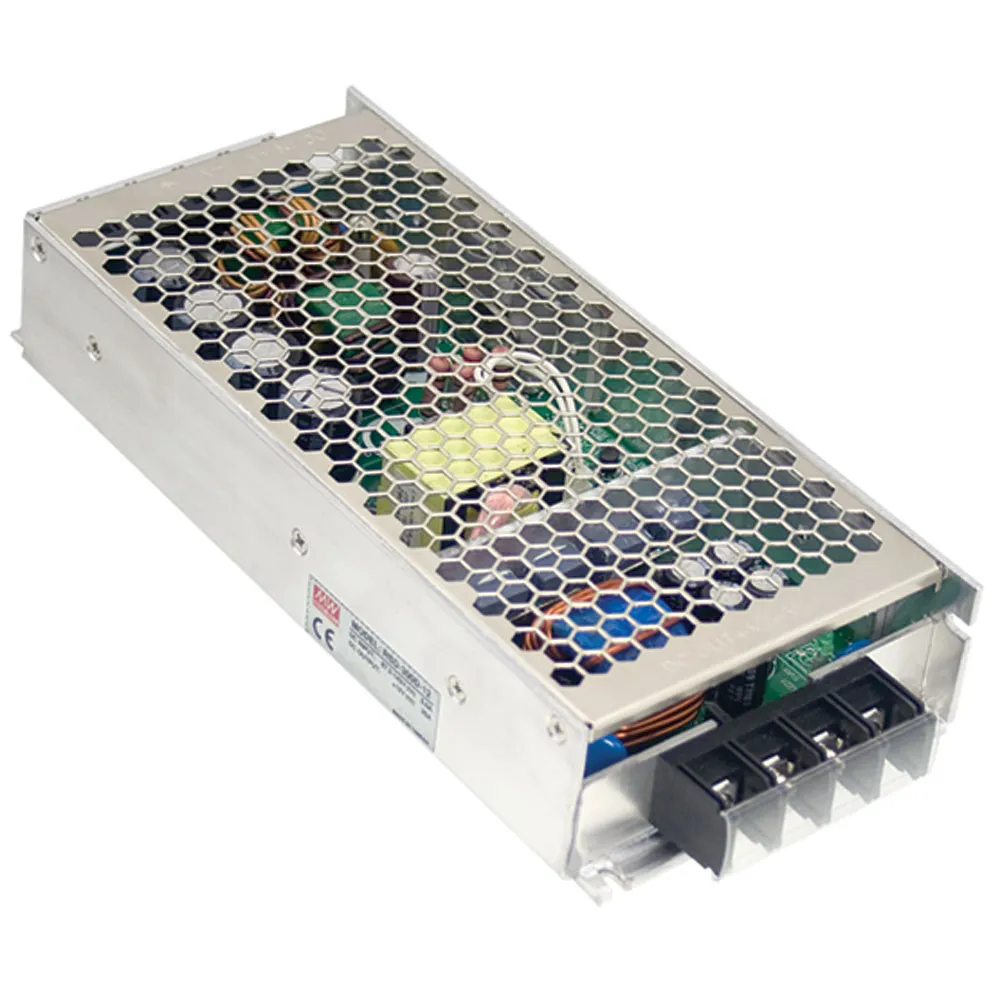

270 Watt 12V 22.5A Railway Single Output DC-DC Converter Fast 30A 32V Fuse
Features:
- Compliance to EN50155 and EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature/ Input reverse polarity
- 4000 VDC I/O isolation
- Half encapsulated
- Cooling by free air convection
- Built-in constant current limiting circuit
- 1U low profile 40mm
- All using 105° long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 year warranty
Product Identification
Product Type:Railway Single Output DC to DC Converter SMPS
Manufacturer Series:RSD-300
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, UL, UL, CUL, CB, CE, EN, EAC
Dimensions & Appearance
Height:1.6 in.
Width:3.8 in.
Length:8.5 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Packaging
Package:Railway Enclosed
Input
Input Voltage:24 VDC
Input Voltage Range:16.8 VDC to 31.2 VDC
Maximum Input Current:14.6 A
Output
Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:22.50 A
Features
Efficiency:89.5%
Power Rating:270 W
