26.5GHz Performance-Series Signal Analzyer

Features

• Freq: 9 kHz-26.5 GHz, RBW: 1 Hz-3 MHz (10% step), 4, 5, 6, 8 MHz, DANL: -163 dBm/Hz, Phase noise: -107 dBc/Hz, Full Amplitude Accuracy: <0.7 dB, Display: 15.6 in touch screen, USB/LAN, SCPI
• Display Size: 15.6 in.
• Warranty: 3 years
• Interface: USB, LAN, 10MHz In/Out, Ext Ref In, Trg In, HDMI,
• Prop65: No
• Reach: No

Overview

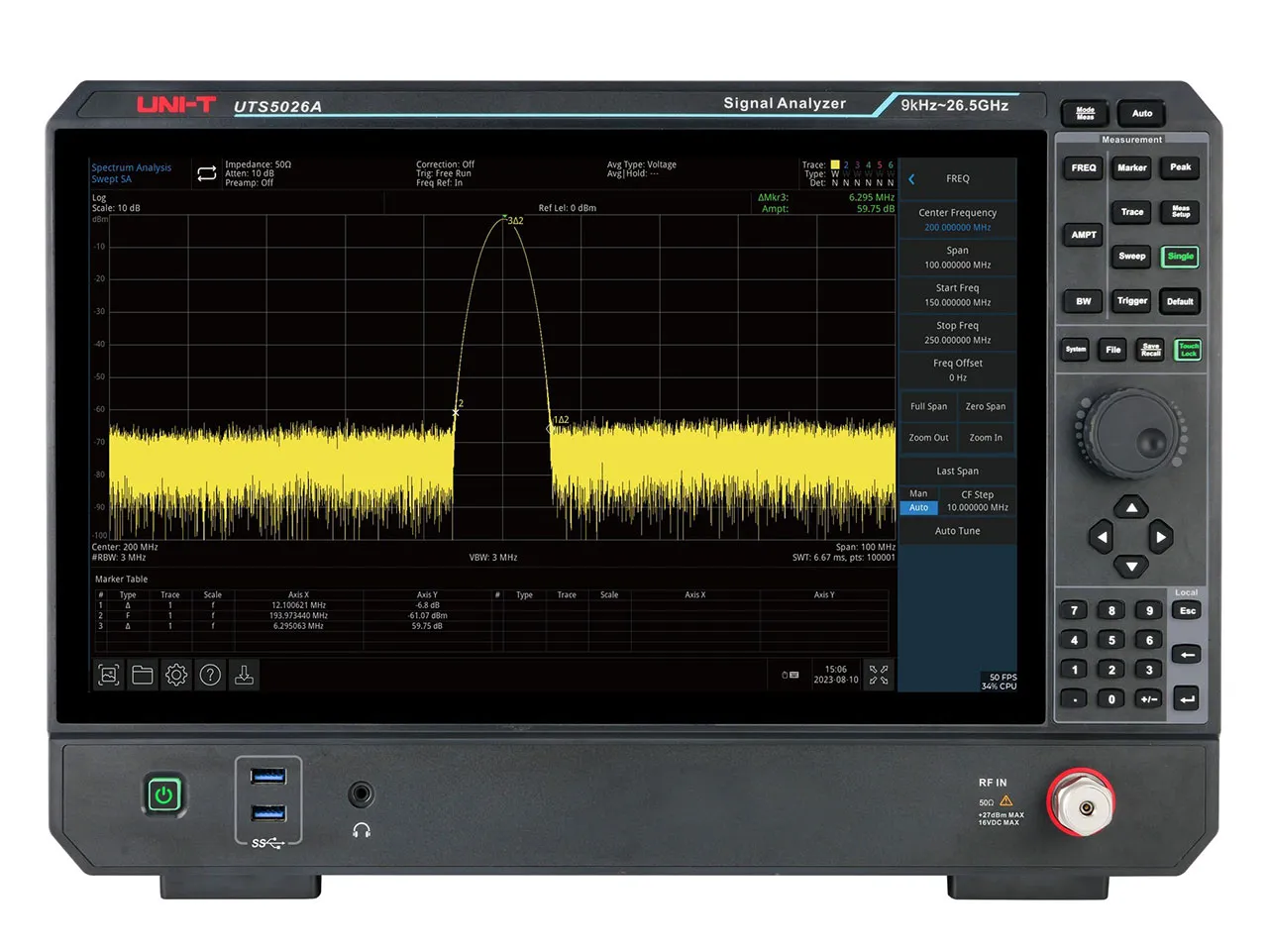

The UNI-Trend UTS5026A Performance-Series Signal Analyzer is an affordable 26.5GHz signal analyzer that's ideal for microwave signal analysis, spurious searches, and noise-power measurements. The UTS5026A is a versatile tool for research, development, and troubleshooting in RF and microwave applications. Upgrade your bench and gain a valuable instrument for education, pre-compliance testing, and legacy signal analyzer replacement.

Technical Specifications

• Accessories Universal Accessories: Power cord, USB2.0 printing cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• T Screen: Yes
• Frequency Range: 9kHz-26.5GHz
• RBW: 1Hz-3MHz (10% step), 4, 5, 6, 8MHz
• DANL: -163dBm/Hz
• Tracking Generator: Not Available
• Sweep Points: 100,001
• Traces: 6
• Phase Noise: -107 dBc/Hz @10kHz
